Appendix

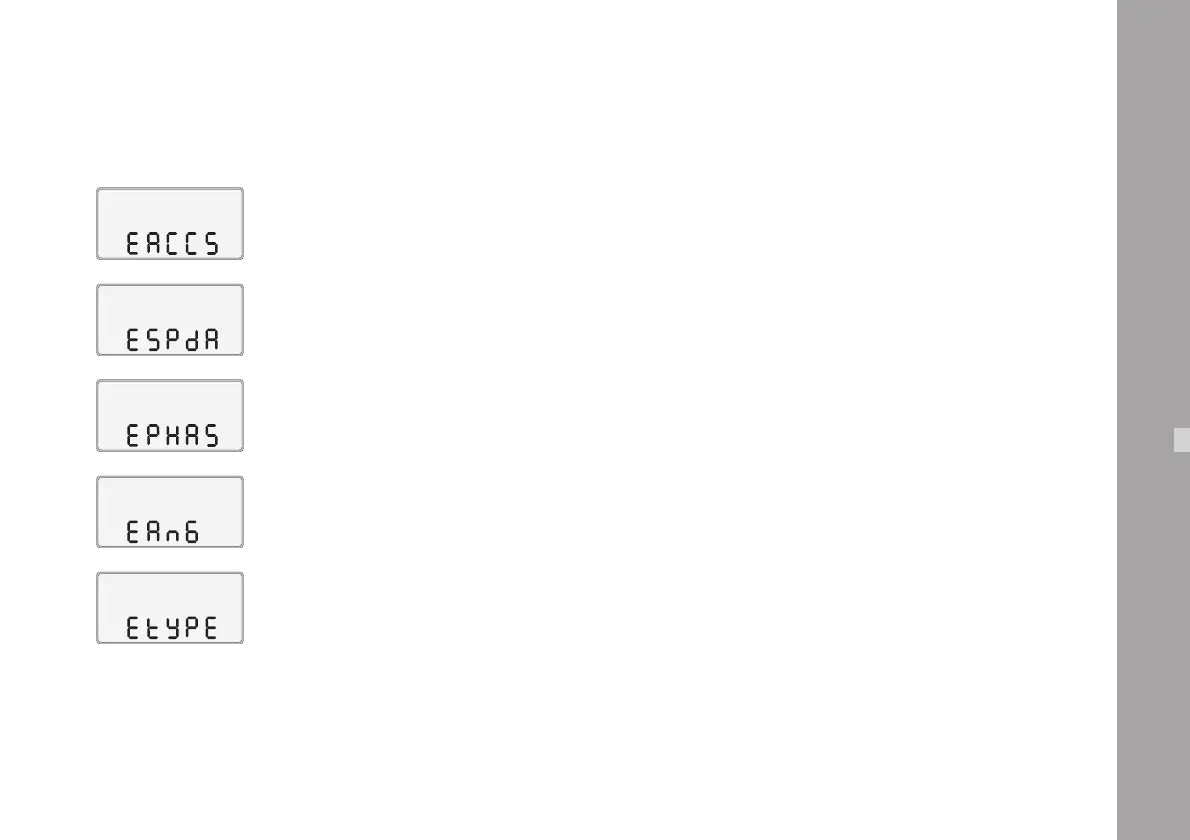

Acceleration limit shutter
Speed limit adjustable sector
Phase Offset between Shutter and Transport
bigger than +/-2000 counts
Note: When the external motion control computer
cammands the camera a shutter angle bigger
than 180° or smaller than 11,2° the camera
will display a flashing shutter angle reading to
indicate that the actual position reference to the
step&direction inputs might be lost.
Note: When the camera exits the motion control
mode because of a fault a permanent beep will
occur until the camera is restarted or the error
was checked in the motion control error menu.
Adjustable shutter overspeed or overacceleration
Magazine type not alowed in motion control mode
