• Insert the film through the left slit on the magazine throat
assembly from the inside ➪ photo.
Do not catch the film.
• With your free hand, turn the drive gear counter-clockwise
while carefully pushing the film through until both perfo-
ration holes are picked up simultaneously by the sprockets.
• Keep turning the gear until the film has been transported
through the throat assembly.

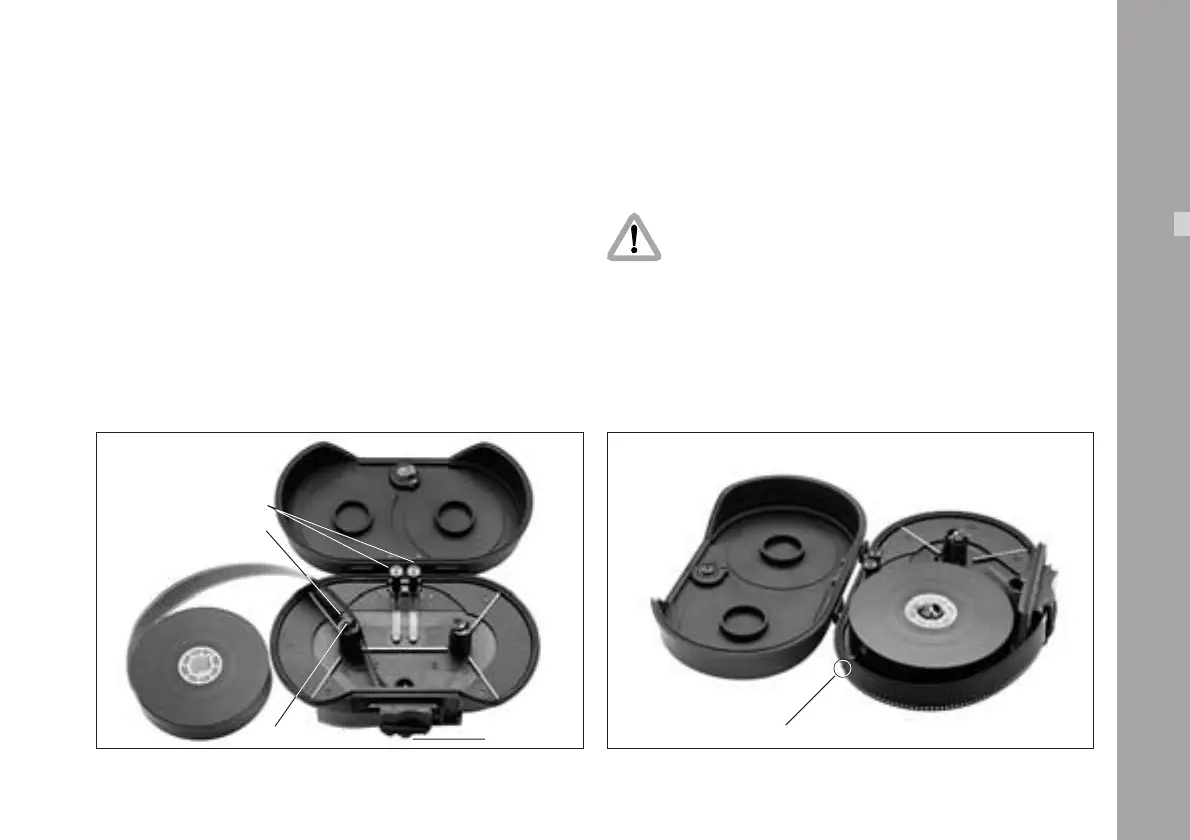

• Flip up the hinged locking clip on the feed shaft ➪ photo.
• Place the film roll on the feed shaft, ensuring that the
feed shaft catch engages the slot on the plastic core.
• Press down the hinged locking clip on the feed shaft.
• By turning the drive gear counter-clockwise, transport the
film further until it reaches to the loop length marking
➪ photo.
Ensure that the film is lying flat against the
outside of the magazine housing.
Magazines
roller arms
feed shaft
drive gear loop length markinghinged locking clip
