30
• Without changing the length, thread the film into the right
film channel.
Do not catch the film.
• By again turning the drive gear counter-clockwise, trans-
port the film inside the magazine.

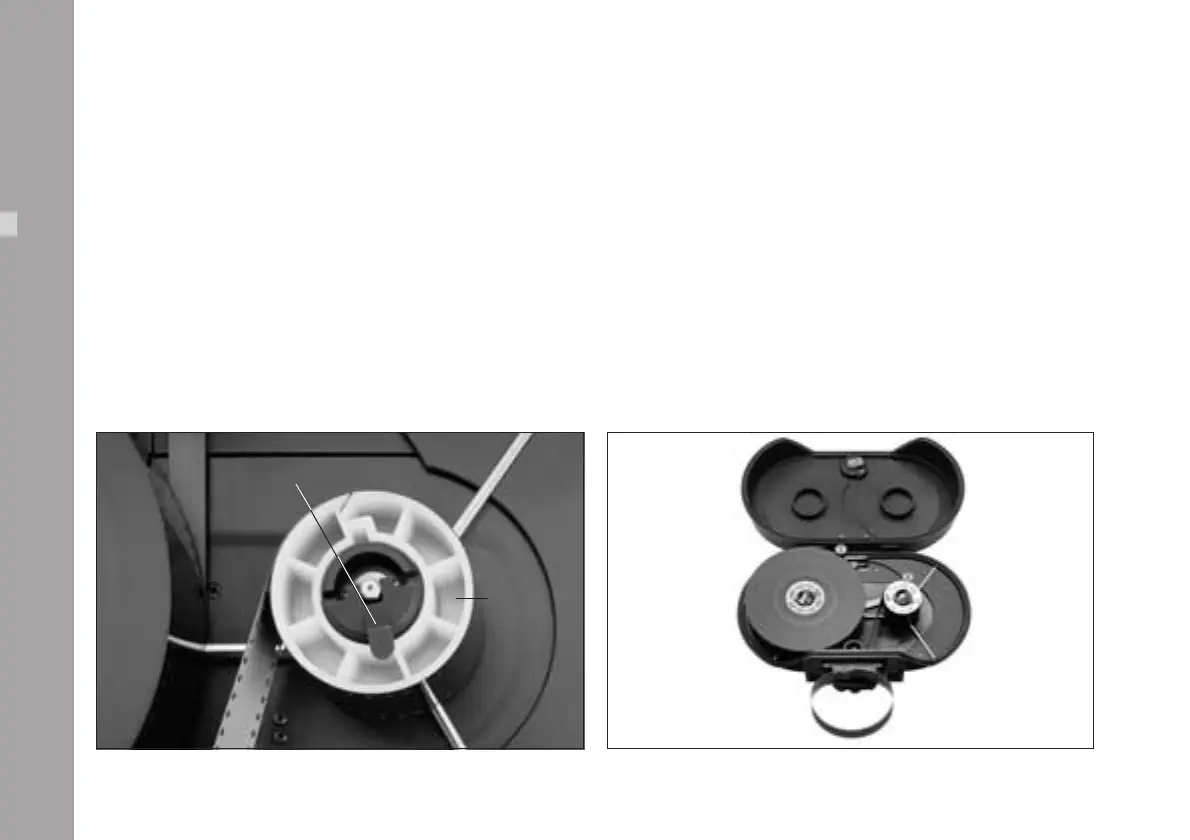

• Flip up the hinged locking clip on the take-up shaft
➪ photo.
• Place an empty film core on the take-up shaft. The slit must
point in the direction of operation. Ensure that the take-up
shaft catch engages the slot on the plastic core.
• Press down the hinged locking clip on the take-up shaft.
• Hang the head of the film into the film core and bend
over ➪ photo.
The bent film head should not stick out of the film core
as this could cause unbalance.
Note: If the film head has been bent over, the film head
must not be pulled through the throat assembly
during reverse operation.
• Wind the film on at least one revolution until it is certain
that the film is firmly seated on the film core.
• Check that the film is being taken up perpendicular to
the shaft ➪ photo.
Magazines
hinged locking clip
film core
