The Eyepiece
Removing the Eyepiece
• Hold the eyepiece with one hand and with the other turn
the knurled ring ➪ photo towards the “OPEN” position
as far as it will go.
• Remove the eyepiece ➪ photo.
Attaching the Eyepiece
• Ensure that the knurled ring is turned to the “OPEN”
position.
• Position the eyepiece on the viewfinder.
• Turn the knurled ring ➪ photo towards the “LOCK”
position.
• Check that the eyepiece is correctly seated.
Adjusting the Diopter

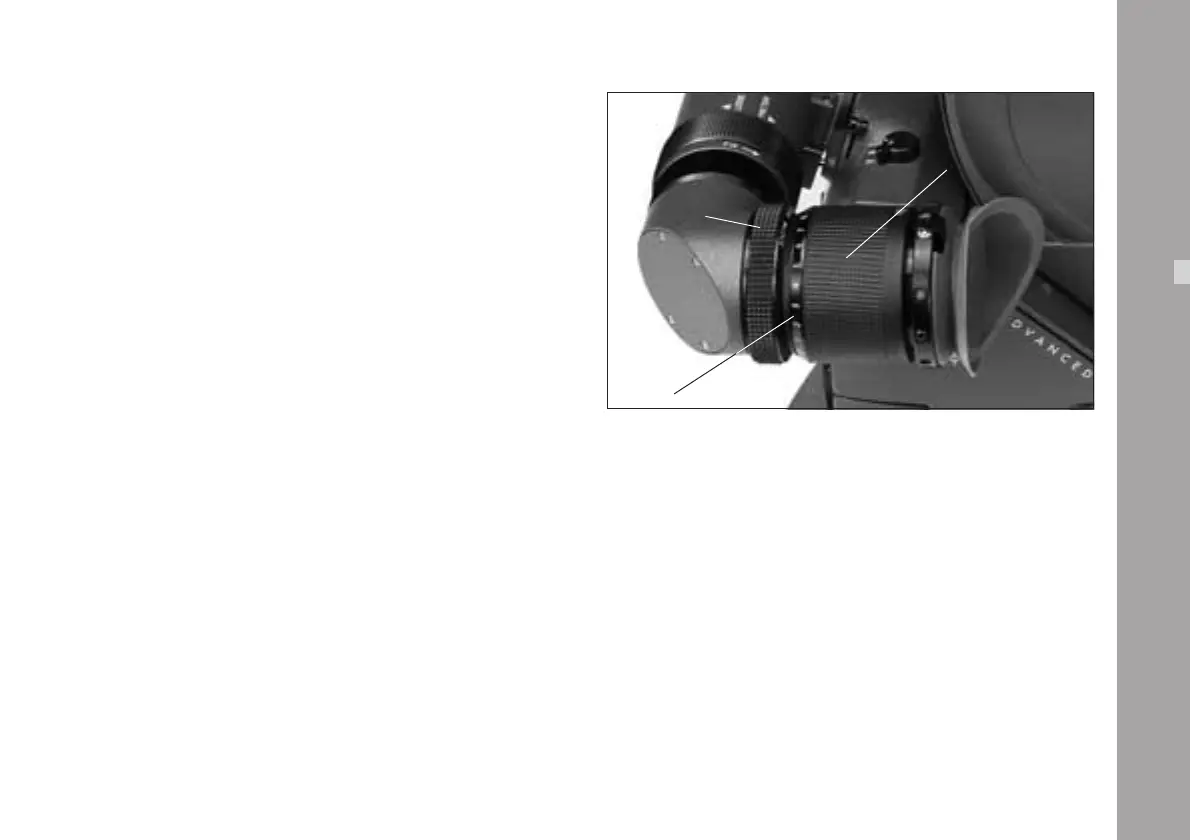

The diopter compensation is fitted with a scale ➪ photo of
1 to 12. Position “6” is normal focus.
• To adjust, turn the ring right/left until the ground glass
markings are totally in focus.
Optics
knurled ring
scale
eyepiece
