Adjusting the Viewfinder
Turning the Eyepiece
The eyepiece can be rotated 360° around the viewfinder
arm. The eyepiece is held in adjusted position by friction.
• To set friction, turn the knurled ring ➪ photo right/left
until the desired friction has been reached.
Swivelling the Viewfinder Arm
The viewfinder arm can be swivelled approx. 270° left to
right. On the left side of the camera the viewfinder arm locks
into the horizontal position. The viewfinder arm friction can
be altered if necessary by turning the Allen screw ➪ photo.
• To adjust the viewfinder arm, release the locking
mechanism by depressing the unlocking key ➪ photo.
• Turn the viewfinder arm to the desired position.
Extending the Viewfinder Arm
The viewfinder arm can be telescoped continuously by
approx. 50 mm.
• Turn the knurled ring ➪ photo towards the “LOOSE”
position.
• Pull the viewfinder arm ➪ photo out to the desired
length.
• Retighten the knurled ring.
Optics

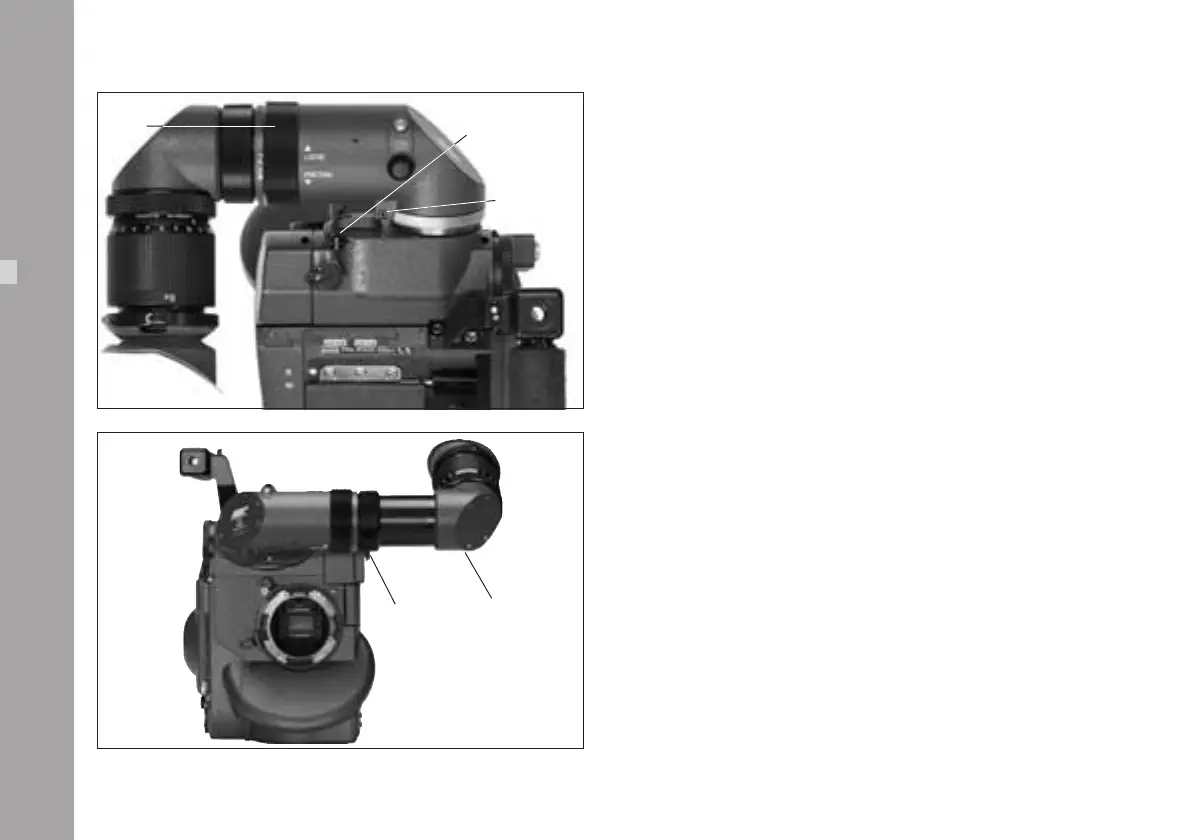

Allen screw
knurled
ring
unlocking key
knurled ring viewfinder arm
