112

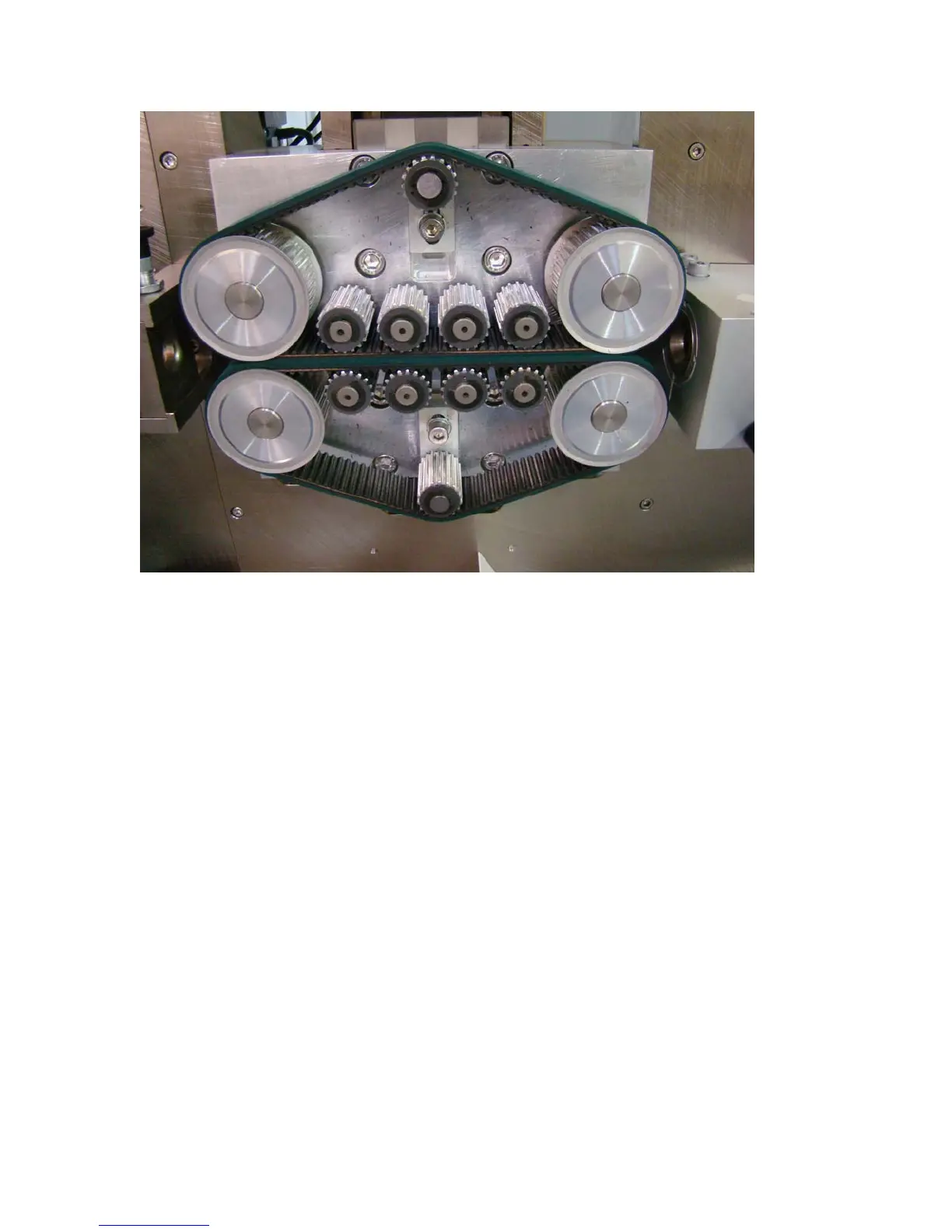

Wire feed belt. Make sure the collars on all 4 pulleys are tight.
3. You may need to increase the Feed belt pressure. If the problem is occurring on the tail side you may
need to reduce the outfeed closure stop. See section 1 for details on these two settings.
WIRE LENGTH NOT CONSISTANT
1. In the wire properties screen make sure the Slip Sensitivity is set for a value of 1 or greater. A setting of
0 disables the wire measuring encoder.
2.
Check if lengths are consistent without stripping. If they are, the variation is caused by improper strip
setting. See "Wire Not Stripping" for solutions.
3. Calibrate wire length using wire length calibration procedure.
4. Increase feed roller pressure.
5. Check for proper prefeeding. The wire should be fed into the CS-327 using consistent
backpressure. Also check straightener for proper setting.
LEAD END STRIP FOLDS BACK
1. Check for proper wire guide selection. For flexible wire that drops down as it passes over the blades,
you may be able to use a special pivoting tube and guide. See drawings “CS-327 Guide Selection.pdf”
for part numbers
2. In the Wire Properties window, increase outfeed roller gap setting.
3.
Use partial strip.
4. Check for travel obstructions in the infeed and outfeed drives. They must open fully.
