WIRE FEED BELT ADJUSTMENTS
FEED BELT ADJUSTMENT

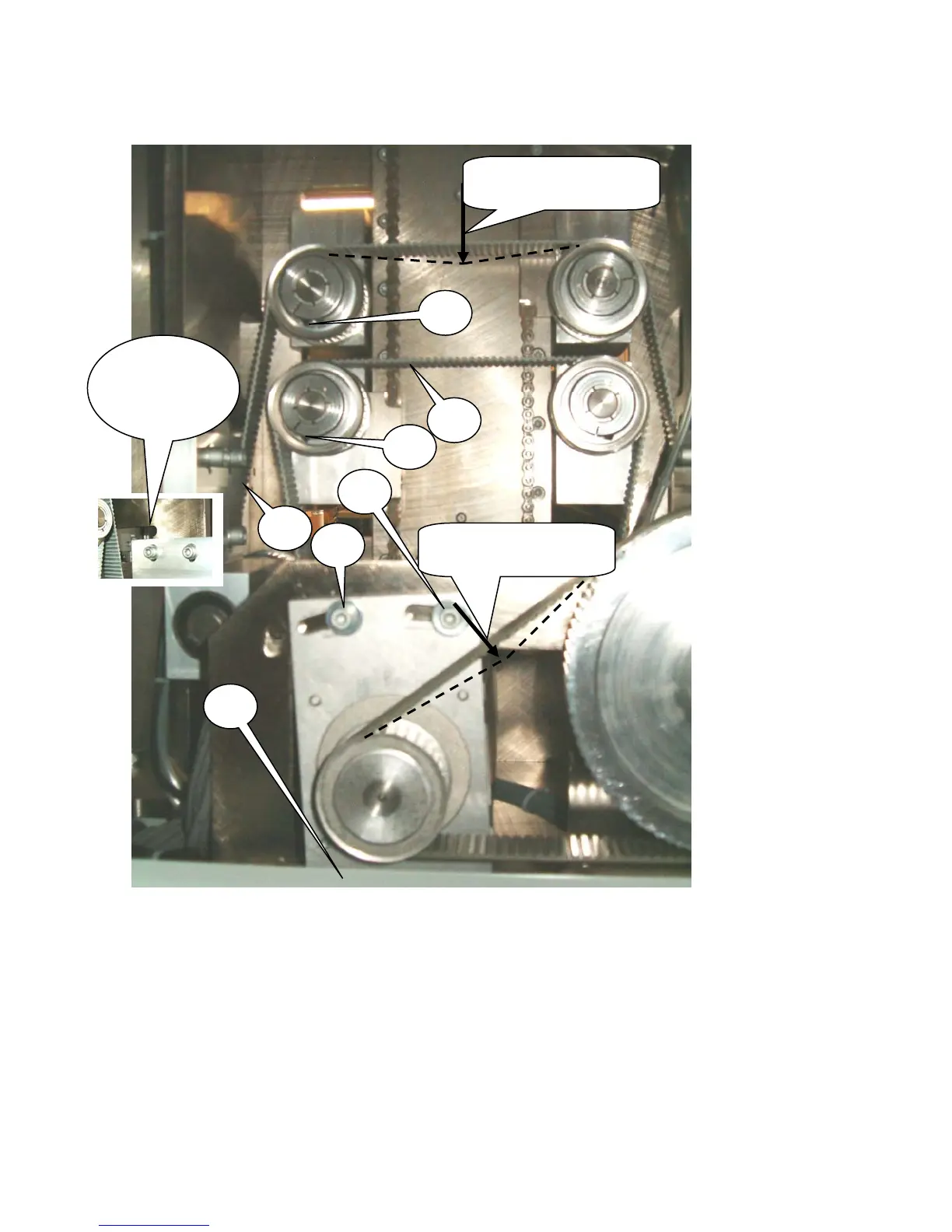

Feeddrivebeltsreplacementandadjustment
The feed drive belts adjustment must always be made with the system open. Before turning off the
power, press the feed roller open button and insure the feed system is open.
D
B
C
C
B
1/8 IN. DEFLECTION
MAX
1/16 IN. DEFLECTION
MAX
A
B
Pry Point
ON IDLER
BRACKET
