Warning it will be necessary to apply power to the machine with the cabinet open. This should only be
performed by a qualified technician properly versed in the safety precautions of working in a live
electrical enclosure.
CUTTERHEAD CALIBRATION AND BELT REPLACEMENT
Mechanical–MotorIndexMarkAlignment
This section only needs to be performed if the belt between the motor and the cutterhead was removed.
For each revolution of the motor there is one pulse that is fed back to the control. The only time the
machine uses this pulse is during start up reference.
Procedure to check the location of the index mark. Use this if the cutterhead timing belt is already
installed and tightened.
1. Power must be on. The machine must be in E-STOP.
2. Click Maintenance, I/O status from the CS327 software. Note the location of the Cutter Index
Data number.

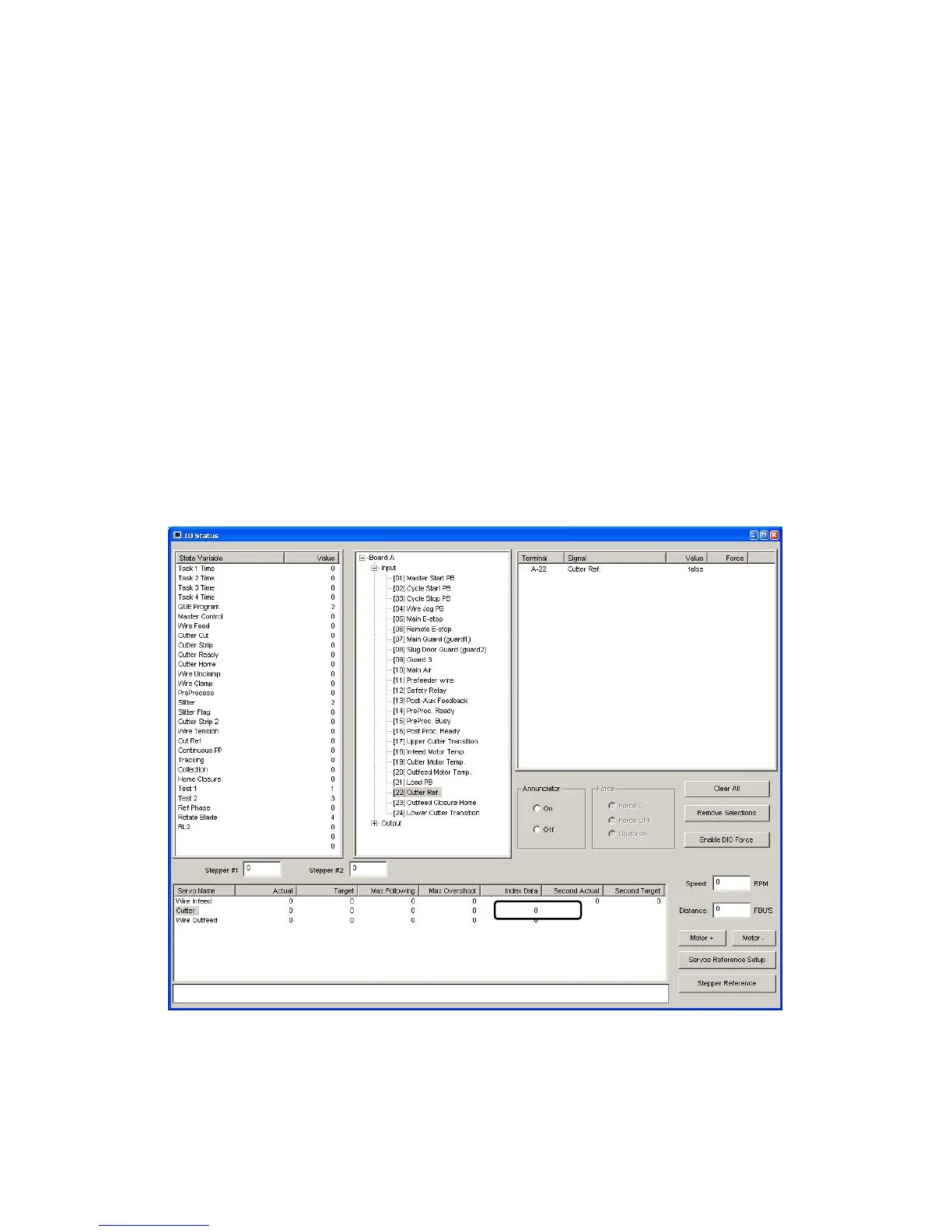

Photo 1. CS327 I/O screen
3. Rotate the ball screw in the cutterhead opening direction until the light on the cutter prox light
turns on.
