SLITTER TOOLING SET UP
The slitter has three pieces of tooling which are
customer variables.
1. The ROLLER GUIDE which is sized to the
width and height of the wire
2. The SLITTER BLOCK, which is set up with
the proper slitting blades.
3. The SLITTER GUIDE which holds the wire in
the ROLLER GUIDE.
Contact ARTOS for sizing of customer variables.
TO SET-UP THE TOOLING:
1. Install the slitter block on the guide pins and
secure with the thumbscrew.
2. Install the guide roller on the shaft and secure
with the thumbscrew.
3. Install the slitter guide and adjust the height so
it just clears the top of the wire. The wire
should not be able to twist out of the horizontal
plain. Secure with the thumbscrew.
4. Set the depth of cut using the micrometer
adjustment at the top. Set the depth so the slitter
blade just parts the web. To deep will cause
excessive drag and may contact the roller guide
causing damage to both pieces.
NOTE: Remove all tooling when not slitting.
01298
9

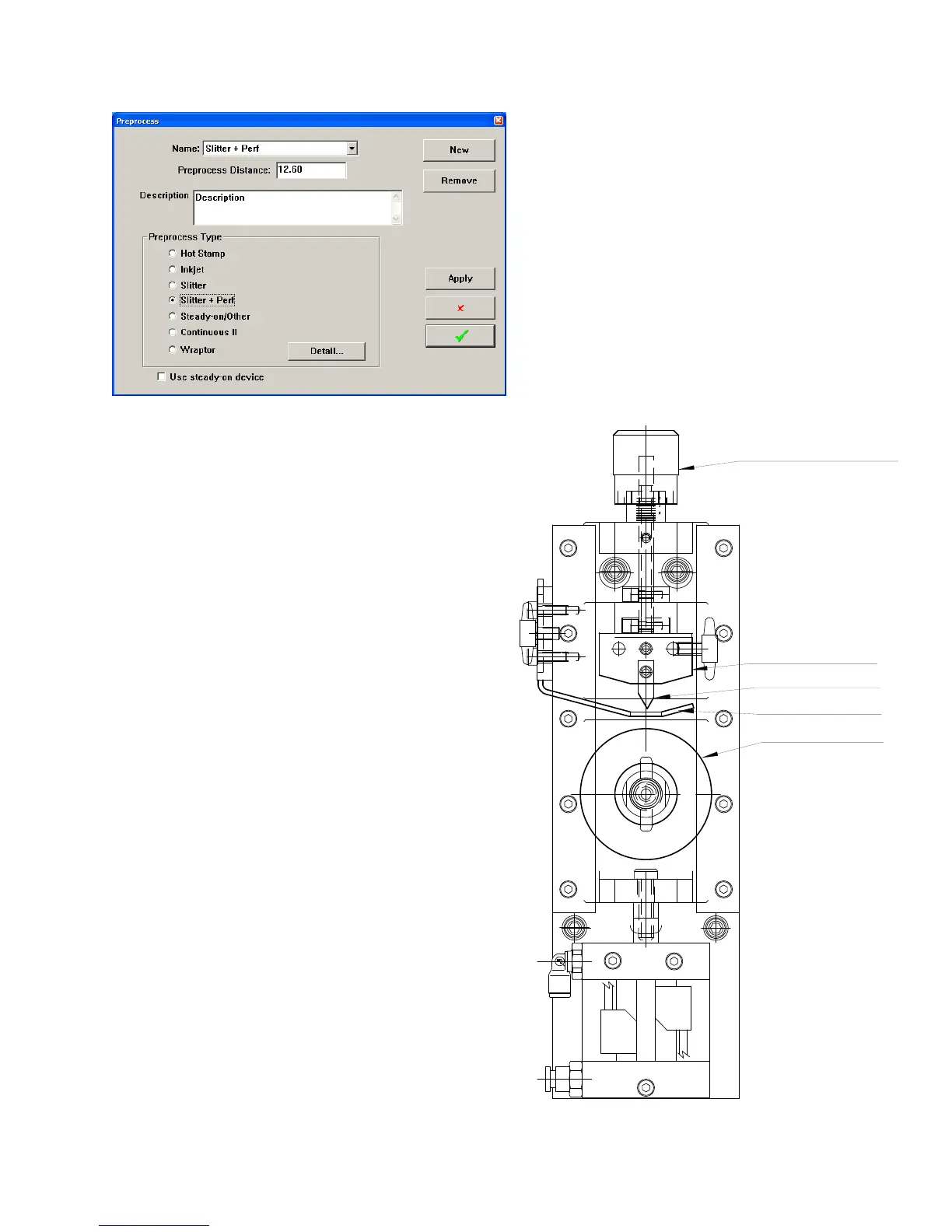

ROLLER GUIDE
