Enable lead / tail nibble Checking this will cause the machine to strip the end in nibble
mode when the maximum slug length is exceeded. Nibble mode means stripping the end in
multiple pieces. The maximum length of the piece is programmed in the Wire properties
screen.
Clear part distance is the distance the outfeed drive will travel when discharging a finished
part. This occurs at the end of the programmed quantity or on every part when Auto outfeed is
selected.
Dress lead length is the length of wire that is cut of the leading end of the wire at the start of a
feed to justify the starting end of the wire. (min .5” - 12.6mm)
Short mode conveyor speed is the percentage of full speed at which the out feed will turn
short wire mode.(the out feed does not close when in short wire mode and only acts as a
conveyor for parts long enough to reach it)
StripModeProgramming

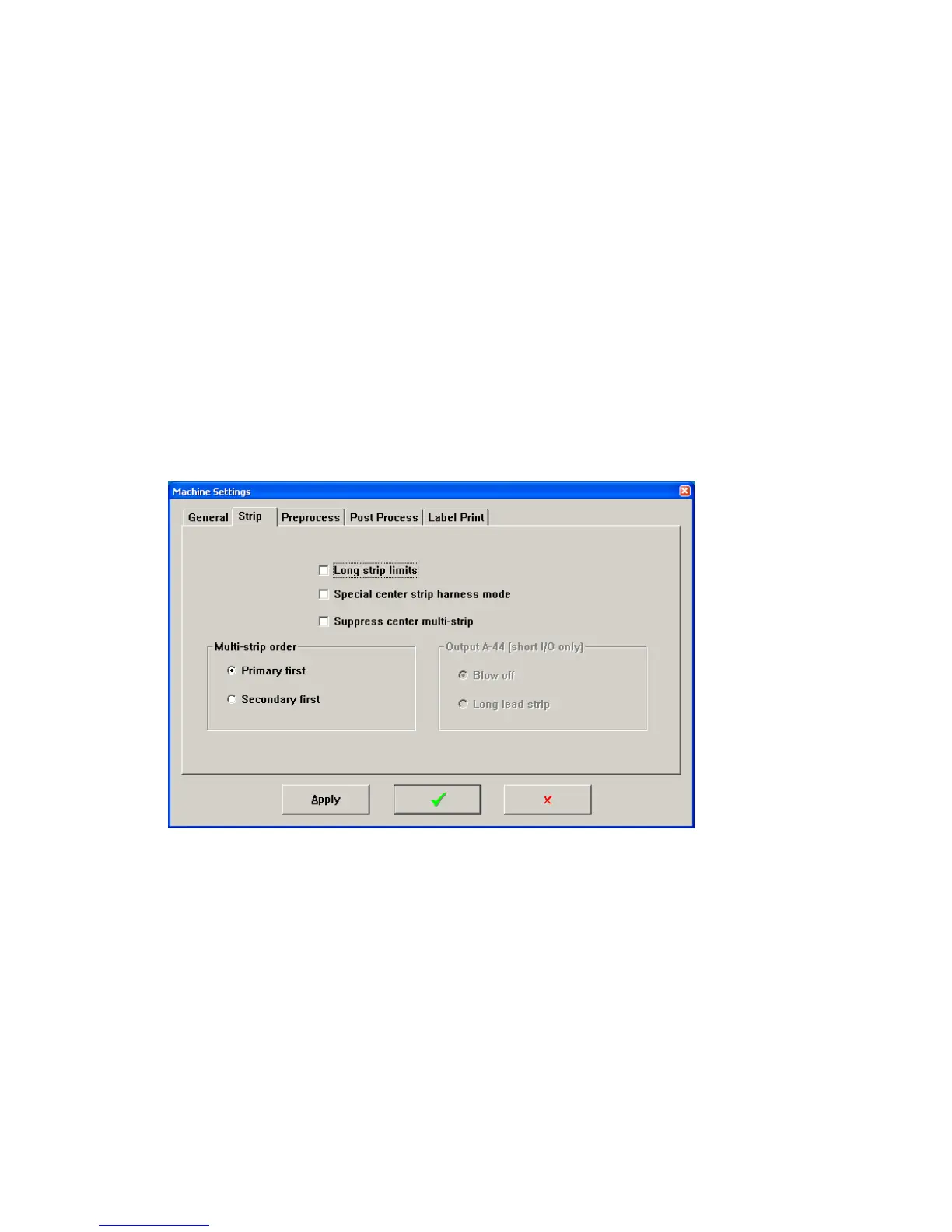

The Strip tab configures the variable stripping methods available
Long strip limits allows for the maximum strip length on both ends of the wire. When not
checked the Lead end strip length is limited to 2”- 50,8 mm
Special single-blade center strip harness mode allows for multiple window stripping where
the insulation is displaced but not removed (perf only). This method of window stripping is
obsolete. The new method is to use the pre-process called Slit+Perf. If your software does not
have this process, upgrading the software is recommended.
Suppress center multi-strip is a form of window stripping used in conjunction with a slitter.
In this case the insulation is cut but removed in a secondary operation (slit and perf). This
