Artos CS-327 - Window Stripping (Slitter+Perf)

65

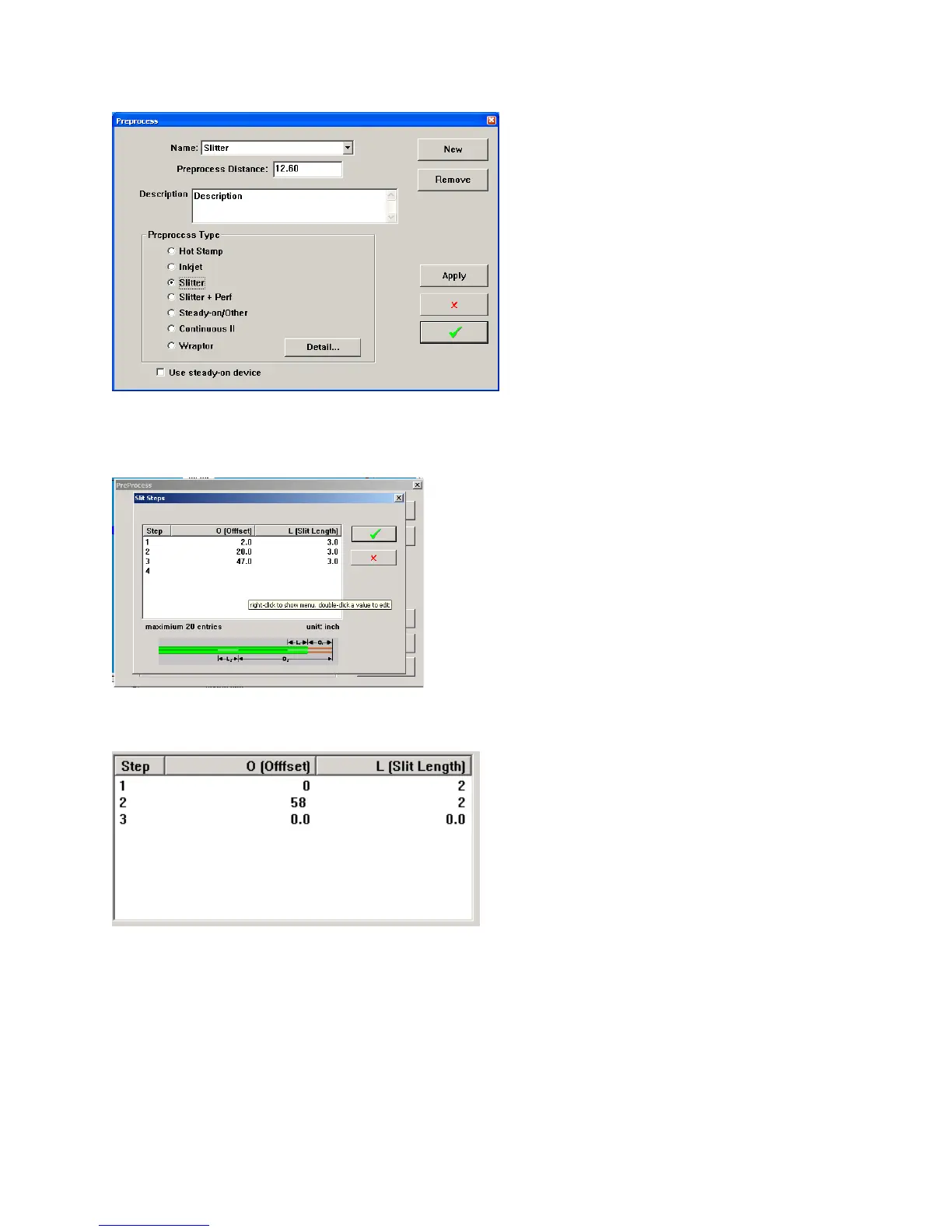

The slit position and length is set-up in the Detail Setting window. The below sample would slit a wire 3
times. First 2” from he lead end 3” long, second at 20 from the lead end 3” long, and the third 47” from
the lead end 3” long.
To slit a wire at both ends, for example a 60” wire with a 2” slit at each end, the settings would be as
follows
WINDOW STRIPPING (SLITTER+PERF)
This process has the same setup as the Slitter process with only one difference. In this mode the stripping
blades will come down at the end of each slit and cut a ring in the insulation. This allows a window of
insulation to be removed by hand.
