WIRE MARKING
The CS 327 can be equipped with wire a marking Preprocess. Artos WM 6, Kingsley hot stamp and
Imaje Ink jet can be connected with an optional interface device. Consult Artos for the correct
interface for your marker.
MarkerPhysicalSetup
The marker should be prepared to run as prescribed in the markers manual. Position the marker
in line with the wire path of the
CS 327 using a marker bar or suitable stand or table. Connect
specified air and power supply. It is important that the position of the marker relative to the CS
327 cutter blades remain stable and not be allowed to shift during wire processing. Connect the
marker interface cable to the
CS 327.

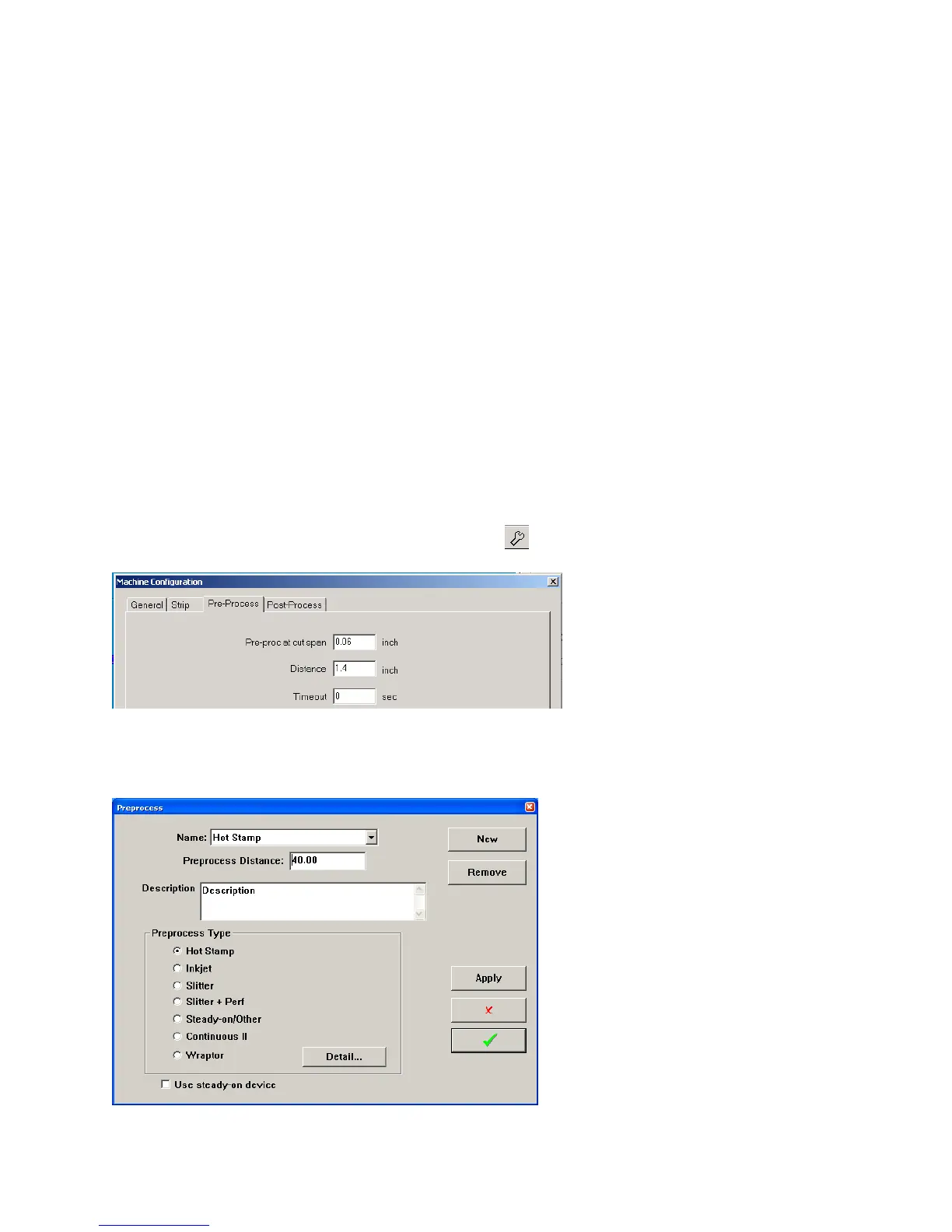

Measure the distance from the center of the marker to the cut-off blade
Distance value is entered in the Preprocess configuration
window but can be adjusted here
HOT STAMP MARKER (HOT STAMP)
To open the window below click on the wire image at #24 at either end of the wire.
