48
method of window stripping is obsolete. The new method is to use the pre-process called
Slit+Perf. If your software does not have this process, upgrading the software is
recommended.
Multi- strip order is the selection for the order in which the strips occur when using Double
Strip. The one that is selected will occur first

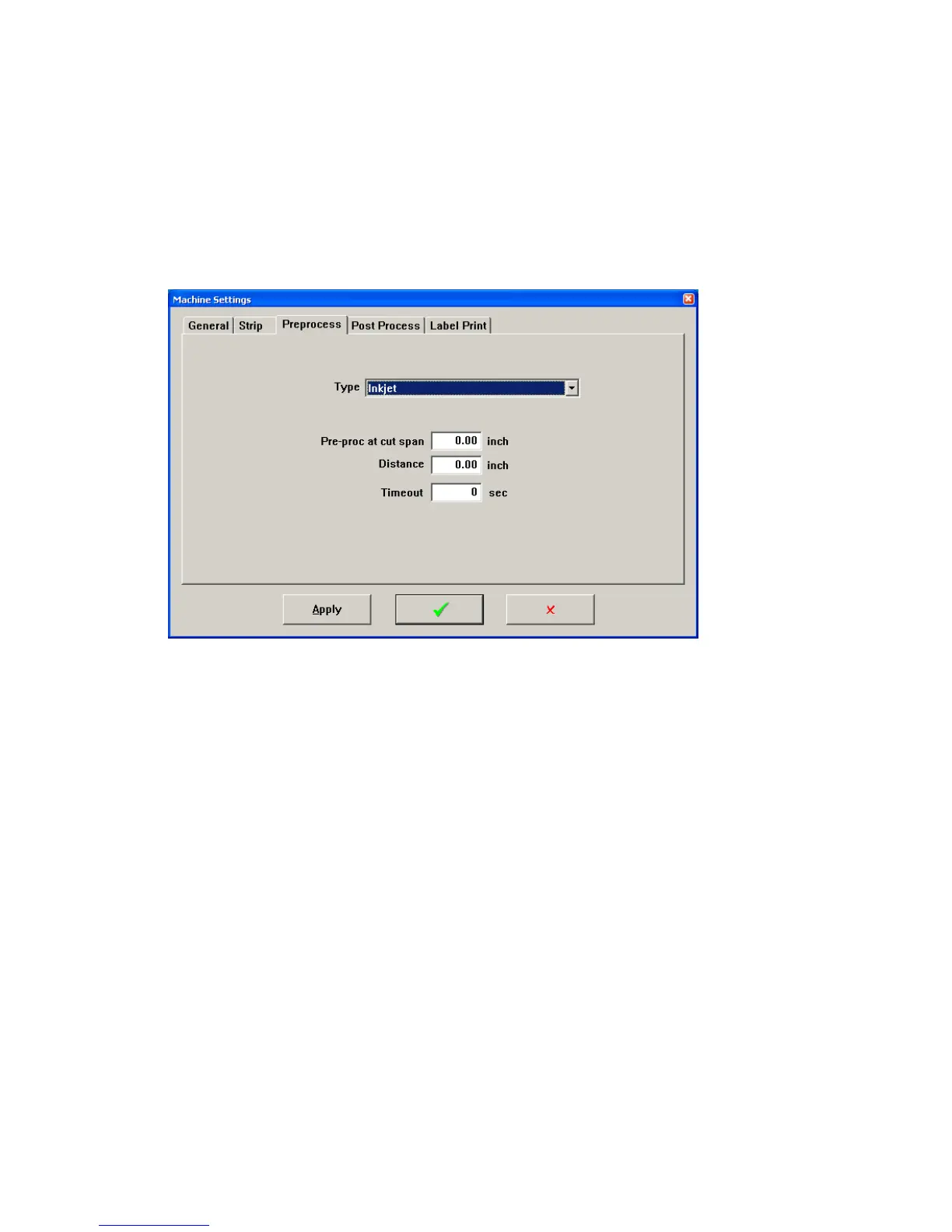

PreProcessConfiguration
Preprocess tab configures any Preprocess options that may be installed
Pre-proc at cut span sets a tolerance for preprocess activation relative to the distance from
blades to device. If the wire length is the same as Distance plus or minus this value the unit
will make on the cut. If not it will stop for the preprocess the feed the difference and then cut.
Distance is the distance between the center of the cut blade to the center of the pre-process
device.
Time out is the amount of time allowed for the preprocess to activate and complete. If it does
not occur in this time a “Preprocess Fault” error will appear.
Type is the type of Preprocess installed
o None is no preprocess installed
o Ink jet – Imaje S8 Inkjet printer with M marking head.
o Inkjet-Imaje-9040M – Imaje 9040 with M marking head
o Inkjet-Imaje-9040G – Imaje 9040 with G marking head
o Inkjet – Codebox-3 – Not used in the CS327 machine
o Hot stamp – is a heat transfer type marker. Examples are WM6, KIP 20. For these
markers the moment the ready signal activates the wire can be pulled.
