NOTE: It is very important that the body length of insulation is able to slide on the
conductor. If the insulation is difficult to slide, it may be necessary to adjust values to
accomplish a center strip successfully.

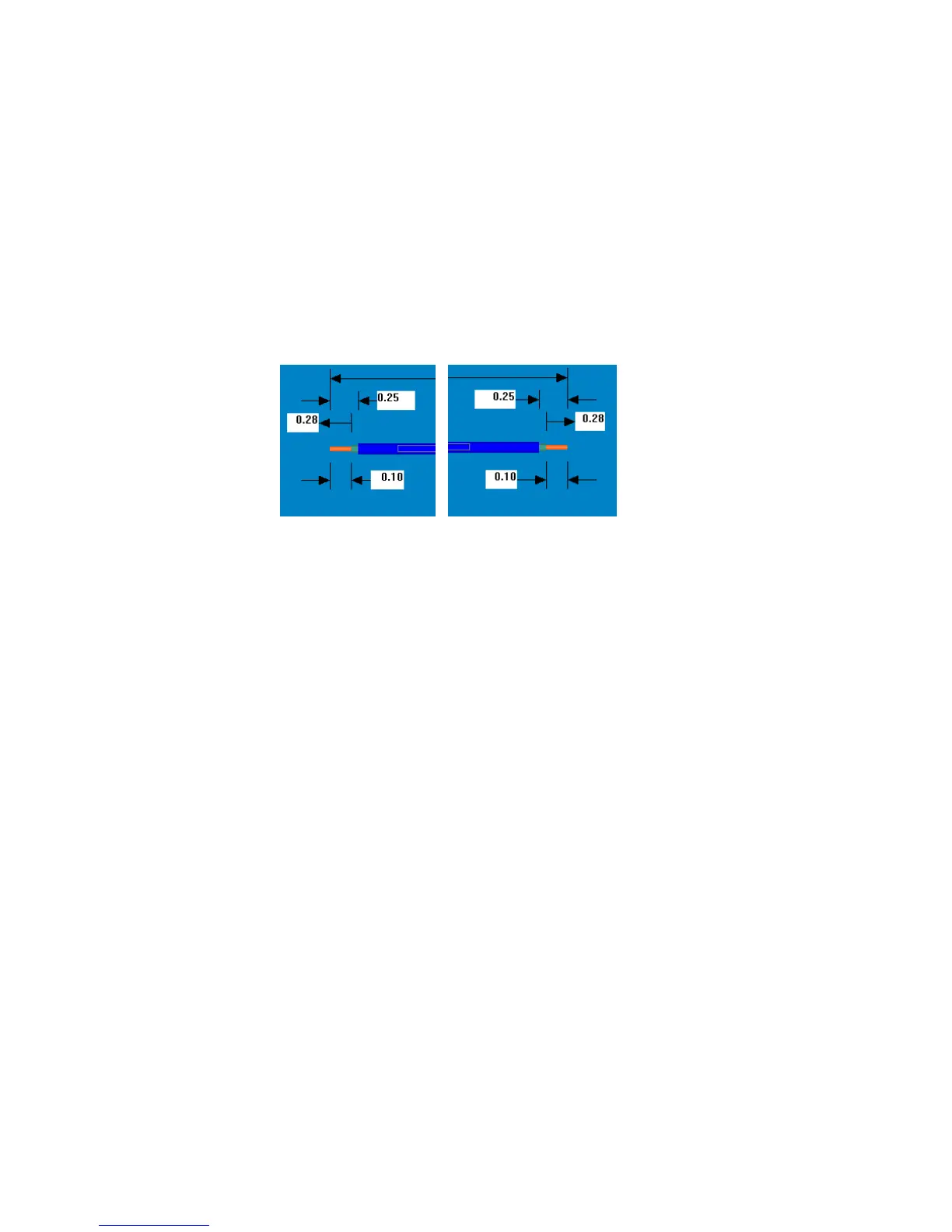

Lead / Tail Double Strip gives the ability to strip a wire that requires a 2 step strip such as
coax cable. When this is selected the wire image will change. Entry fields for the window strip
position and length will appear. The normal strip values are the Primary values. (smaller
diameter) The added windows are the Secondary values. (larger diameter) The Strip
Diameter for the Secondary strip is found in the Wires Properties (#5) The order of the
stripping, inner conductor first or outer conductor first, is selectable through the Machine
Configuration (#23)
STRIP DIAMETER
Strip Diameter is entered by double clicking on the appropriate window (#4), the field will turn blue,
enter the desired values and press ENTER. (Secondary Strip Diameter is found in Wire Properties)
PROGRAM QUANTITIES
TotalParts
Click on “Programmed” window, Enter the total number of pieces to be produced. Press Enter. The
value in “Complete” window will increase until it matches Programmed the value. Then the CS
327 will stop cycling.
BatchParts
Click on “Programmed” window, Enter the total number of pieces to be in a batch. Press Enter. The
value in “Complete” window will increase until it matches the Programmed value. Then the CS 327
will stop cycling.
CYCLE MODES
NOTE: The MASTER START button must be on to activate any cycle mode.
