CAUTION: Stripping and cutting blades are very sharp. Do not
handle sharp edges.
STRIPPING BLADE REPLACEMENT
(TWO BLADE ASSEMBLIES)
NOTE: Clear all stripping scrap from the lower toolholder to avoid
having scrap fall into the blade cavity.
Refer to the pictures on previous page.
The CS 327 has a uniquely simple method of securing the stripping blades. To change stripping
blades ( “B”) opens the cutterhead to the full open position using the “Manual Closure Wheel” at
the top of the cutterhead. Loosen the screw “A” at least one full turn. Support the upper blade so
it does not fall out. Remove the blades noting their orientation of the blades. Install the new
blades with the cutting edges (flat side) facing each other. The upper blade cutting edge faces to
the right and the lower faces to the left. insuring they are fully seated in the holders. Tighten
screw “A”.
Manually close the cutterhead and insure the blades bypass freely with the cutting edges in
contact with each other.
CUTOFF BLADE REPLACEMENT

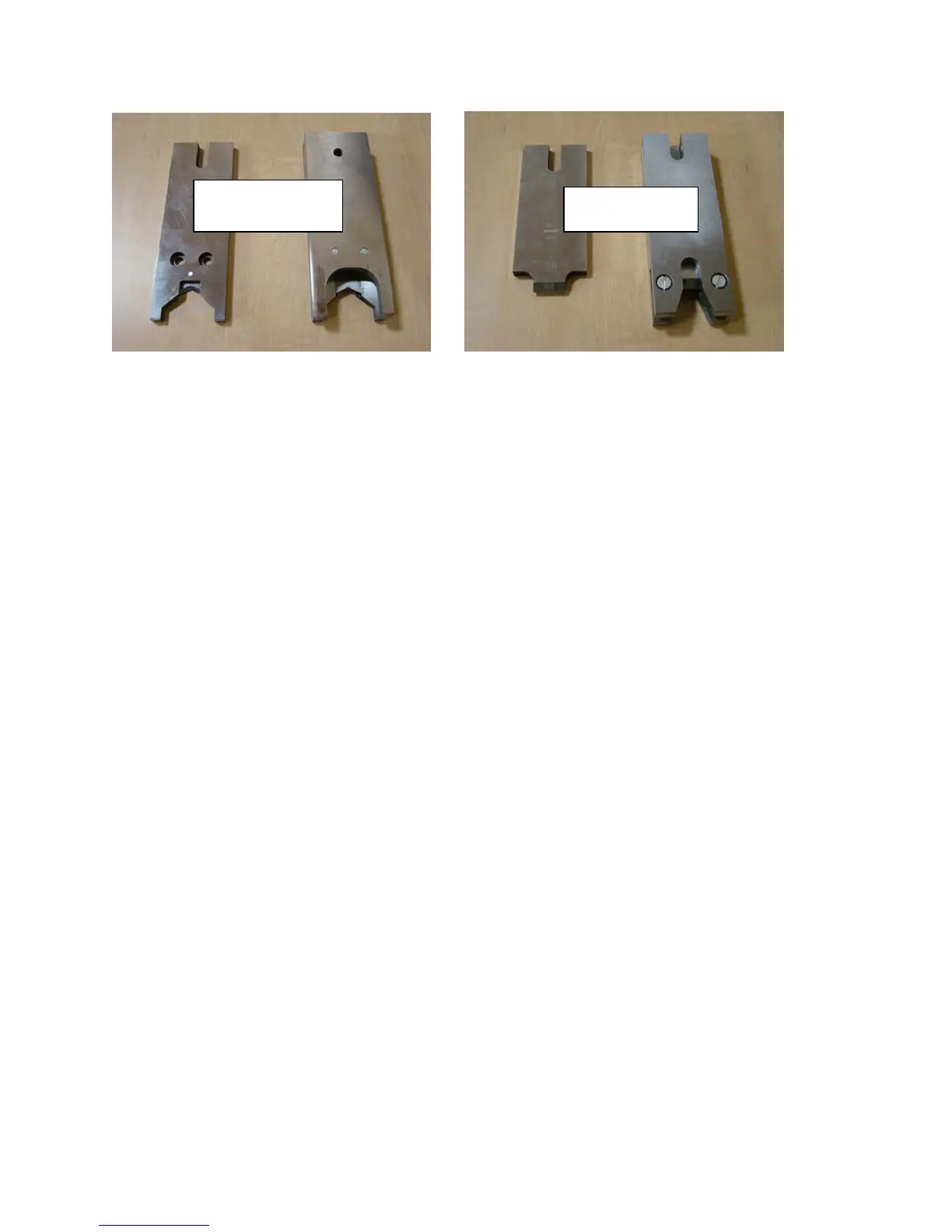

Refer to the pictures on previous page.
Carbide Cutoff
Blade
Pinch Blade
