Artos CS-327 - Feed Roller Pressure; Wire Length Calibration

25
Table 1 OUTFEED GAP
FeedRollerPressure(1‐100%)
This setting in N/A in the CS327 software
.
WireLengthCalibration.(50.003.94in./1270100.0mm)
This setting compensates for the different measuring characteristics of the various types of wire.
Wire calibration by manually entering the calibration value in the Wire
Properties screen.
1. Open the Wire properties screen.
2. Set the Wire Length Calibration value to 50.
3. Click the green check to exit.
4. Run the length of wire you need.
5. Measure the wire.
6. Open the Wire properties screen
7. Use the following formula to determine the calibration number.
In Inches
(50*measured length)/programmed length = calibration value
In metric
(1270*measured length)/programmed length = calibration value
8. Enter the number you calculated above for the calibration value.

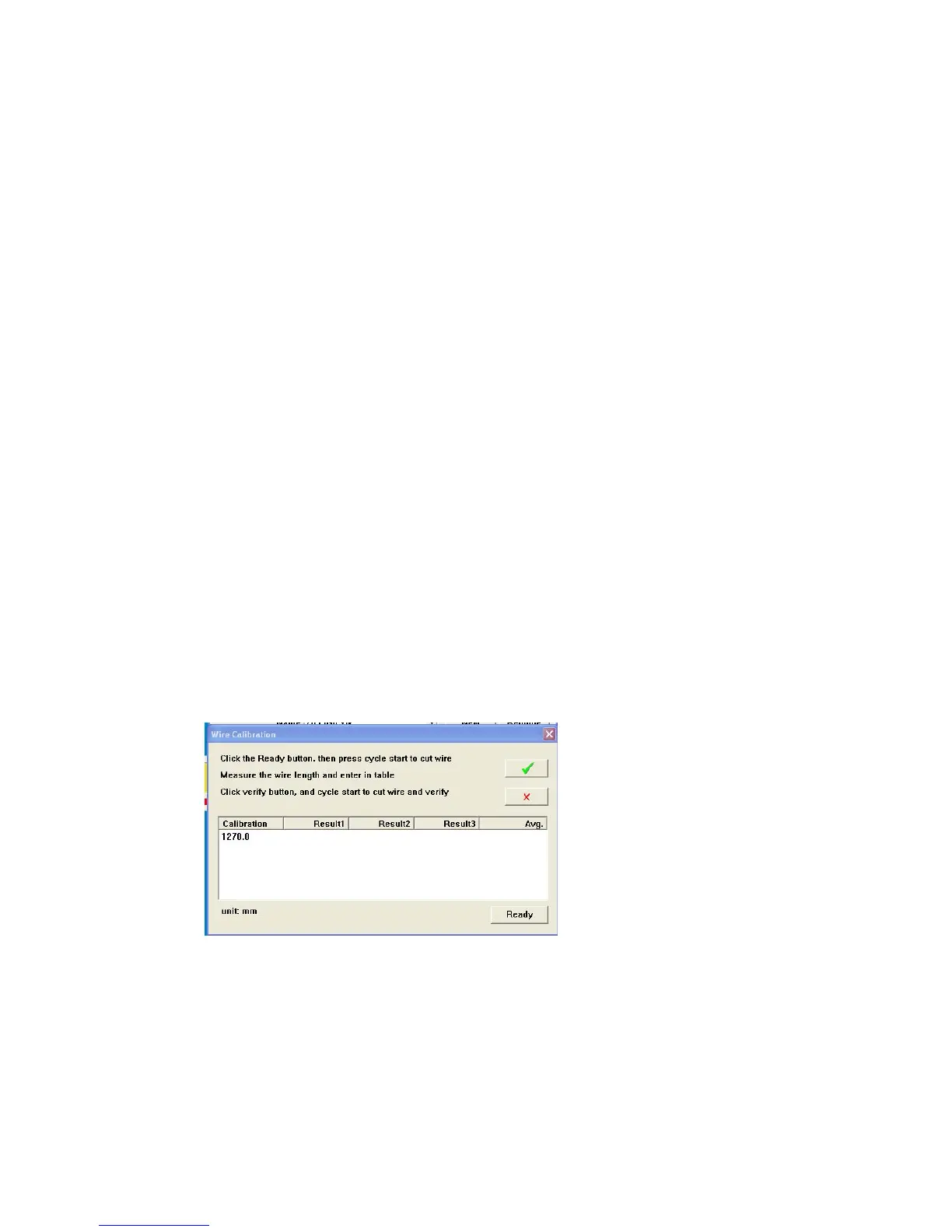

Wire calibration using the calibration routine in the Wire Properties
screen.
1. Open the wire properties screen shown above.
2. Click the calibration button.
3. Click Ready then press Cycle Start. The machine will produce three wires of approximately
1270mm (50in.)
4. Measure the wires.
5. Double Click on the calibration line. The first results field will open. Enter first length data
and <Enter> enter all three wire length values.
