7. Insert the proper size wire guides. (See document ” CS-327 Guide Selection.pdf”)

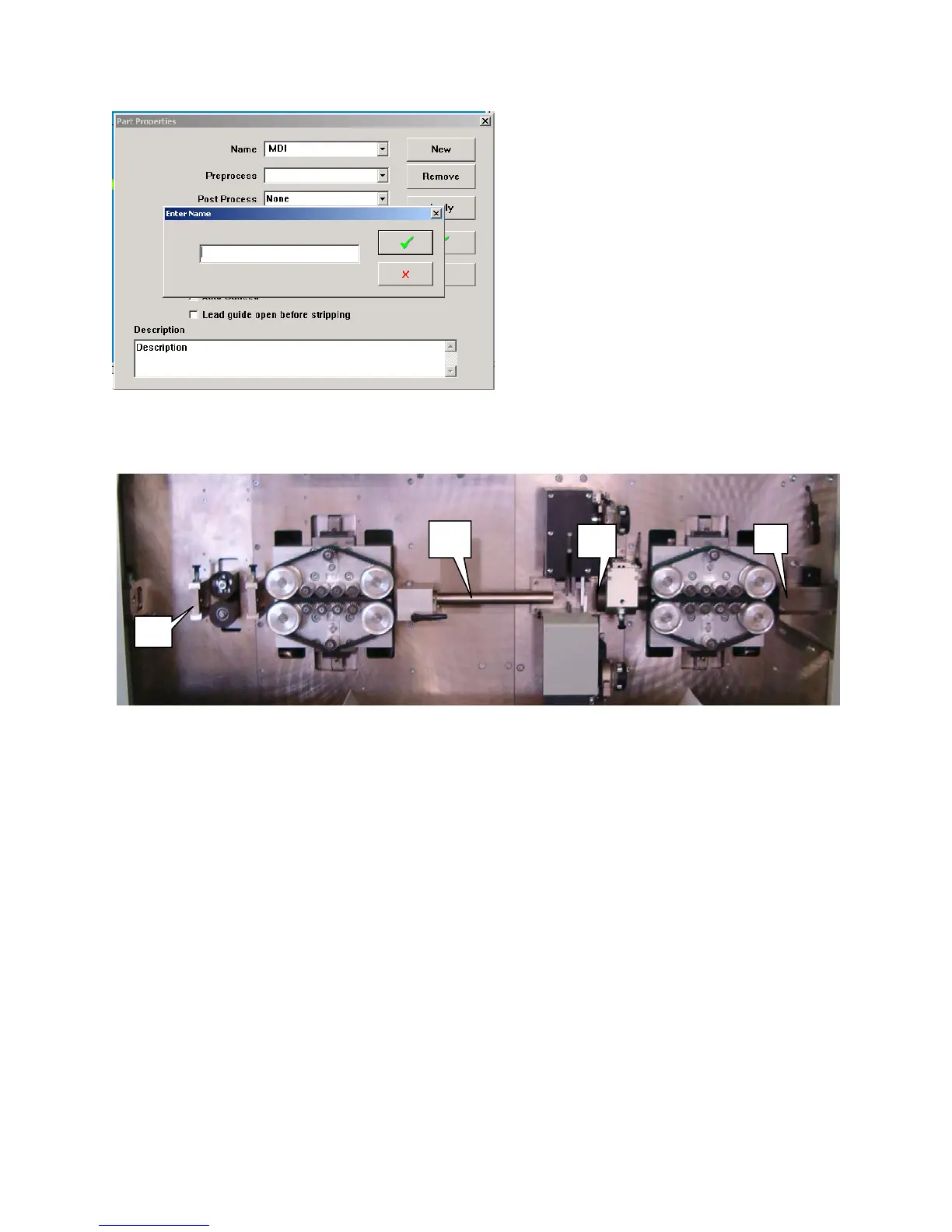

A. Wire straightened guides. Use the proper guide based on wire size before the wire
straightener . (Not shown)
B. Select infeed guide based on wire size.(2 places}
C. Select feed tube based on wire size
D. Select outfeed guide based on wire size.
E. Select discharge guide based on wire size
B
C
D E
To Next Page
