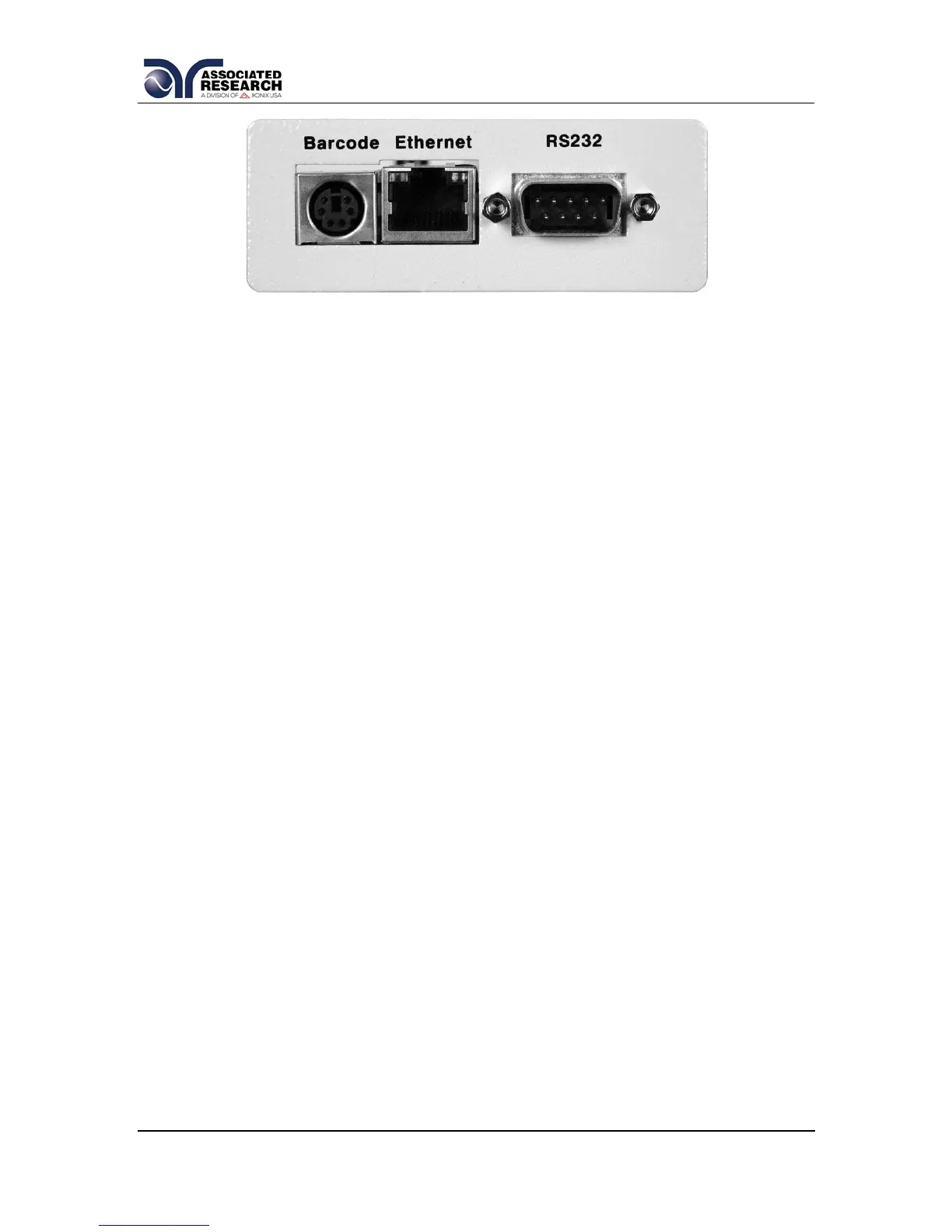

The port labeled “Barcode” is a PS/2-type connector that is used for the
connection of a barcode scanner. The Ethernet port is for use with a standard
CAT-5 Ethernet cable and may be connected to any compatible PC. The 9-pin D-
type subminiature connecter labeled “RS232” is for connection of the 620L to an
RS-232 communication bus.
USB/RS-232 Interface
The protocol for interfacing and communicating using the USB/RS-232 interface
can be found in section 7. Bus Remote Interface GPIB/USB/RS-232 of this
manual.
Ethernet Interface
The Ethernet interface provides all of the function control of the standard RS-232
interface. Some commands are only exclusive to GPIB control.
Default Settings
The default settings for the Ethernet interface are as follows:
IP Setup: AUTO
IP Address: 010.000.000.000
Gateway IP: 000.000.000.000
Subnet Mask: 255.000.000.000
The source port number for the Ethernet Card in TCP connections is 10001.
Ethernet Card Setup
In order to setup the Ethernet card, the operator will need information from the
local network administrator. Please have your network administrator fill out the
required information on the next page and keep it for your records:
