Ateis IDA8 User Manual

Product Features 105
© 2017, ATEÏS, member of PAX ProAV Group
If the range of leakage impedance is smaller than/equal as 8.xxM ohm, this indicates as a
hardware problem, please replace a new IDA8.
2. Click the Leakage Calibration button to proceed this action. After the calibration, the leakage
impedance value will go to 10Mohm.
3. For testing whether the leakage monitoring is working properly, users can try to connect
either speaker +/- pin shorted to ground or AMP-O +/- pin shorted to ground, the leakage values
should be 0.00 ohm, this is for triggering a leakage fault for testing.
4. If the leakage values are not 0, this will indicate as a hardware problem, please replace a new
IDA8.
Global Enable Monitor:
If users want to enable the monitoring function on all the connected IDA8 processors, you need
to click the [Global Enable Monitor] option first, and change the [Enable Monitor] option either
by clicking to enable this function or unclick to cancel the monitoring function.
Global Enable Leakage:
If users want to enable the monitoring function on all the connected IDA8 processors, you need
to click the [Global Enable Leakage] option first, and change the [Enable Leakage] option either
by clicking to enable this function or unclick to cancel the monitoring function.
Global Leakage Threshold:
If users want to enable the monitoring function on all the connected IDA8 processors, you need
to click the [Global Leakage Threshold] option first, and change the [Leakage Threshold 1k ohm]
option either by clicking to enable this function or unclick to cancel the monitoring function.
Global Enable Leakage Open Relay:
If users want to enable the monitoring function on all the connected IDA8 processors, you need
to click the [Global Enable Leakage Open Relay] option first, and change the [Enable Leakage
Open Relay] option either by clicking to enable this function or unclick to cancel the monitoring
function.
Global Leakage Open Threshold:
If users want to enable the monitoring function on all the connected IDA8 processors, you need
to click the [Global Leakage Open Threshold] option first, and change the [Leakage Open
Threshold 1k ohm] option either by clicking to enable this function or unclick to cancel the
monitoring function.

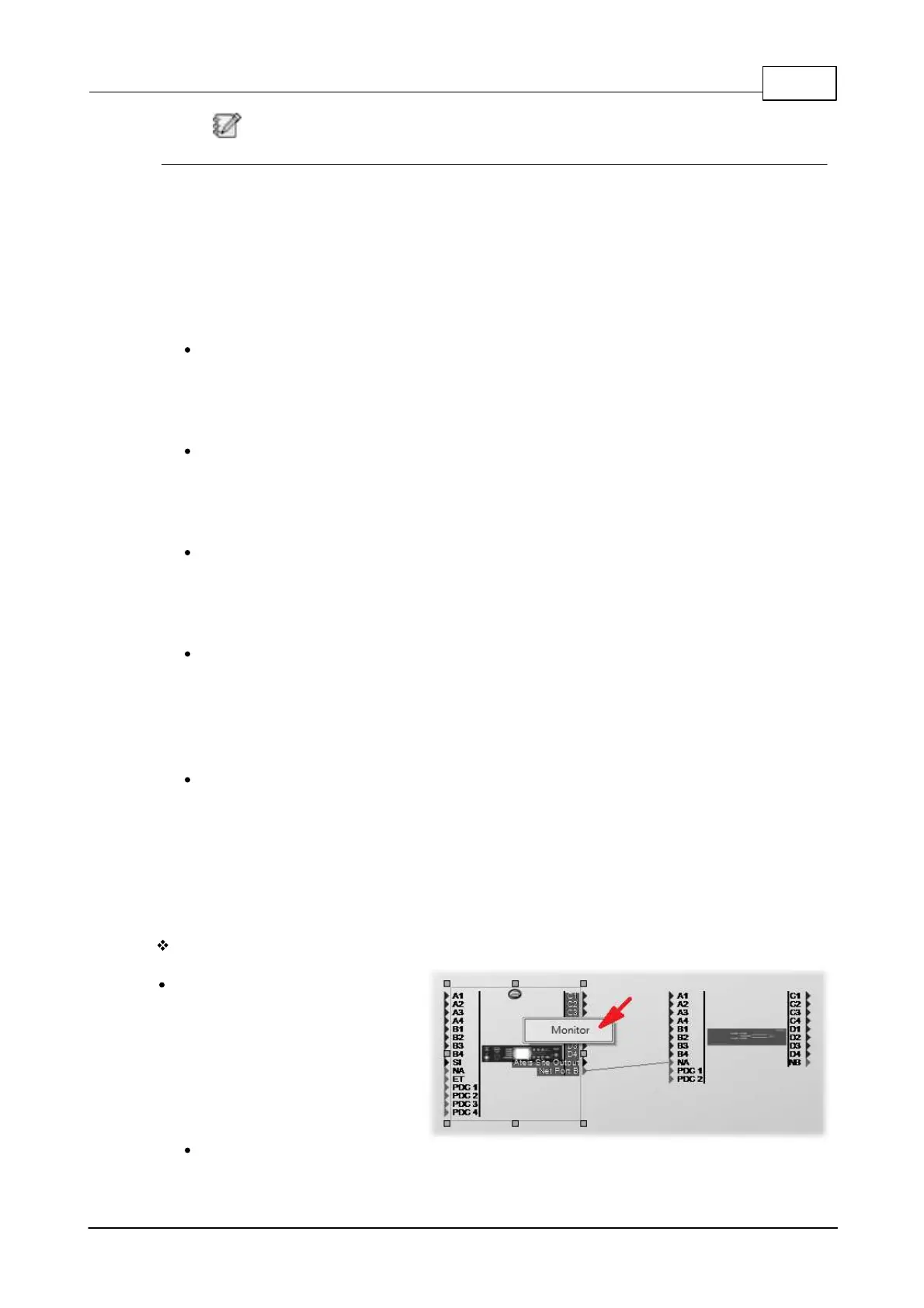

3.1.10.1.4 Zone Monitoring
Settings:
First, in Ateis Studio, right click the
IDA8C/S icon.
When the window [Monitoring(Matrix Mode)-IDA8C/S X ] appears, select [Zone Settings] page.
