IDA8 Global-Net User Manual166
© 2017, ATEÏS, member of PAX ProAV Group
3.2.1.6.8 Configurable Audio I/O

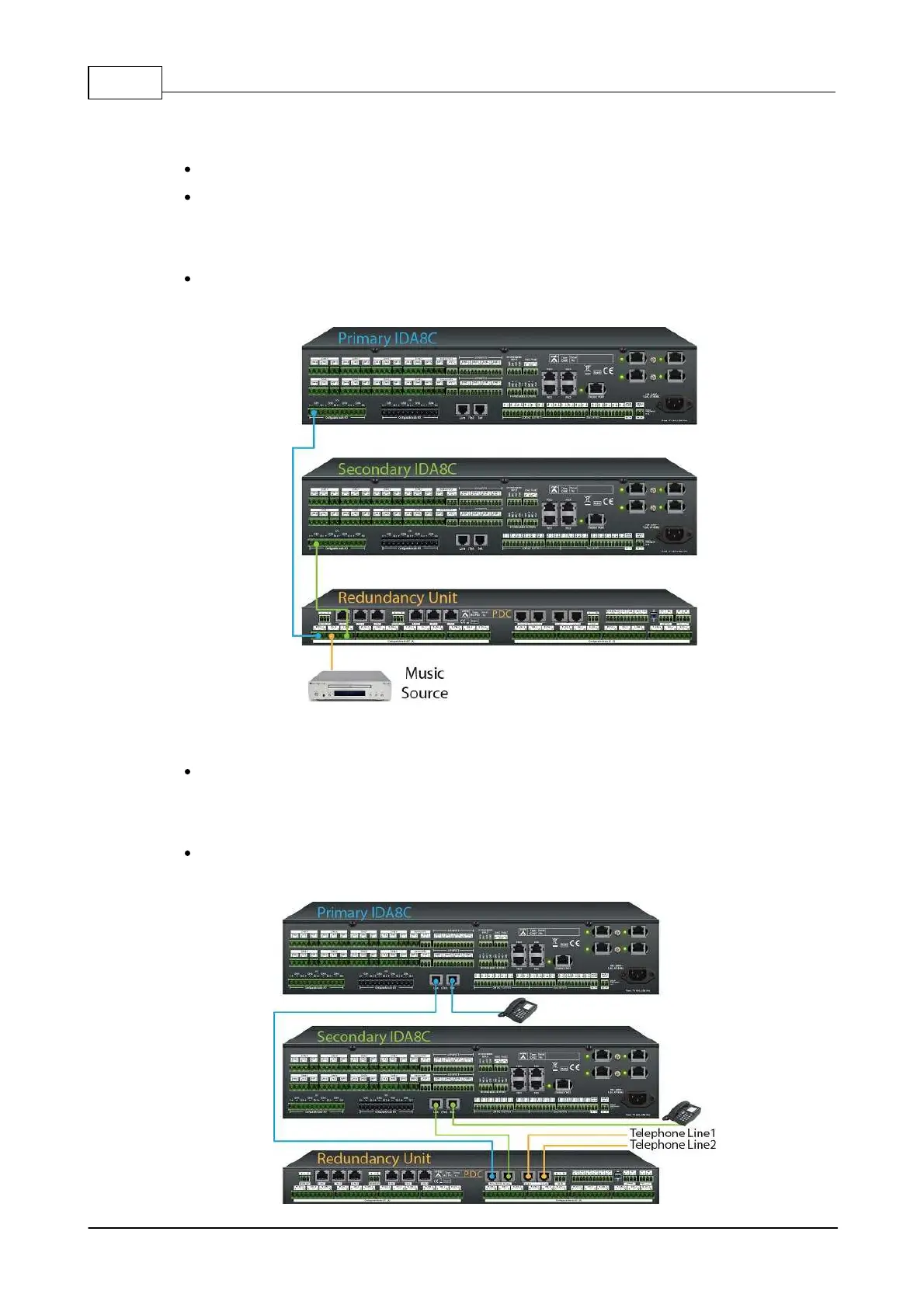

Full & Partial Redundancy
Black = Outputs, Green = Inputs.
From IDA8 to RU-PDC:
o IDA8: Configurable Audio I/O CH1~4.
o RU-PDC: Configurable Audio I/O (P_CH_1~4, S_CH_1~4)
From RU-PDC to Speaker:
o RU-PDC: Configurable Audio I/O (CH_1~4)
3.2.1.6.9 Telephone Lines
Full & Partial Redundancy
From IDA8 to RU-PDC:
o IDA8: Line (Tel) Set.
o RU-PDC: Primary (IDA8 Tel.) Secondary
From RU-PDC to Telephone line:
o RU-PDC: Tel.Line 1, Tel.Line2
