Output Channel: The number of channels to be as the
event results.
Parameters
Event Name: The name of the events that are linked.
Content: A [...] link button to open the event setting
window to assign which elements to control.
Logic Out: Define the state of output signal. There
are two cases which need to be considered
whether the event is proceeded successfully or not.

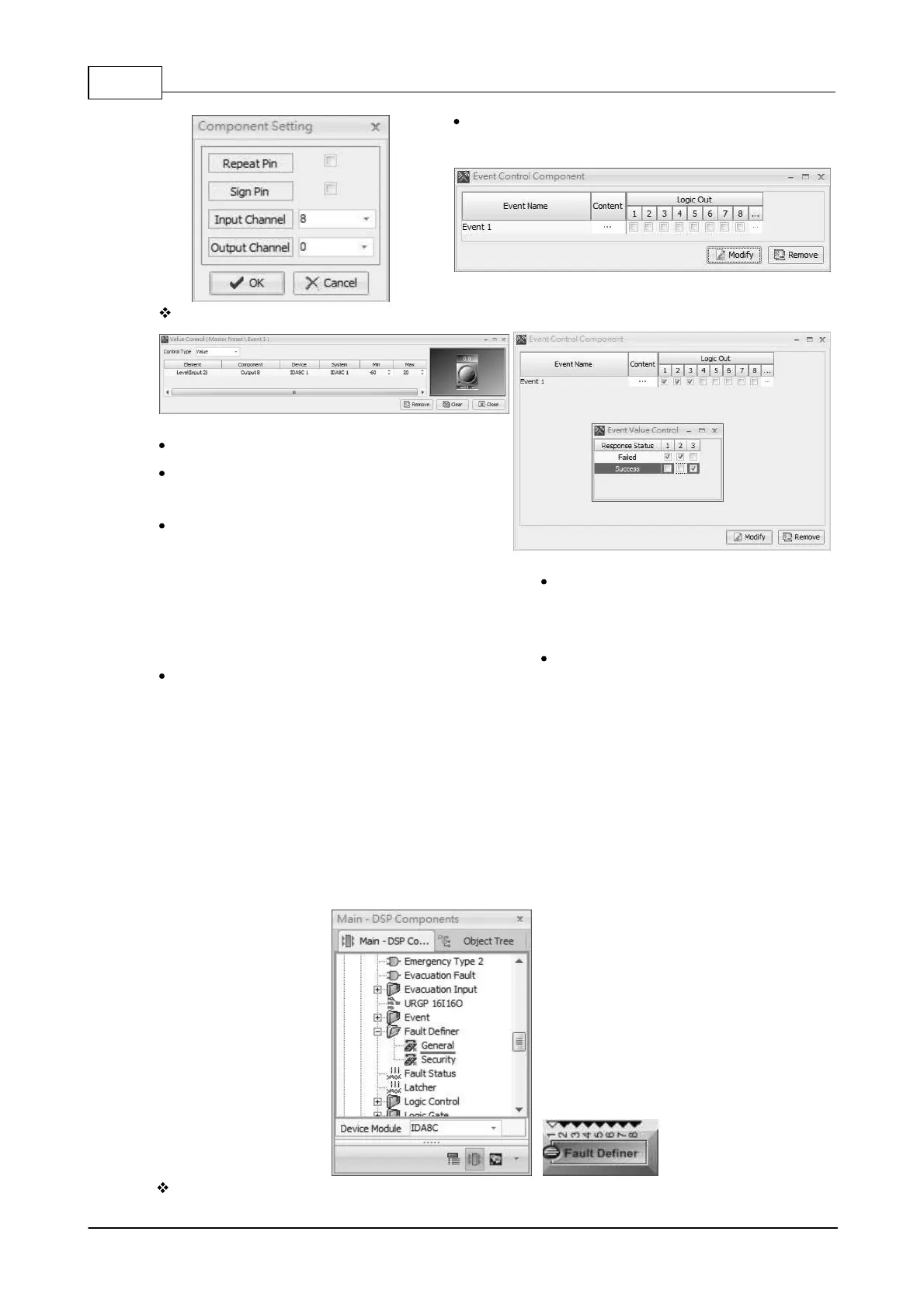

To finish this configuration, first, you need to select
the output signal what is function/working, see the
picture on the right.
Control Type:
o Value: Control the elements based on the
binary codes.
o Percentage: Control the elements based on the
relative percentage.
From the picture above, the logic output
of channel 1~3 are selected. Click the [...]
grid to open [Event Trigger] window.
Note: The Value Control/Value Trigger/
Step Trigger/Step Control/Master Preset
Change/Sub-Present Change can be
modified by Event Value Control
component only.
5.13.11 Fault Definer
5.13.11.1 Fault Definer
This component allows the users to trigger the customized faults which meet the users' need.
