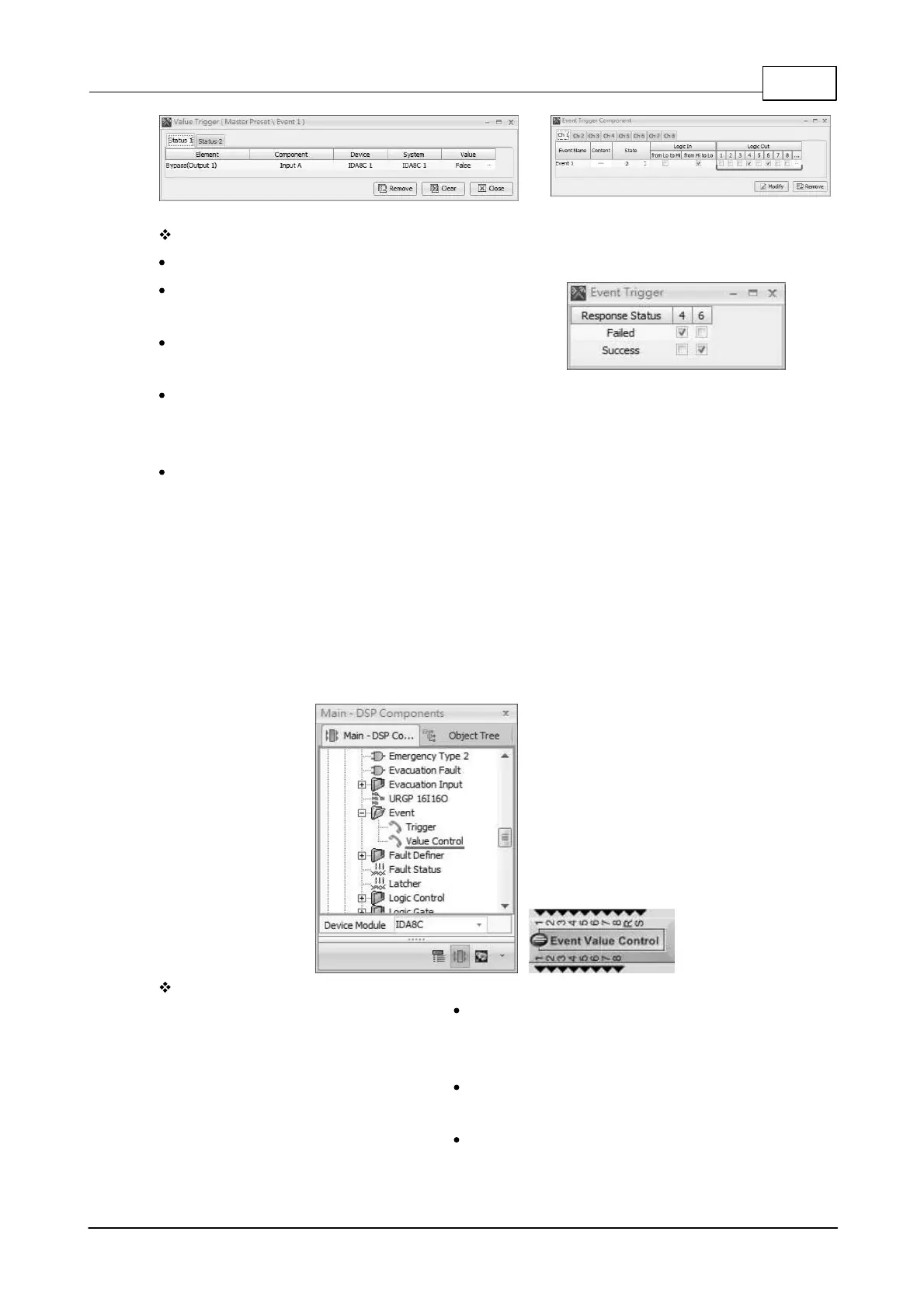

Parameters
Event Name: The name of the events that are linked.
Content: A [...] link button to open the setting
window.
State: The item of the element which you want to
trigger an event.
Logic In: Choose the type of trigger either raising
edge(Lo to Hi) or falling edge(High to Lo), or both
you want.
Logic Out: Define the state of output signal. There are
two cases which need to be considered whether the
event is proceeded successfully or not. To finish this
configuration, first, you need to select the output
signal what is function/working, see the picture on
the right.
From the above picture, the logic output of
channel 4 and 6 are selected. For more
settings, click the [...] grid on [Logic Out].
From the above figure, the settings
indicates when [Event 1] is Failed, Output 4
will be 1 and Output 6 will be 0, and when
[Event 1] is successfully triggered, the
Output 4 will be 0 and Output 6 will be 1.
Note: The Value Trigger/Step Trigger/
Master Preset Change/Sub-Present Change
can be modified by Event Trigger
component only.
5.13.10.2 Value Control
This component link events to logic signal, linked events will be triggered if any input logic signal
changes.
Control Window
When the Value Control component
is dragged from [Main-DSP
Components], a [Component
Setting] window will display as the
picture below.
Repeat Pin: Click to add a R Pin as the indication if the
value is the same and wants to repeat the trigger events.
Sign Pin: Click to add a Sign Pin if the triggering value
includes the minus value.
Input Channel: The number of input which is available in
the binary range.
