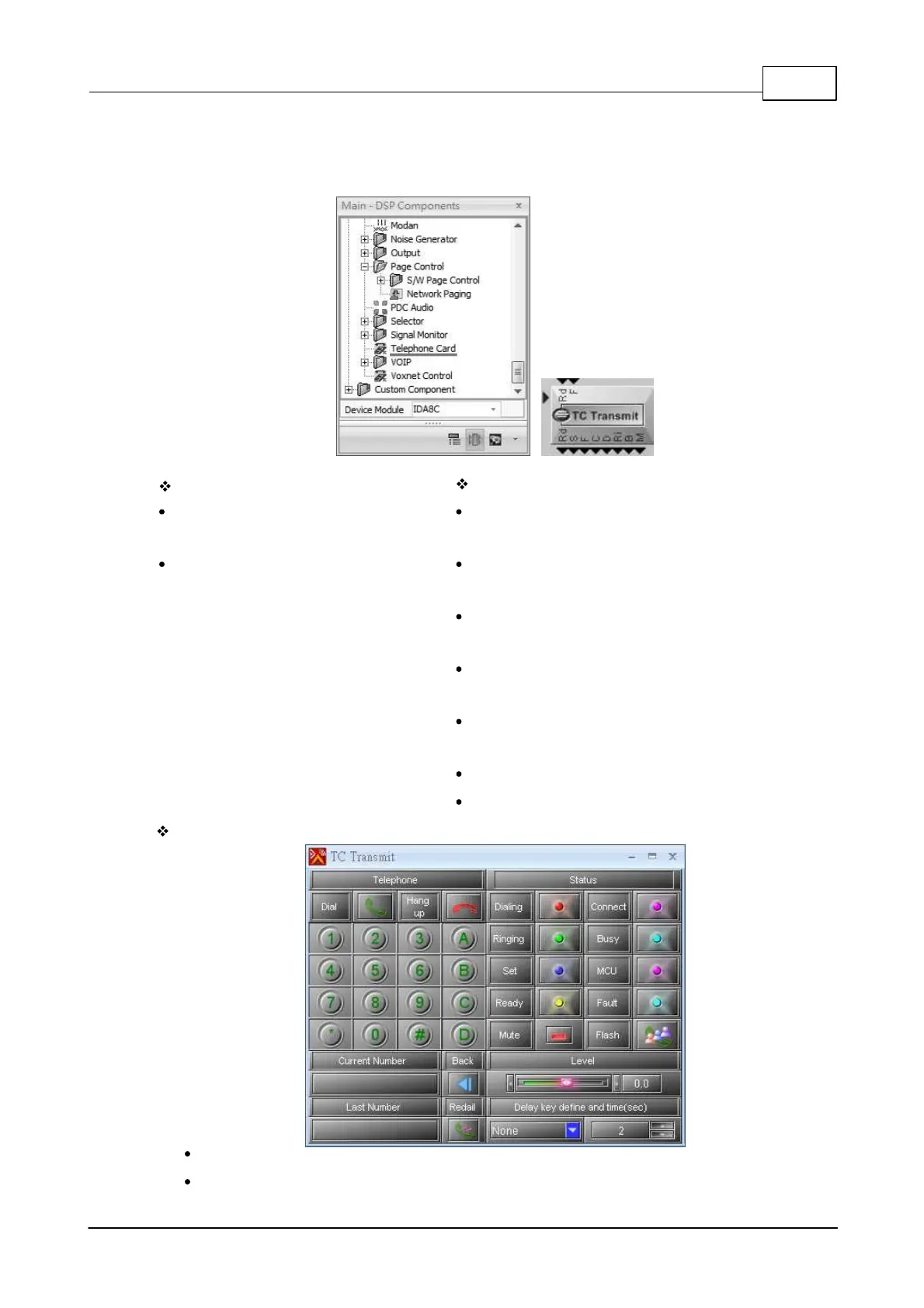

5.25 Telephone Card
5.25.1 TC Transmit
Allow the Ateis device to dial/receive phone calls. It needs to work with the telephone card.
Pins at the Top
Rd: Redial when the state of signal is
from low to high.
F: Flashes when making a 3-way
calling. Active if state of signal from lo
to hi.
Pins at the Bottom
Rd: The telephone line(RJ11 connector) connection is
correct.
S: Whether the set port is connected to the telephone
or not.
F: The telephone line(RJ11 connector) connection is
failed.
C: The caller and receiver are in the conversation at the
moment.
D: The receiver hasn't picked up the call which is
calling by IDA8C.
Ri: The calling to IDA8C hasn't been picked up yet.
B: The telephone line of receiver is busy now.
Control Window
Dial: This button can be used as [Dial] or [Receive] a phone call.
Hang up: Hang up the call.
