Product Features 145
© 2017, ATEÏS, member of PAX ProAV Group

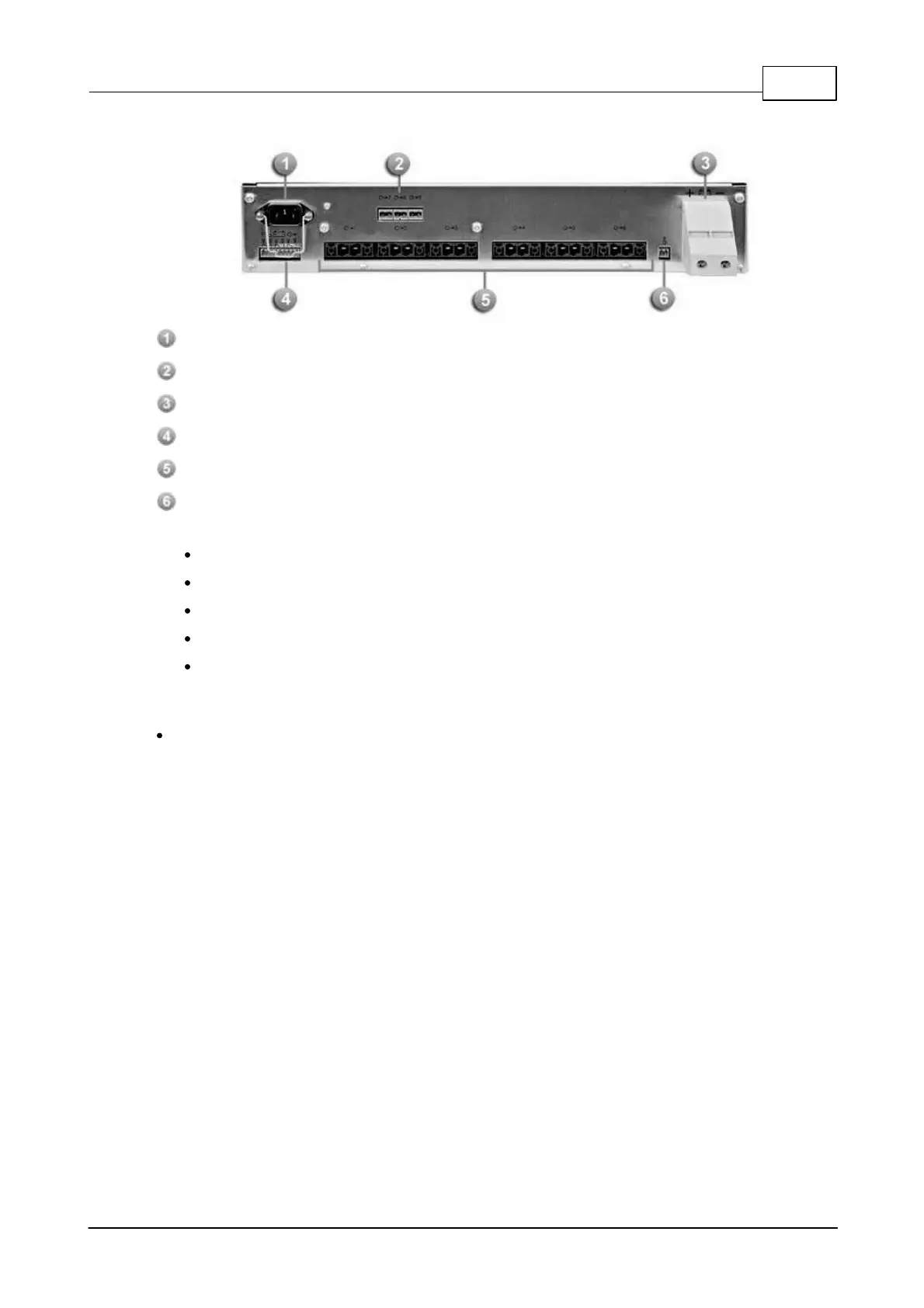

3.1.21.2.2 Rear Panel
Main power socket
Auxiliary output terminals
Battery terminal
Output contacts
Main output terminals
Temperature sensor
Connection specifications
Mains: 2.5 mm²
Battery: 16 to 50 mm²
Main outputs (outputs 1 to 6): 16 mm²
Auxiliary outputs (outputs 7 to 9): 2.5 mm²
Alarm reports (plug-in): 1.5 mm²
3.1.21.2.3 Installation
Block diagram:
To secure from the battery with a fuse with low resistance.
