Ateis IDA8 User Manual

IDA8 Global-Net User Manual534
© 2017, ATEÏS, member of PAX ProAV Group
Maximum Output Level:
10 dBu
Bandwidth"
@ -3dB at input < 20Hz ~ 22kHz
RS232 voltages
-6.5/+6.5
Distance up to 1000 meters for using external power supply.
Note: The distance using internal power supply is differ from each product.

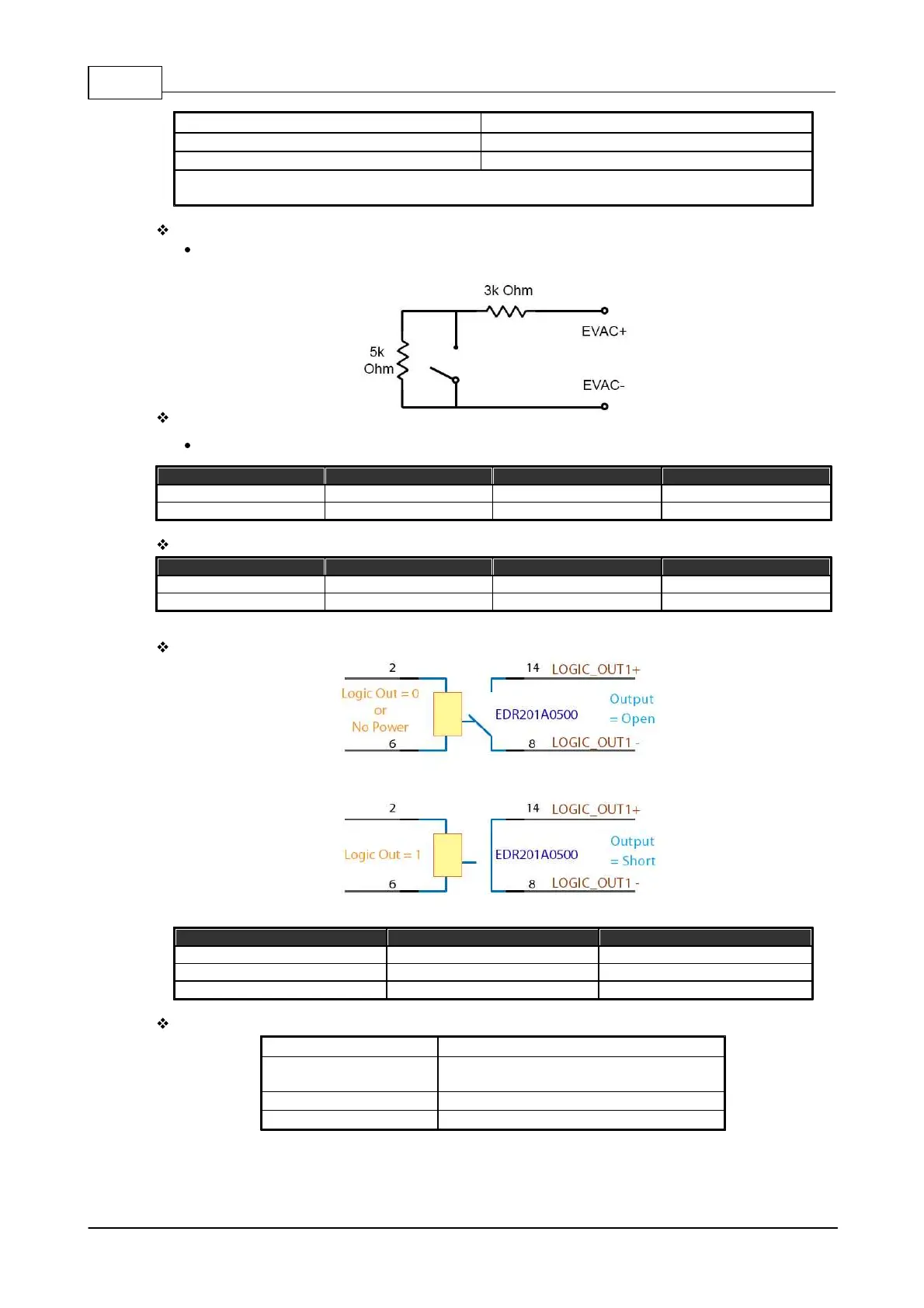

Evacuation Inputs(Contact Mode)
4 status: On, Off, Open and Short
Evacuation Inputs(Voltage Mode)
On Voltage
Item
Minimum
Maximum
Unit
High
18
72
VDC
Low
-
0.5
VDC
Contact Outputs + EVAC, Fault State Outputs
Item
Minimum
Maximum
Unit
Voltage
-
100
VDC
Current
-
0.5
ADC
Contact Output Relay
Contact Output
Contact Form
Maximum
Unit
Carry Current
1.0
ADC
Maximum Voltage
100
VDC
Electrical Life
1 x 10^8 (Ref 10VDC, 10mA)
-
Mechanical
Dimensions(W x H x D):
436mm (W) x 88mm (H) x 300mm (L)
Weight:
5Kg
Colour:
RAL7016
Operating Temperature:
0°C ~ 40°C
