Chapter 1 – Instrument installation
UM-30300D-U User manual AX 6000 Page 8 / 54
2. INSTRUMENT INSTALLATION
2.1. BATTERY BLOCK / SUPPLY
The ATEQ AX6000 is running with a 12 V DC
battery.
The battery has a LED light for charge state:
9 Red: The battery is charging.
9 Green: battery full.

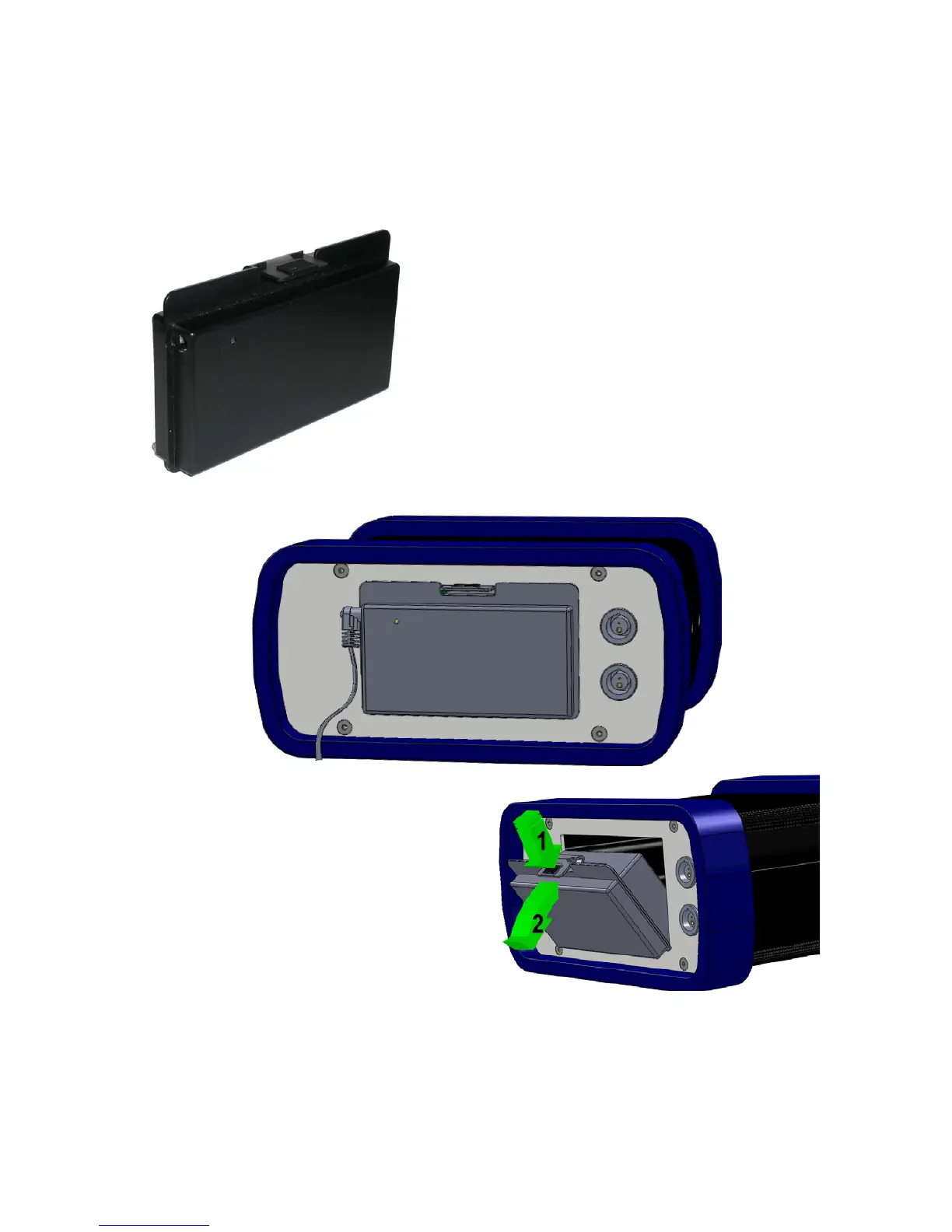

To remove the battery from the device,
proceed as follows:
1) Press the burst above to unlock.
2) Turn the battery outwards.
To reinstall the battery, do the same
operation in the reversal way.
