6. MEASUREMENT TRIGGERING
The measurement is triggered by:
¾ Simple accessories contact on the part to test (current detection). If the
Auto Start function is on.
¾ Press the key on the instrument front face.

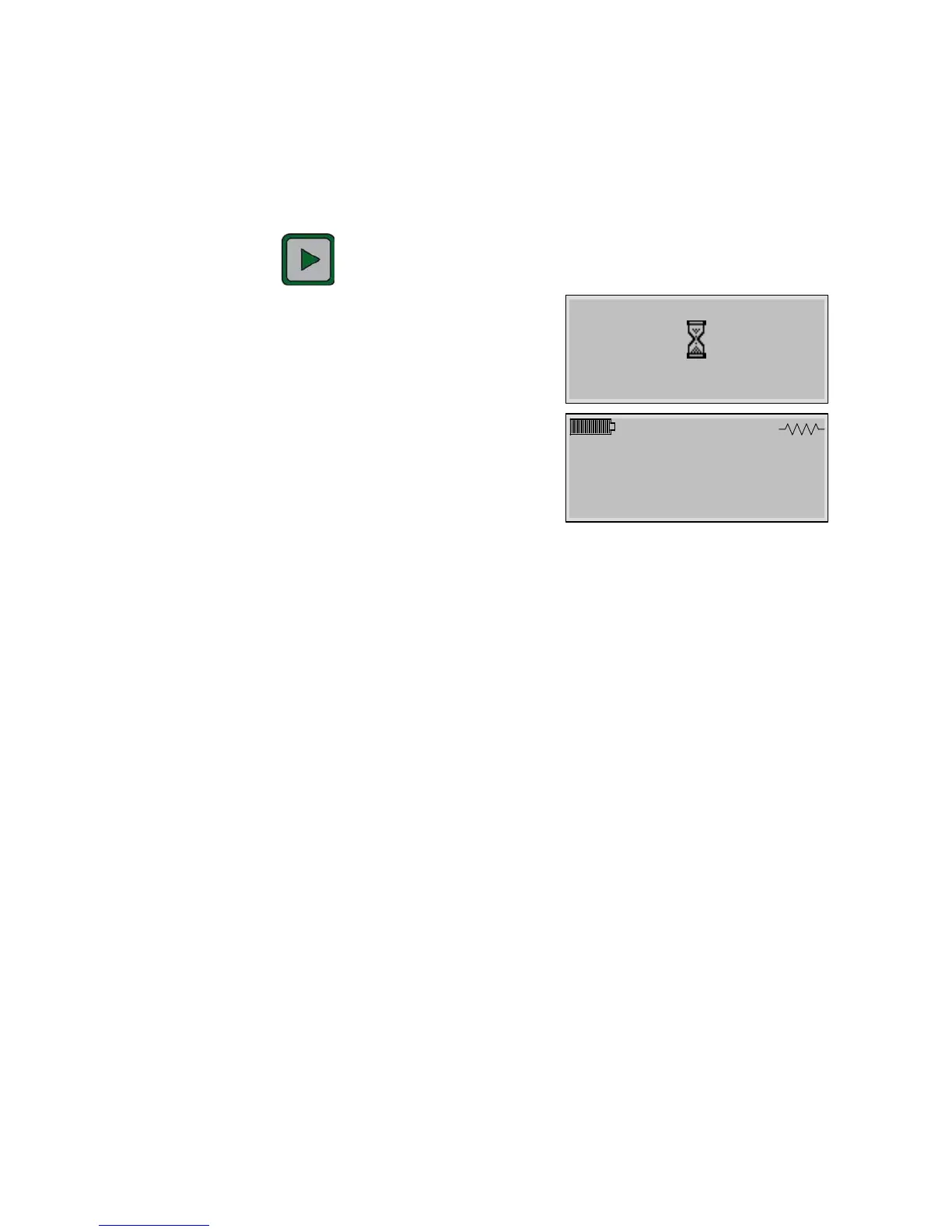

During the measurement, an hourglass is
displayed.
Note: if the Buzzer function is validate, a beep is
ringing during the test time.
PLEASE WAIT
The test stops and the measurement result is
displayed.
Program 1
1.002 mΩ
10A
mΩ
Note: if the device detects a fail part or an alarm, when the Buzzer function is activated,
a series of short beeps are ringing.
6.1. AUTO-TEST
The instrument is fitted with an auto-test (internal test) to check the test current value.
This test is carried out with a precision resistance integrated within the instrument.
7. TEST STOP
The resistance measurement stops by:
¾ A contact cut from one of the probes (current passing cut).
¾ Automatically at the end of the test.
7.1. MEASUREMENT FAIL DETECTION
An error message notifies the operator for all fail values recorded due to cuts in one of
the two loops of the measuring circuit during the test (rebounds contacts, probes press
too low, etc.).
