Chapter 3 – Starting up and adjustments
UM-30300D-U User manual AX 6000 Page 26 / 54
8. SEQUENCES CONFIGURATION (WINATEQ300/AX)
The sequences configuration can be done only with the Winateq300 6000
software.
The sequence mode allows chaining several programs the ones after the others
following a defined order that the operator may follow. Maximum characteristics: 128
programs; 32 sequences; 999 steps programs in a sequence.

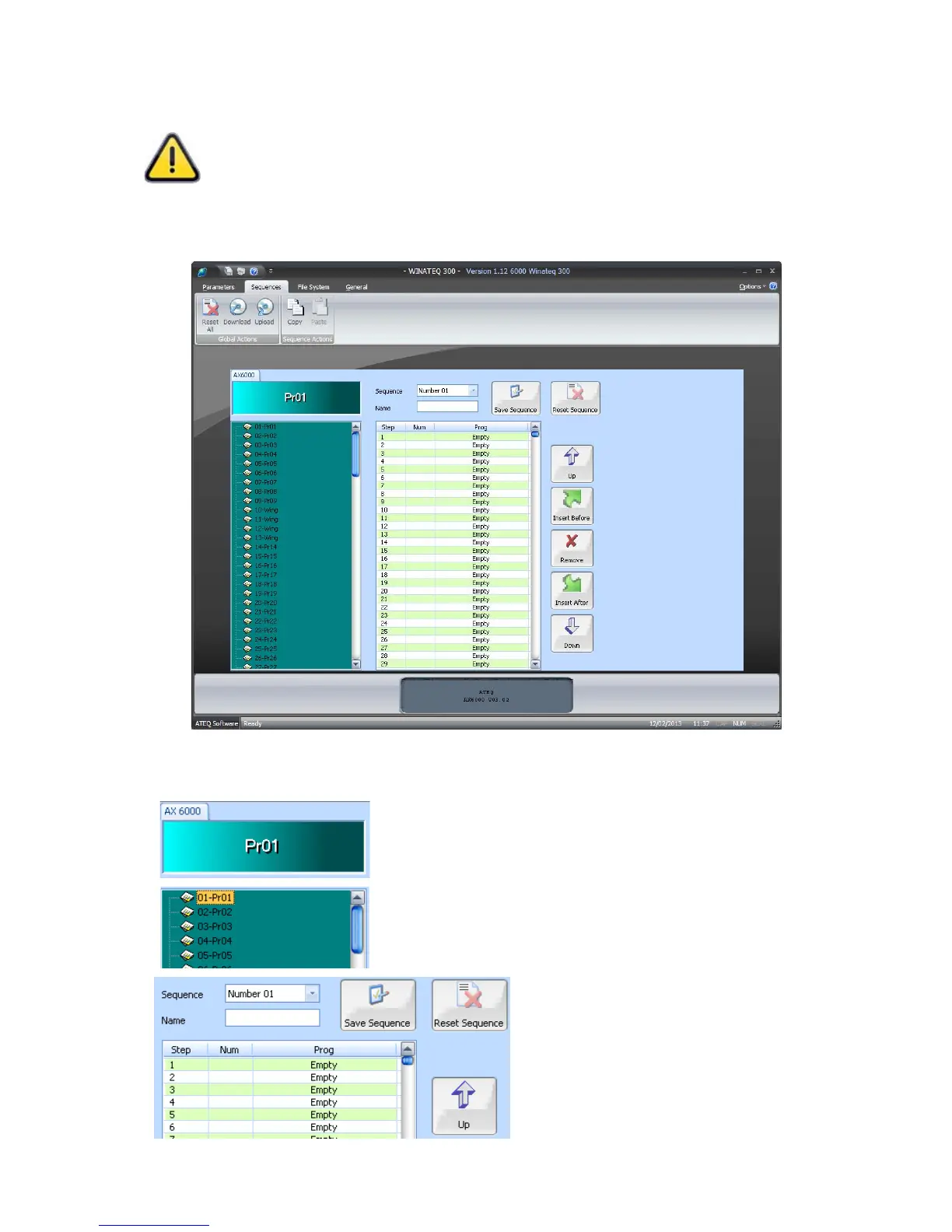

8.1. WINDOW DETAILS
Name of the device connected (left up) and number of
the selected program or its name if existing.
Display window of the programs list.
Display window of the selected
sequence.
