Manual, F/T Sensor, Data Acquisition (DAQ) Systems
Document #9620-05-DAQ.indd-20
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
47

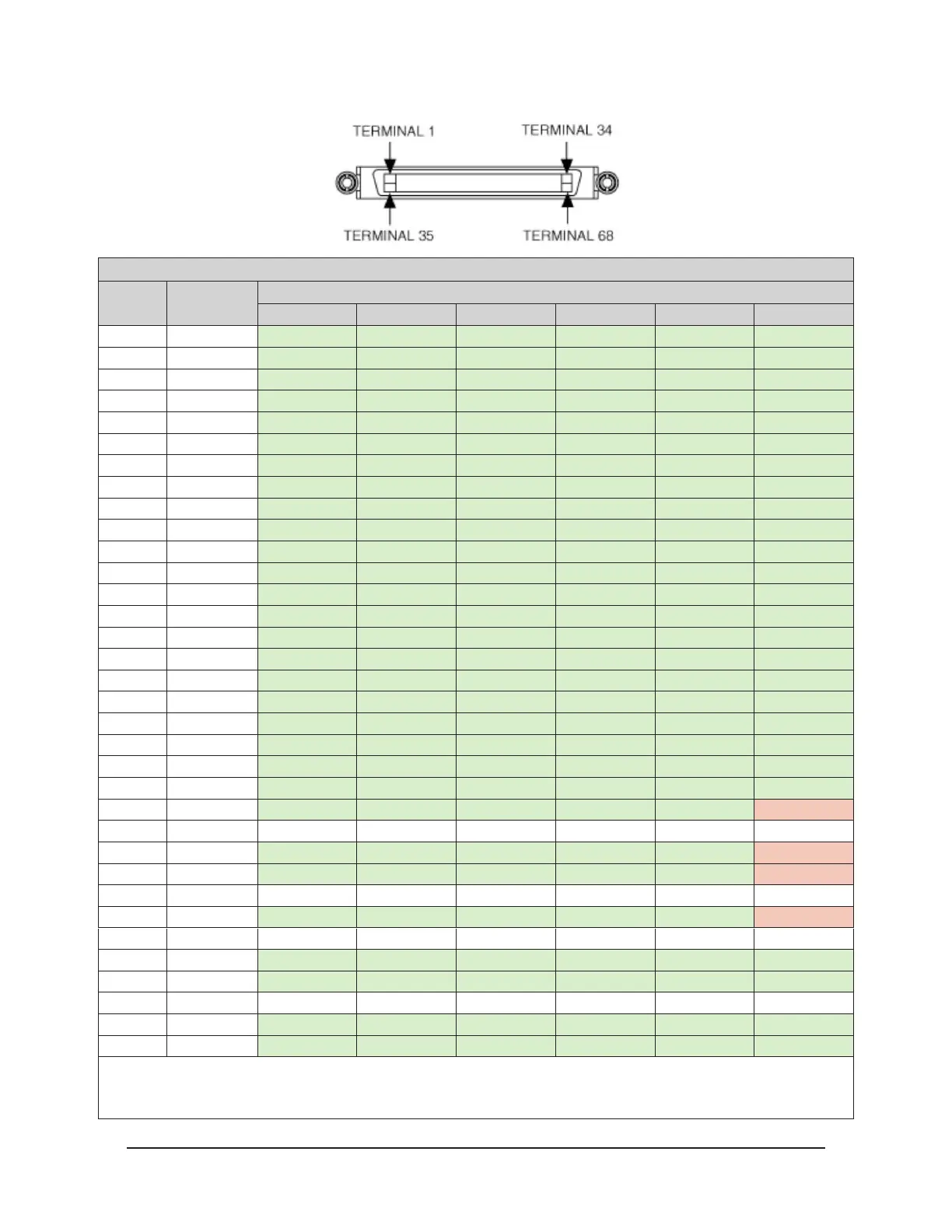

Figure 4.19—Multiple IFPS Box Connector 0 and Connector 1
Table 4.11—IFPSMC Box Connector 0 User Signals Available
Pin
Number
Signal
IFPS Model
IFPSMC-1 IFPSMC-2 IFPSMC-3 IFPSMC-4 IFPSMC-5 IFPSMC-6
1 P2.6 Available Available Available Available Available Available
2 P2.4 Available Available Available Available Available Available
3 P2.1 Available Available Available Available Available Available
4 D GND Available Available Available Available Available Available
5 P1.6 Available Available Available Available Available Available
6 P1.5 Available Available Available Available Available Available
7 D GND Available Available Available Available Available Available
8 +5V Available Available Available Available Available Available
9 D GND Available Available Available Available Available Available
10 P1.1 Available Available Available Available Available Available
11 P1.0 Available Available Available Available Available Available
12 D GND Available Available Available Available Available Available
13 D GND Available Available Available Available Available Available
14 +5V Available Available Available Available Available Available
15 D GND Available Available Available Available Available Available
16
P0.6 Available Available Available Available Available Available
17 P0.1 Available Available Available Available Available Available
18 D GND Available Available Available Available Available Available
19 P0.4 Available Available Available Available Available Available
20 NC Available Available Available Available Available Available
21 AO 1 Available Available Available Available Available Available
22 AO 0 Available Available Available Available Available Available
23 AI 15 Available Available Available Available Available TC1-SG3(-)
24 AI GND
25 AI 6 Available Available Available Available Available TC1-SG2(+)
26 AI 13 Available Available Available Available Available TC1-SG1(-)
27 AI GND
28 AI 4 Available Available Available Available Available TC1-SG0(+)
29 AI GND
30 AI 3 Available(+) Available(+) Available(+) Available(+) Available(+) Available(+)
31 AI 10 Available(-) Available(-) Available(-) Available(-) Available(-) Available(-)
32 AI GND
33 AI 1 Available(+) Available(+) Available(+) Available(+) Available(+) Available(+)
34 AI 8 Available(-) Available(-) Available(-) Available(-) Available(-) Available(-)
Notes:
1. TC-SGx(x) = Transducer Connection number - Signal (SGx) - positive (+) or negative (-) input
2. Available (x) = User signal available - positive (+) or negative (-) input
