ATI Technologies Axia80-M20 User Manual

Manual, F/T Sensor, Ethernet Axia
Document #9610-05-Ethernet Axia-09
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel:+1 919.772.0115 • Fax:+1 919.772.8259 • www.ati-ia.com
28
4.5 Low-Pass Filter
The power-on default selection is no ltering. The “lTC” eld in Section 8.4—Console “CAL” | “SET”
Command Fields and Values controls the current lter selection. The cutoff frequency (i.e. -3 dB frequency)
is dependent on the sample rate selection, which is dened in Section 4.3—Sample Rate. The cutoff
frequencies for the different sampling rates are listed in the following table.

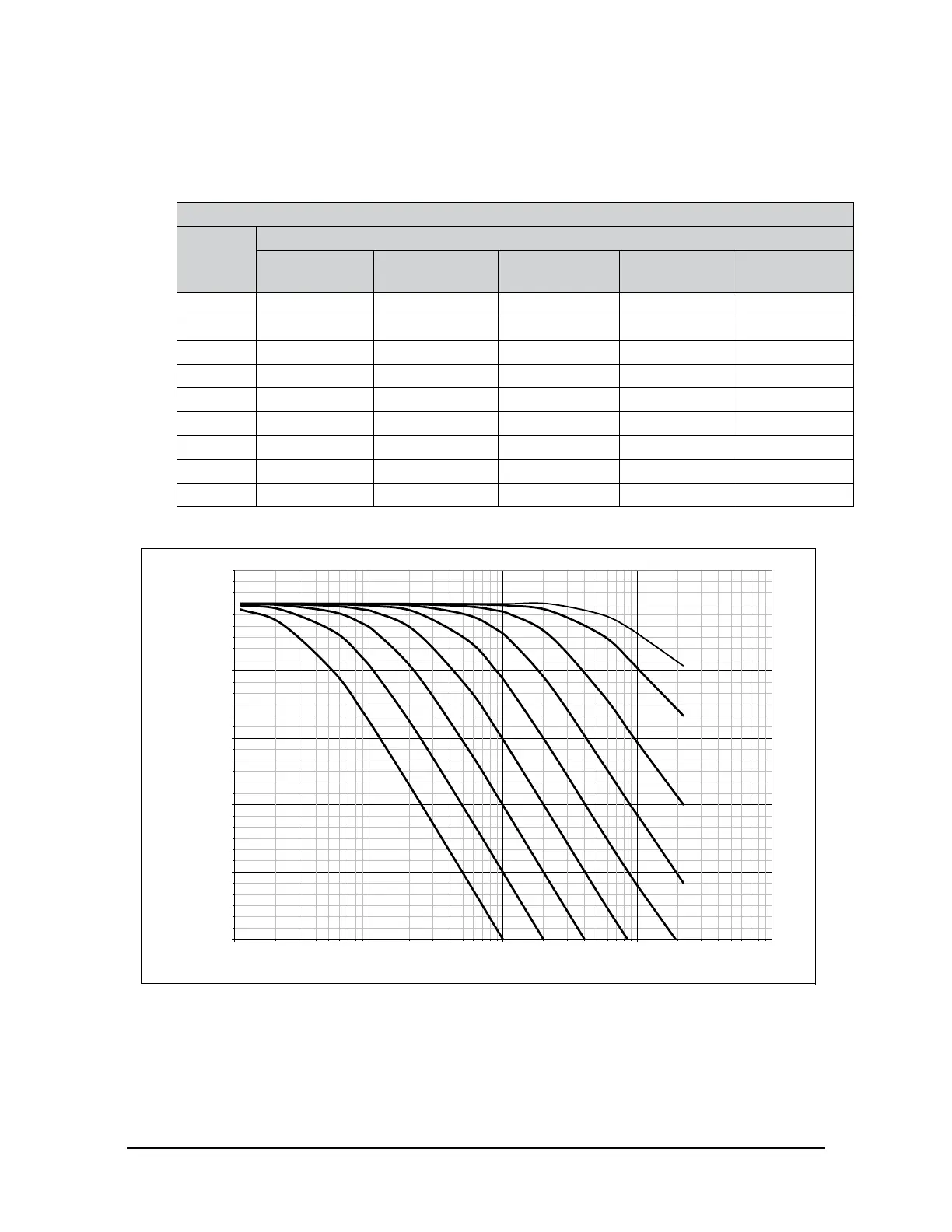

Table 4.6—Low-Pass Filtering
Selected
Filter
-3dB Cutoff Frequency (in Hz)
at 488 Hz
Sample Rate
at 976 Hz
Sample Rate
at 1953 Hz
Sample Rate
at 3906 kHz
Sample Rate
at 7912 Hz
Sample Rate
0 200 350 500 1000 2000
1 58 115 235 460 935.10
2 22 45 90 180 364.04
3 10 21 43 84 169.52
4 5 10 20 40 81.24
5 2.5 5 10 20 39.84
6 1.3 3 5 10 20.31
7 0.6 1.2 2.4 4.7 9.37
8 0.3 0.7 1.4 2.7 5.47
Figure 4.1—Filter Attenuation at 0.5 kHz Sample Rate
-30.0 dB
-24.0 dB
-18.0 dB
-12.0 dB
-6.0 dB
0.0 dB
0 Hz 1 Hz 10 Hz 100 Hz 1000 Hz
0.3 Hz
0.6 Hz
1.3 Hz
2.5 Hz
5 Hz
10 Hz
22 Hz
60 Hz
200 Hz
Frequency
Attenuation
