16. Drawings

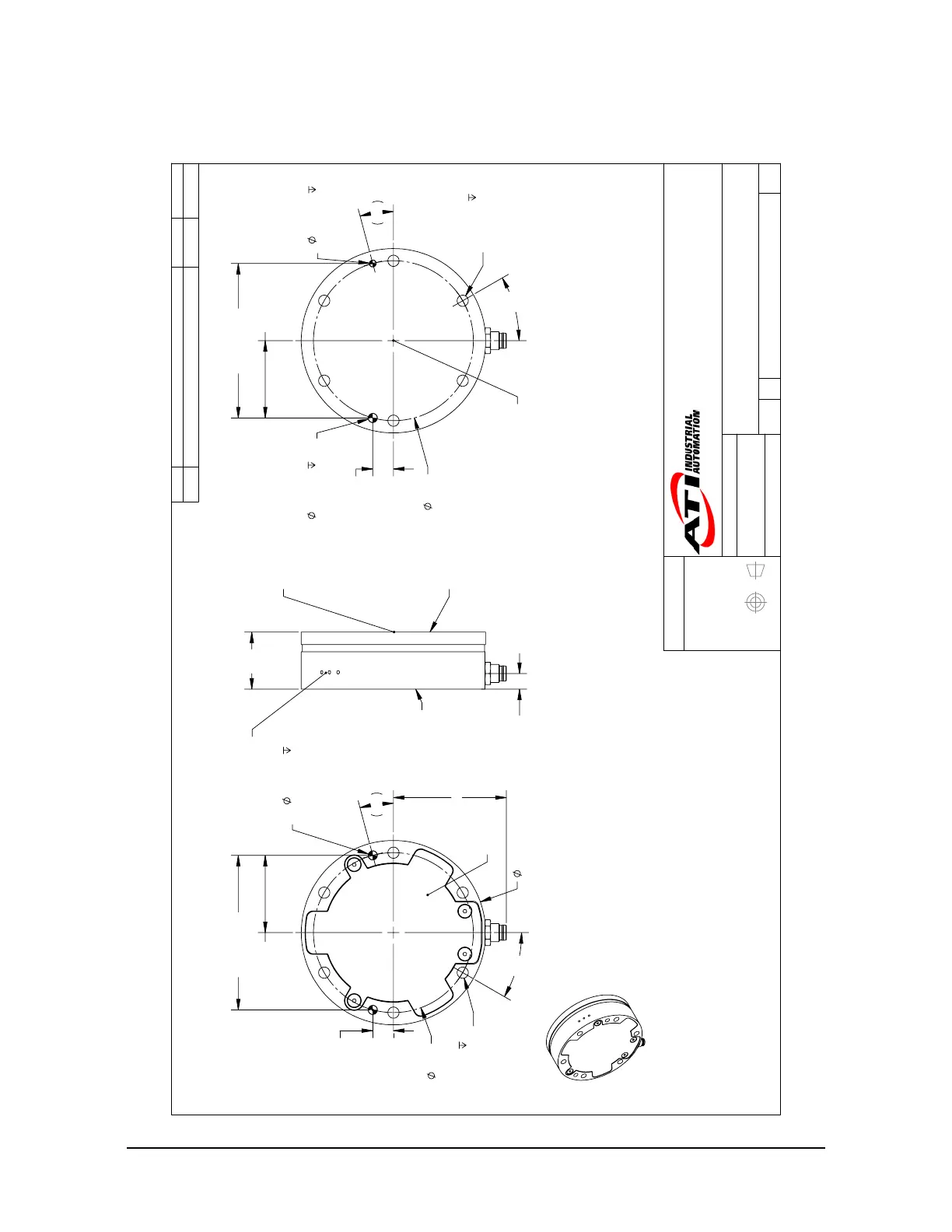

16.1 Axia80 Force/Torque Sensor 9230-05-1543
3rd ANGLE PROJECTION
34.348±0.025
68.697±0.025
4 Slip Fit
5.2
Customer Interface
30°
6X M5x0.8
5.2
Equally Spaced
Customer Interface
B.C.
71.12
3 Slip Fit
5.2
Customer Interface
2X 9.204±0.025
15°
Sensing Reference
Frame Origin
TOOL SIDE
+X
-Y
+Y
-X
(Note
3.
)
(Note
3.
)
6.97
To Connector
C
L
25.4
Sensing Reference Frame Origin
Mounting Side
Tool Side
SIDE VIEW
+Z
Indicator LED
Location
82
15°
30°
6X M5X0.8
8.5
Equally Spaced
Customer Interface
68.697±0.025
34.348±0.025
2X
4 Slip Fit
8.5
Customer Interface
50.2
B.C.
71.12
2X 9.204±0.025
MOUNTING SIDE
Note
5.
+Y
-Y
+X
-X
(Note
3.
)
(Note
3.
)
ISOMETRIC VIEW
Notes:
Material: Aluminum and Stainless Steel
1.
Do not touch internal electronics or instrumentation. This could
2.
damage transducer and will void the warranty.
Do not exceed interface depth, may cause incorrect readings.
3.
For best accuracy, transducer must be mounted to a surface rigid
4.
enough to support loads without deflection
Recessed cover plate surface is not structural. Mount transducer to a
5.
flat surface that makes contact around the perimeter.
-Z
(Note
3.
)
Rev.
Description
Initiator
Date
01
Initial Drawing
TWT
2/7/19
B
1:1
1
2
REVISION
NOTES: UNLESS OTHERWISE
SPECIFIED.
DO NOT SCALE DRAWING.
ALL DIMENSIONS ARE IN
MILLIMETERS.
DRAWN BY:
CHECKED BY:
T. Thurman 12/9/18
K. Schnatter 2/8/19
TITLE
SCALE
SIZE
DRAWING NUMBER
PROJECT #
SHEET OF
9230-05-1543
141028-1
01
PROPERTY OF ATI INDUSTRIAL AUTOMATION, INC. NOT TO BE REPRODUCED IN ANY
MANNER EXCEPT ON ORDER OR WITH PRIOR WRITTEN AUTHORIZATION OF ATI.
