Manual, F/T Sensor, Ethernet Axia

Document #9610-05-Ethernet Axia-09

Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel:+1 919.772.0115 • Fax:+1 919.772.8259 • www.ati-ia.com

7.5 The Errors Field Display of the Demo

On the bottom of the Java

demo application main window, an Errors eld tracks errors that have occurred

and the times they occurred (see Figure 7.8 for an example). For assistance with troubleshooting these

error messages, refer to Table 14.3. If there are excessive “IO Exception: Receive timed out errors”, refer to

Section 14.8—Improving Ethernet Throughput.

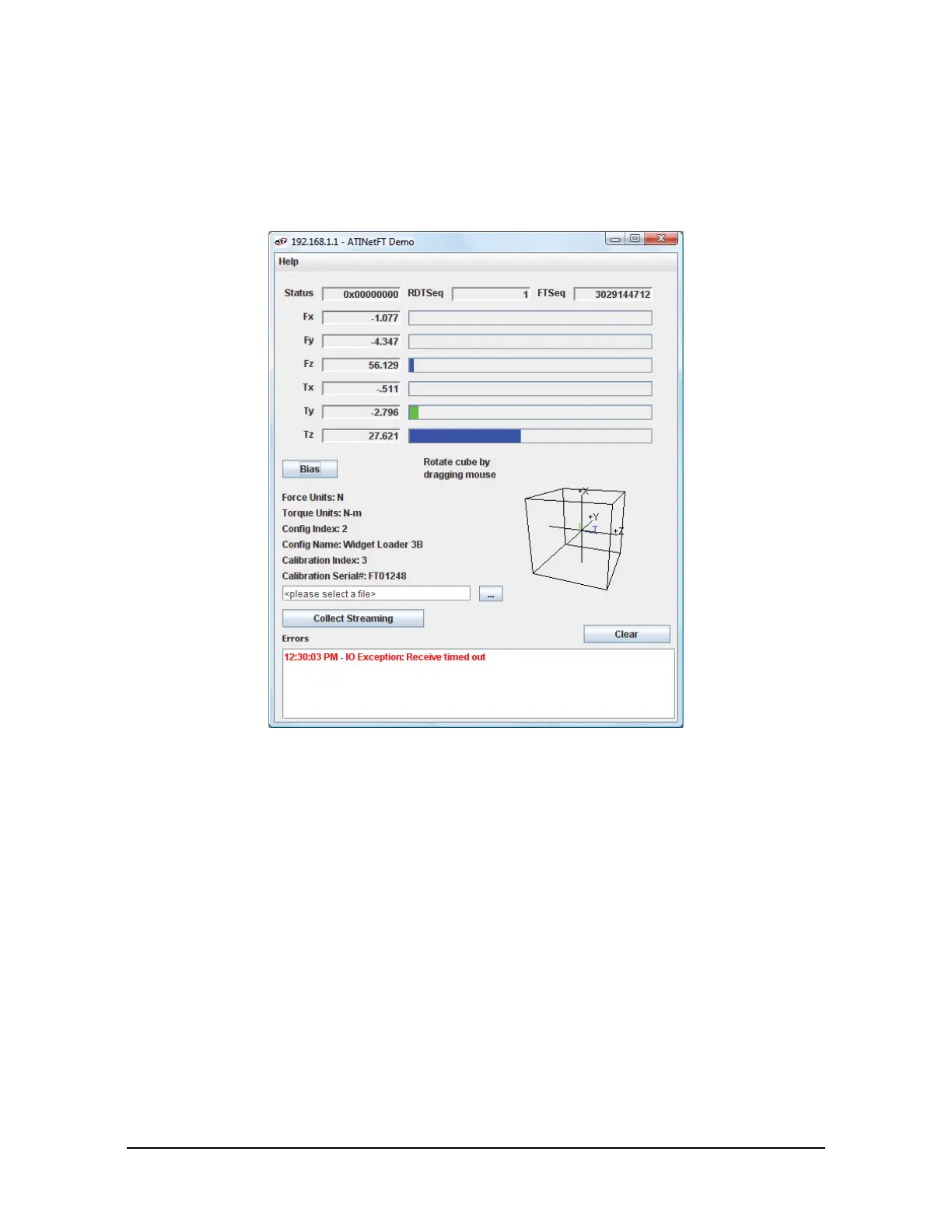

Figure 7.8—Java

Demo Application with an Error Message

7.6 Developing a Customized Java

Application

Experienced Java

programmers can develop Ethernet F/T applications by using Java

source code that is

in the 9030-05-1026 directory, which is sent to the user upon receipt of the Ethernet Axia sensor. The source

code for the Java

demo is also on the ATI website at: http://www.ati-ia.com/library/download.aspx.
