ATI Technologies Axia80-M20 - Configuring the Sensor with the Ethernet Axia Web Pages

Manual, F/T Sensor, Ethernet Axia
Document #9610-05-Ethernet Axia-09
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel:+1 919.772.0115 • Fax:+1 919.772.8259 • www.ati-ia.com
45
6. ConguringtheSensorwiththeEthernetAxiaWebPages
The ATI Ethernet Axia F/T sensor web pages provide full conguration options for the sensor. On the left side of
the website, a menu bar has buttons that link the user to other pages for settings and sensor information.
The web pages use simple HTML browser scripting and do not require plug-in technology. If browser scripting
is disabled, some non-critical user interface features are not available. The demo program is written in Java
®
and
requires Java
®
to be installed on the computer.
The system status is displayed on all pages near the top of the page. This is the system status at the time the
user loaded the page. To display the current system status the user must reload the page. Possible system status
conditions are listed in Section 4.8—Status Code.
Screenshots and a summary of the page’s functionality or description of terms for each of the web pages is in the
following sections.

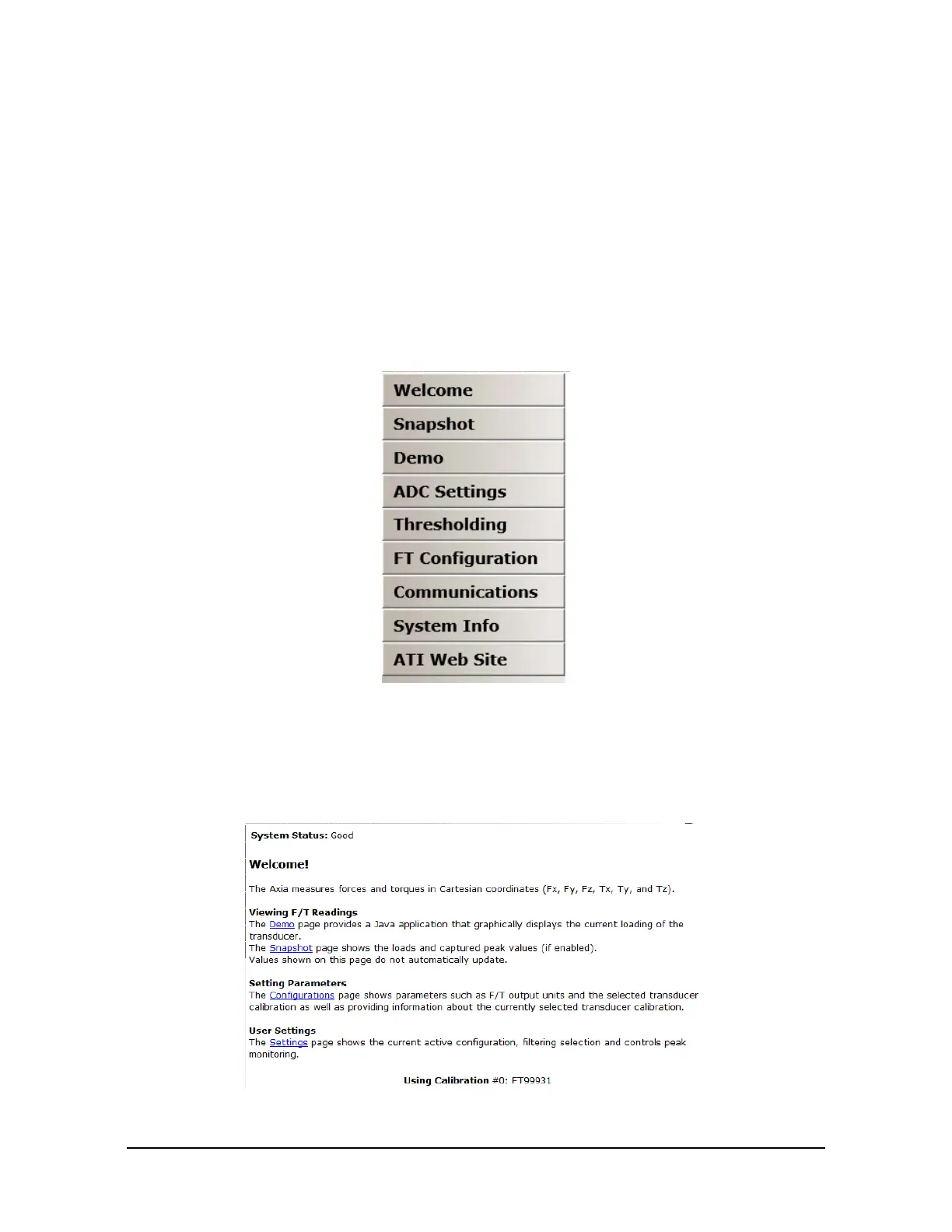

Figure 6.1—Menu Bar
6.1 Welcome Page (index.htm)
When the user enters the sensor’s IP address into the browser address eld, the Ethernet F/T Welcome page
appears. The Welcome page gives an overview of the Ethernet Axia’s main functions. The bottom of the
page lists the calibration used by this conguration.
Figure 6.2—Welcome Page
