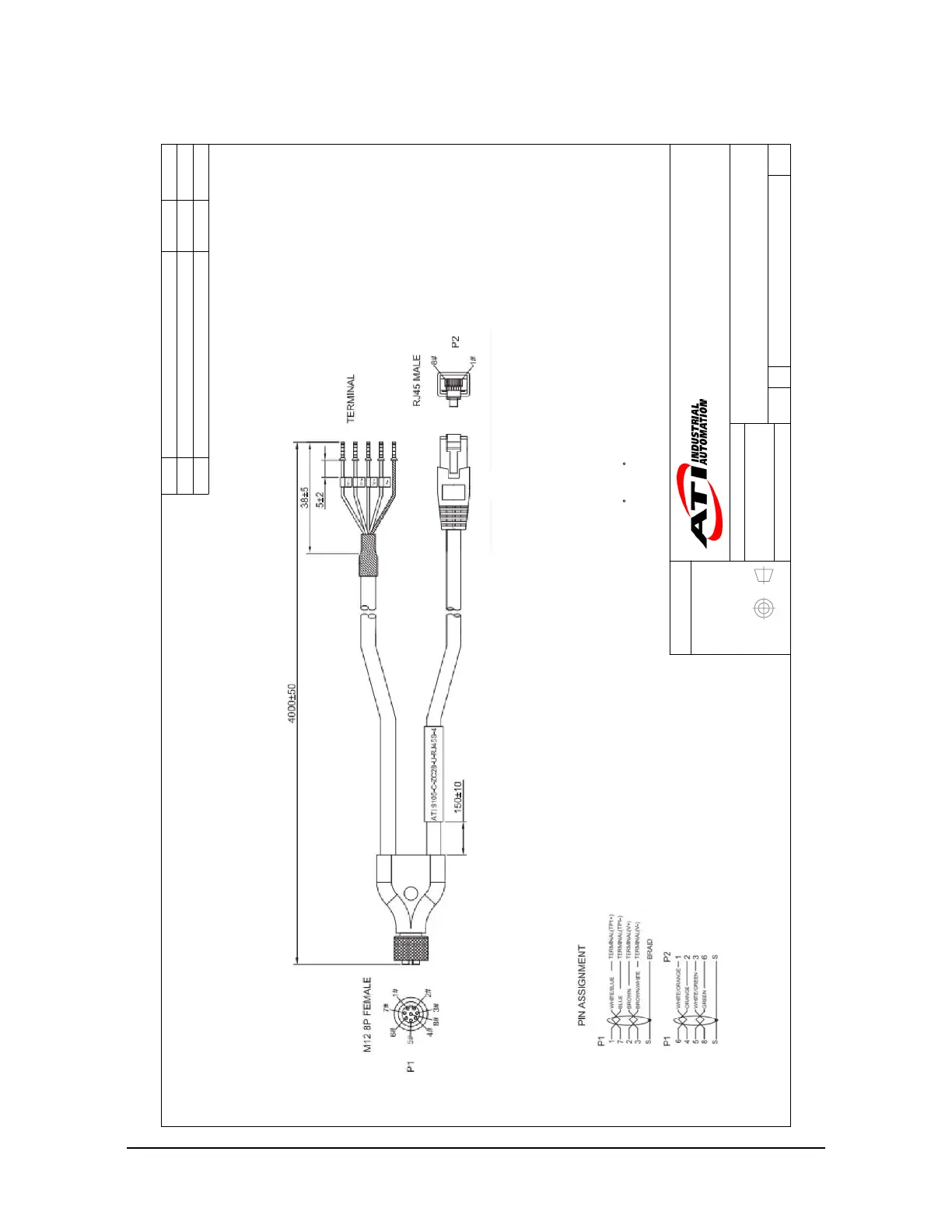

16.3 Cable, 8-pin M12 Split to Shielded RJ45 and Unterminated power, ground,
shield, 4 m, 9105-C-ZC28-U-RJ45S-4
3rd ANGLE PROJECTION
Notes:
RoHS Compliance
1.
IP64 Rated
2.
Operating Temperature: -10
C to 80
C
3.
Voltage Rating: 60V (Max.)
4.
Current Rating: 1A (Max.)
5.
REV.
DESCRIPTION
INITIATOR
DATE
01
Drawing release
RTD
2/11/2019
02
ECO 17819; Updated rating to IP64.
MLS
4/10/2019
B
1:1
1 1
REVISION
NOTES: UNLESS OTHERWISE
SPECIFIED.
DO NOT SCALE DRAWING.
ALL DIMENSIONS ARE IN
MILLIMETERS.
DRAWN BY:
CHECKED BY:
R.Dupree 02/11/19
A.Gluesic 02/11/19
TITLE
SCALE
SIZE
DRAWING NUMBER
PROJECT #
SHEET OF
9230-05-1555
-
02
PROPERTY OF ATI INDUSTRIAL AUTOMATION, INC. NOT TO BE REPRODUCED IN ANY
MANNER EXCEPT ON ORDER OR WITH PRIOR WRITTEN AUTHORIZATION OF ATI.
1031 Goodworth Drive, Apex, NC 27539, USA
Tel: +1.919.772.0115 Email: info@ati-ia.com
Fax: +1.919.772.8259 www.ati-ia.com
ISO 9001 Registered Company
Cable, 8 pin M12 shielded shell split to shielded RJ45 and
unterminated power, ground, shield, sync, 4m
