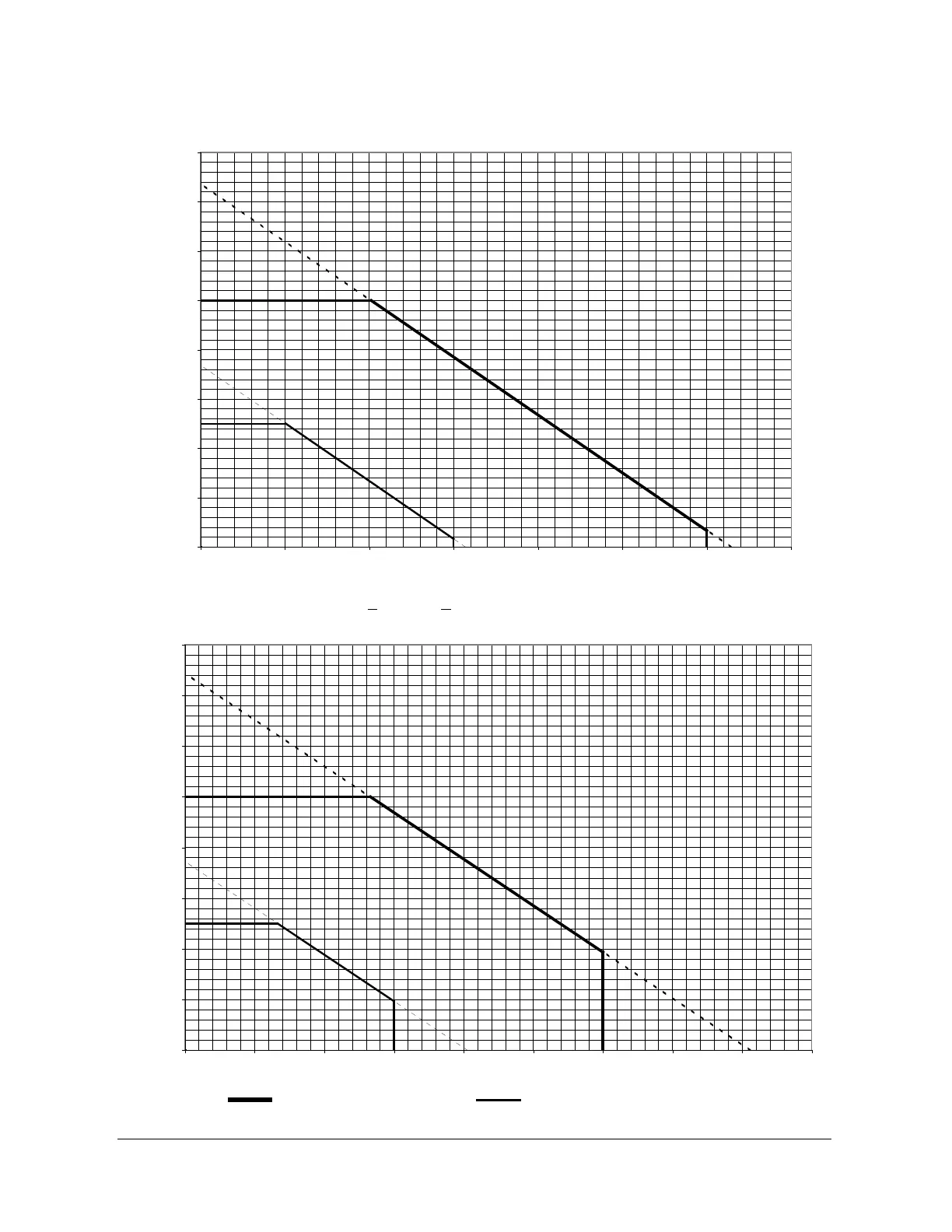

7.3.4 Nano25 (SI Calibration)
0
50
100
150
200
250
300
350
400
01234567
Tz (Nm)
Fxy (N)
Note: Applying moments beyond +
30 in-lb (+3.4Nm) in Tz can cause hysteresis and permanent zero-
point change in this transducer
0
200
400
600
800
1000
1200
1400
1600
0123456789
Txy (Nm)
Fz (N)
Nano25 SI-250-6 Nano25 SI-125-3
