F/T DAQ Installation and Operation Manual
Document #9610-05-1017-06
ATI Industrial Automation, 1031 Goodworth Drive, Apex, NC 27539 USA +1-919-772-0115 www.ati-ia.com
63

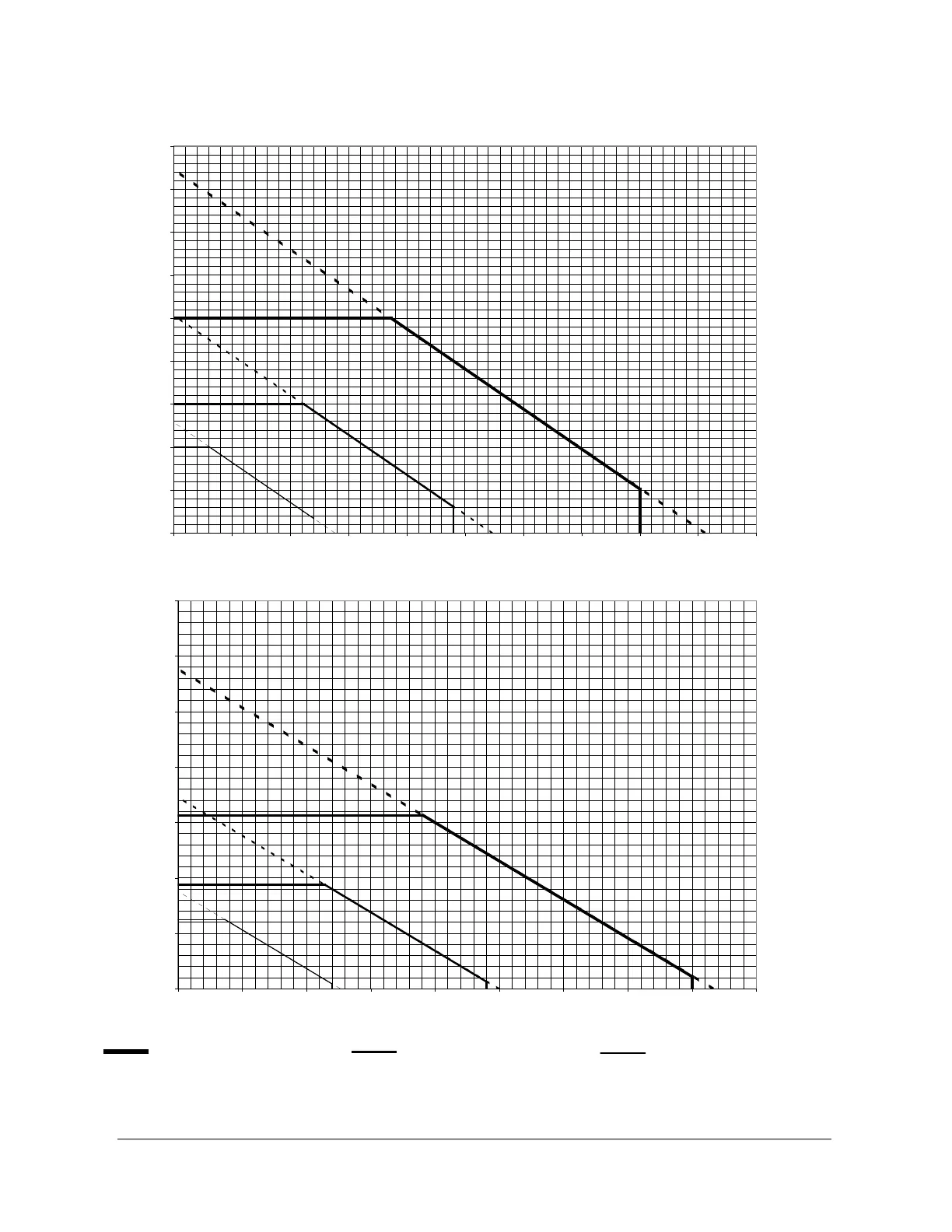

7.3.18 Omega160 (SI Calibration)
0
500
1000
1500
2000
2500
3000
3500
4000
4500
0 50 100 150 200 250 300 350 400 450 500
Tz (Nm)
Fxy (N)
0
2000
4000
6000
8000
10000
12000
14000
0 50 100 150 200 250 300 350 400 450
Txy (Nm)
Fz (N)
Omega160 SI-2500-400 Omega160 SI-1500-240 Omega160 SI-1000-120
