ATI Model F12/D Gas Transmitter Part 3 Electrical Connections
26
O&M Manual (Rev-H)
3.15 AC or 12-30 VDC Powered
To Aux On
Front Lid
RS232/485 Supply (+)
TB6
TB4
14
Optional A17/B14
Receiver System
(or other)
To J4a On
Power Supply
PCB
N
2
3
4
5
6
7
1
8
TX / A(-)
J4a
RS232/485 Supply (-)
RX / B(+)
L
G
Comm
Optional DCS or
SCADA System
(RS232/485)
RS232/485 Supply (-)
1 TB3
12345678
RS232/485 Supply (+)
(L) 115/230 VAC
(N) - Neutral
(G) - Earth Ground
(+) - 12-30 VDC
(-) - Neutral
(G) - Ground
RL3RL2RL1

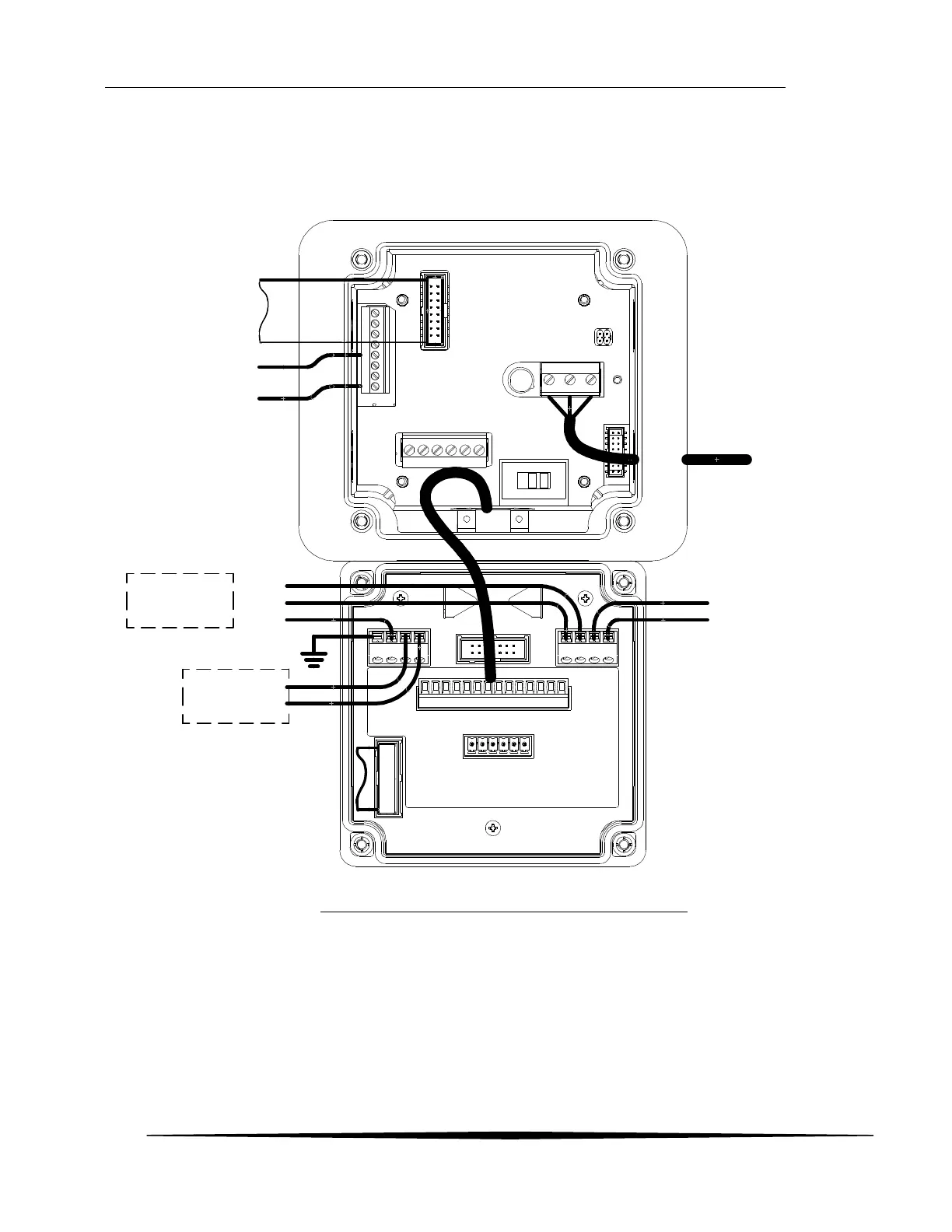

Figure 25 AC or 12-30 VDC Powered Relay Board Wiring
