ATI Model F12/D Gas Transmitter Part 3 – Electrical Connections

O&M Manual (Rev-H)

3.17 Communications Jumper Setting

Units with an optional communications interface use a jumper to select between RS-232, RS-485, and

RS-485 with termination. The desired physical interface is set by positioning jumper JP5 as shown

below. The orientation does not matter, only its position.

Protocol

Alignment

RS-232

Top (toward JP5 label)

RS-485

Unterminated

Middle

RS-485

With termination

Bottom (away from JP5 label)

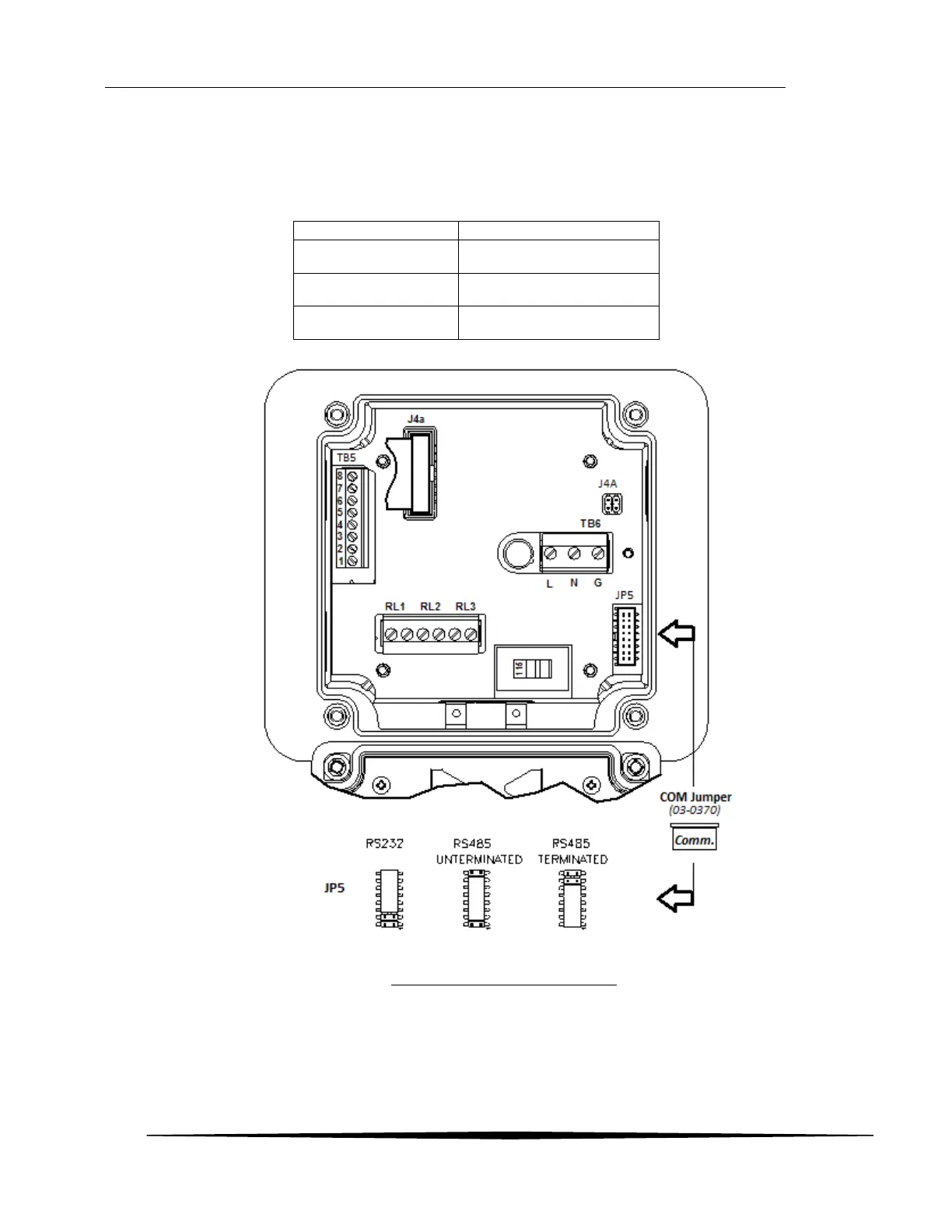

Figure 28. Comm. Interface Jumper
