A small chart icon shown below an item in the list means this input signal is
shown on the chart at the main screen. Any analog input can be selected.
Selecting another input signal as main chart signal

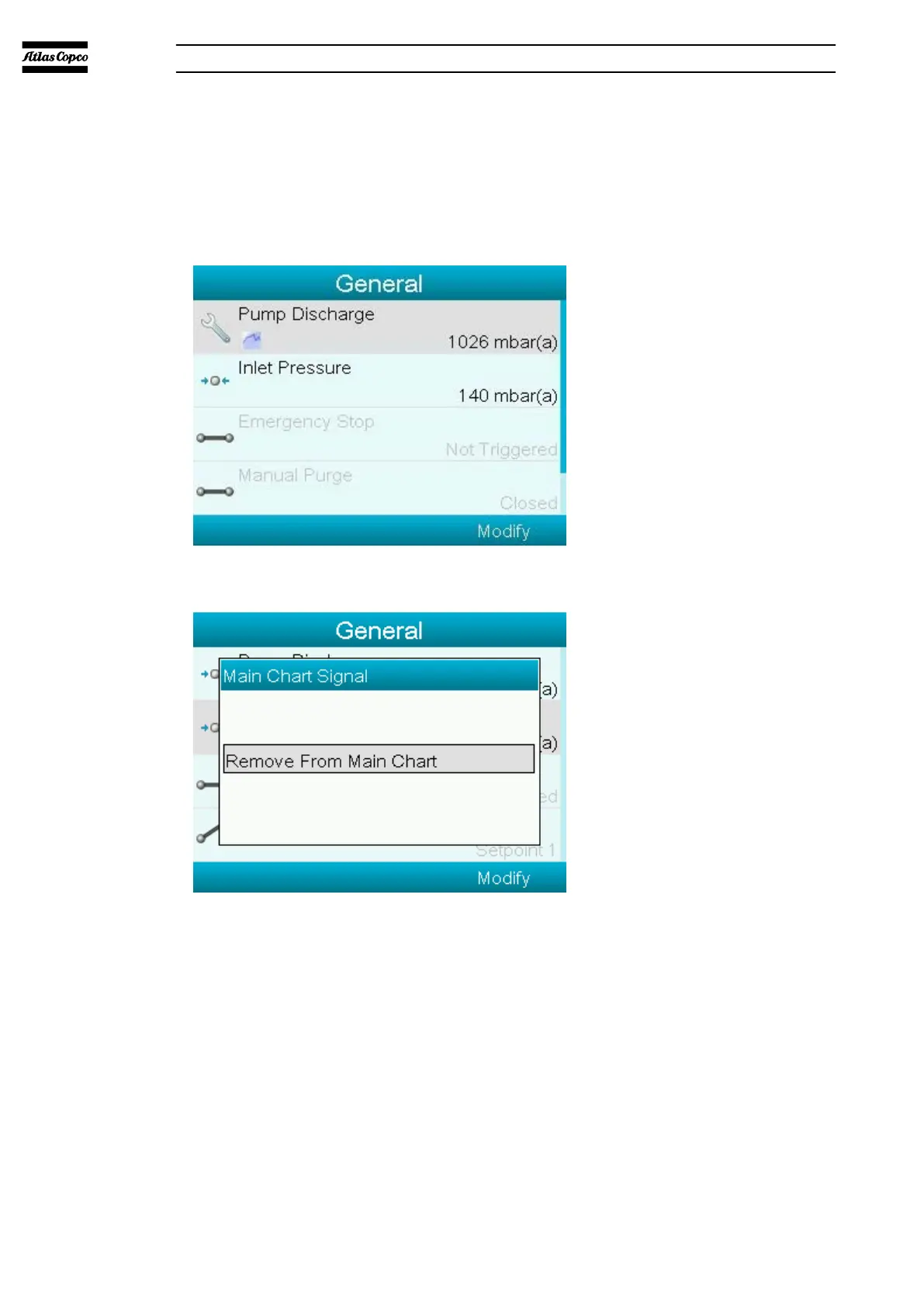

With the Modify button selected (light grey background in above screen), push
the Enter key on the controller. A screen almost the same as the one below is
shown:
The first item in the list is selected (in this example, Inlet Pressure). To change
the selection, push the Enter key again. A pop‑up window opens:
Push the Enter key again to remove this input from the chart. Another pop-up
window opens (confirmation):
