FlexiROC T35 R/T40 R 5 Controls
53 No: 3171473547.1 en
b Bar graph showing engine temperature. The bar
changes colour when changing to warning, first
yellow warning then red warning.
c Bar graph showing hydraulic oil temperature. The
bar changes colour when changing to warning.
First yellow warning then red warning.
d Bar graph showing compressor temperature. The
bar changes colour when changing to warning.
First yellow warning then red warning.
3 Directional instrument
The directional instrument has two display modes, one graphic and one digital. Switch
between the modes with function key F2.
The display mode selected with F2 will apply for automatic switching between directional
instrument/drilled length from the remote control box.

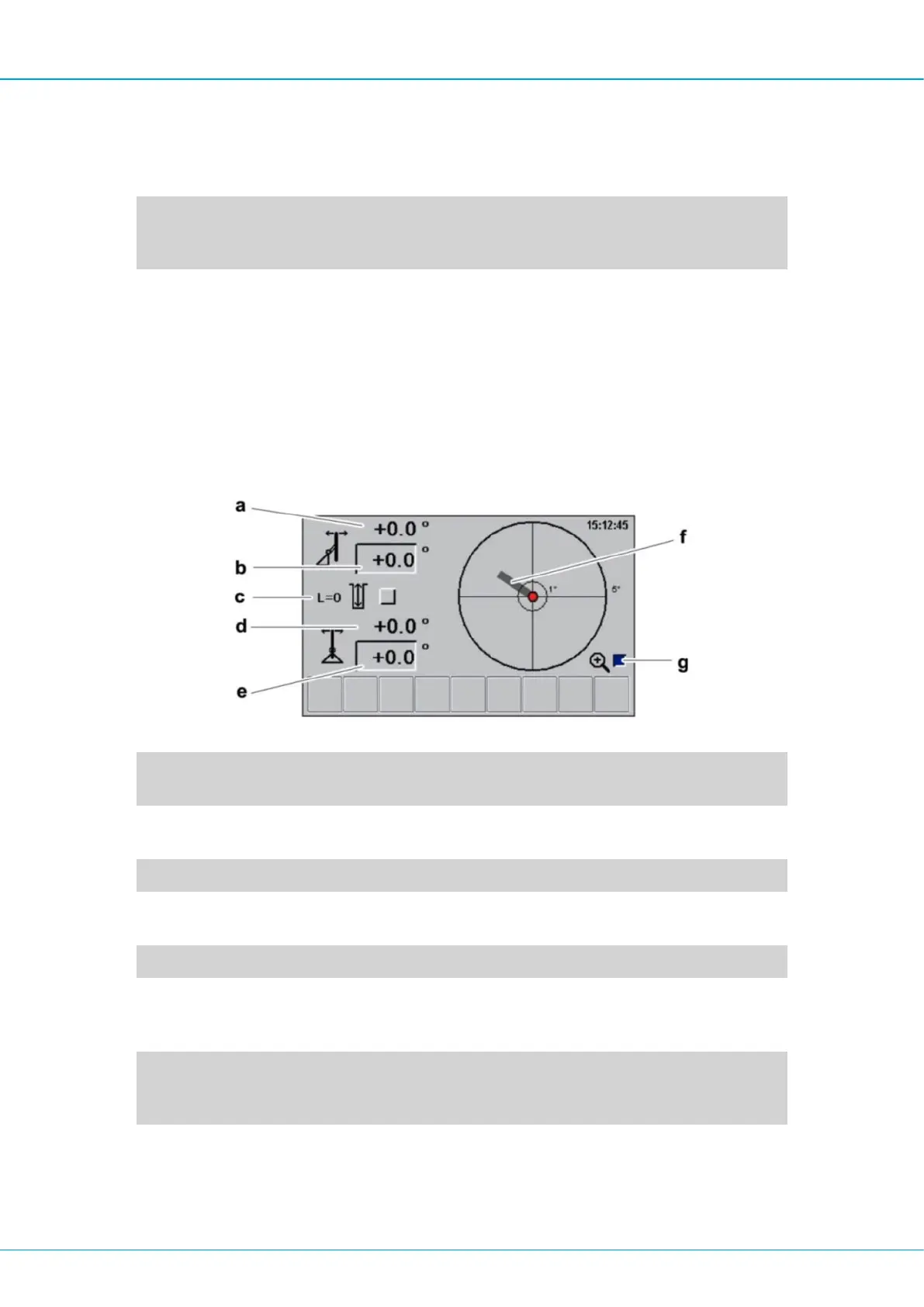

Directional instrument - graphic display mode.
a Counter showing actual angle of inclination in rela-
tion to required blast direction
b Shows required inclination angle of the feeder in
relation to the blast direction
c Reset of counter for hole length/vertical depth
d Counter showing actual lateral angle of the feeder
in relation to required blast direction.
e Shows desired lateral angle of the feeder
f Shows inclination and lateral angles of the feeder
graphically. Follow the direction on the line with
the lever to obtain the correct position.
g Activating Auto Zoom: when the deviating angle is
less than 1° the outer circle changes over to indic-
ate 1° instead of 5°.
