l Run the rock drill cradle all the way up
l Go to menu 7.3.1 "Sensor calibration" and reset "Cradle position"(e).
l Go to the "Sensor information" menu and lower the cradle slowly until sensor
B104 gives an indication (0 becomes 1)
l Go back to the "Sensors/calibration" menu and read off the value in "Cradle
position"
l Go to the "Rock drill cradle" menu and enter the value that was in "cradle pos-
ition"
The rock drill cradle is now calibrated.
!
NOTE: If box (b) is selected then the distance is set automatically after the rock drill
has been moved from the top position on the feeder down to the calibration sensor.
7.3.3 Drill rod

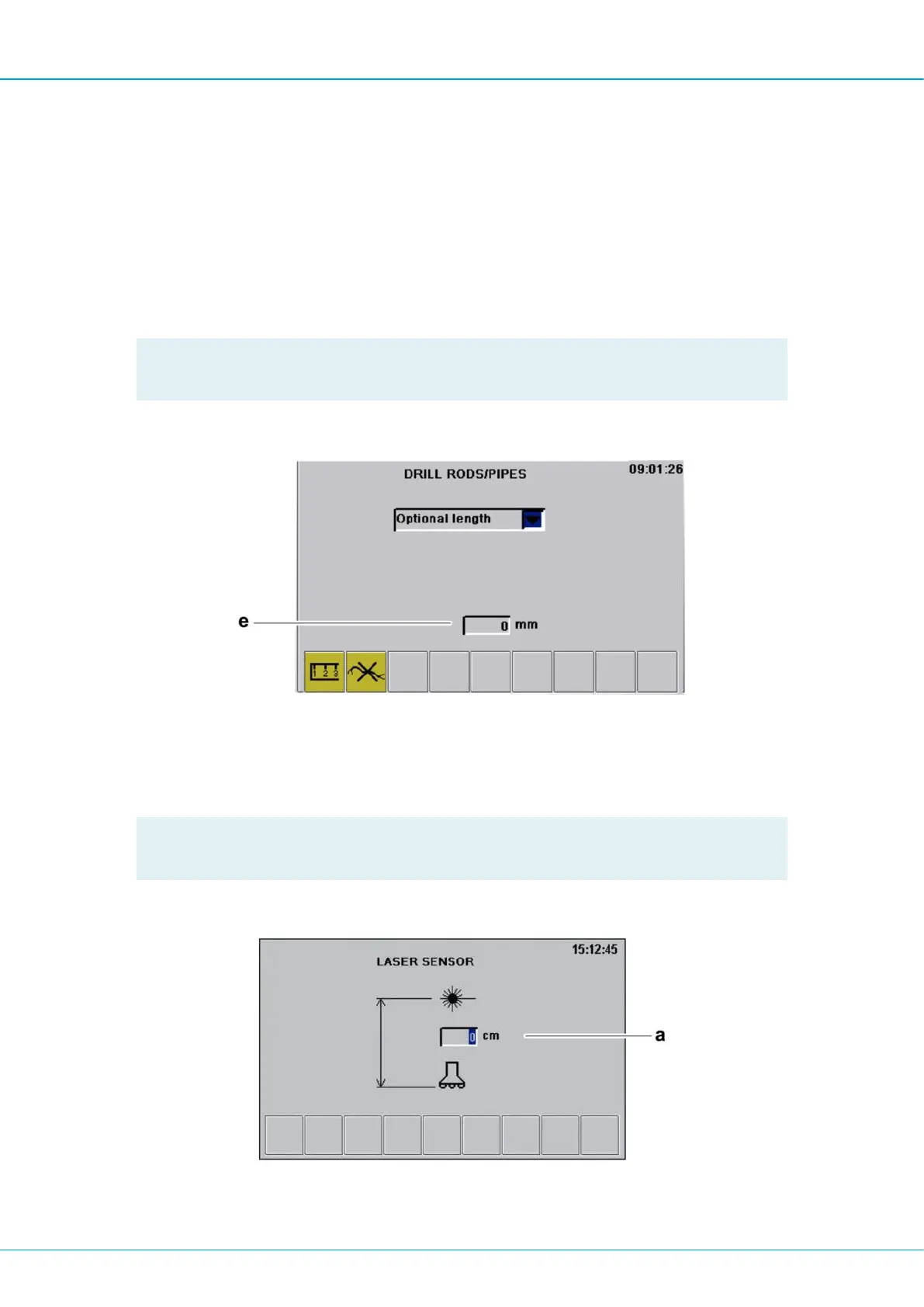

Drill rod.
Select drill rod length using the arrow keys and confirm with Enter.
It is also possible to set the length of the drill steel manually by selecting (e) and then set-
ting a user value.
!
NOTE: If no selection is made then the hole length measurement will not work.
7.3.4 Laser sensor
Laser sensor
To Next Page
