Wow and flutter of 3-head tape machines should not be measured
during simultaneous record-reproduce mode, since this will result in
spectral nulls which can give erroneously low readings.
XTALK (Crosstalk)
The XTALK measurement function is selected by pressing the
FUNCTION XTALK key.
The Crosstalk measurement function measures the amount of signal
that passes from a driven channel (or channels) to a non-driven
channel. On a stereo device, this is also referred to as the stereo
separation. A bandpass filter is used to tune only the driven frequency;
this rejects the effects of wideband noise on the measurement.

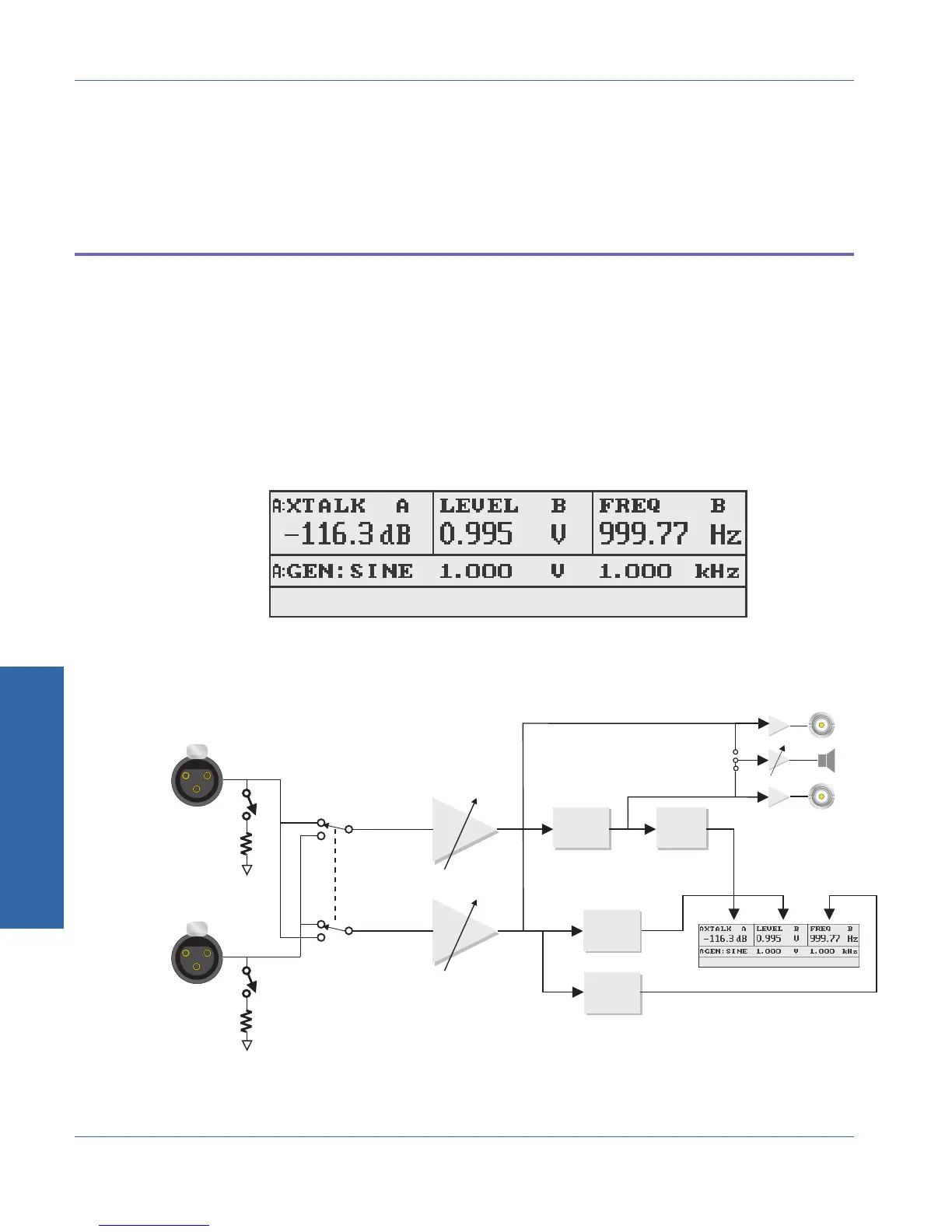

Figure 4-30. Main panel in XTALK function
FREQUENCY
COUNTER
PRIMARY
READING
DETECTOR
INPUT
RANGING
INPUT
TERMINATION
INPUT
TERMINATION
LCD DISPLAY
INPUT
RANGING
SECONDARY
READING
DETECTOR
INTERNAL
JUMPER
INPUT
MONITOR
SPEAKER/
HEADPHONE
READING
MONITOR
CHANNEL A
CHANNEL B
NON-DRIVEN
CHANNEL
DRIVEN
CHANNEL
TUNED
BANDPASS
FILTER
Figure 4-31. Block diagram of Analog Crosstalk measurement
4 Functions
XTALK (Crosstalk) Function Descriptions
4-34 ATS-1Access User's Manual
