Generator Output and Analyzer Input connectors
The analyzer’s analog inputs and the generators analog outputs are
normally mounted on a subpanel mounted on the front of the
instrument, and are shown that way in the figures in this manual.
However, this subpanel can be interchanged with the speaker panel on
the rear if preferred. Refer to Appendix C for procedure.
The connectors on this subpanel are normally BNC connectors and
banana jacks. Panels with alternative connector styles may be
substituted when the instrument is ordered, or changed later in the
field. The alternative styles include:
.
XLR and banana jack connectors;
.
WE-310 tip-ring-sleeve and banana jack connectors;
.
1/4-inch phone and banana jack connectors.
CONNECT NEGATIVE TERMINAL
TO GND TERMINAL FOR
NON-FLOATING APPLICATIONS
GND
AB
AB
ANALYZER INTPUTS
GENERATOR OUTPUTS
CAT II
350Vpk MAX
!
GND
ATS-BNC

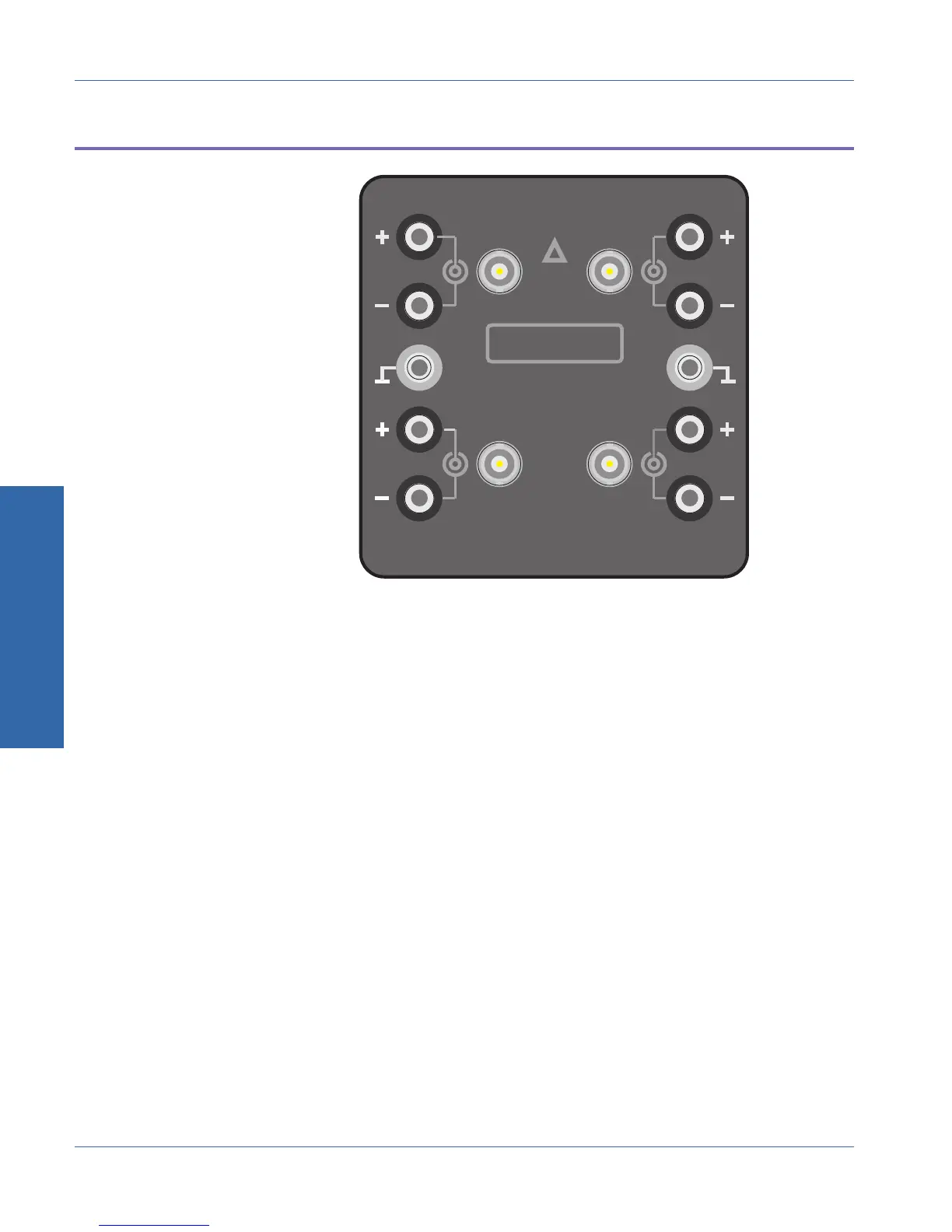

Figure 3-11. Standard BNC Connector Panel
& For connector
and cabling
considerations, see
page .
