Audio Precision ATS-1 Access User Manual

Changing the Line Voltage Selection
To change the line voltage selection, proceed as follows:
1. Remove the cover by inserting a small blade screwdriver (or
similar tool) into the Removal notch (shown on the following
figure) and prying gently.
2. Pull the Voltage selector card straight out of the housing using
needlenose pliers. Do not pull on the indicator pin.
3. Orient the selector card so that the desired input voltage is
readable along the bottom of the card. Then orient the indicator
pin to point upward, with the plastic indicator pin assembly
seated in one of the notches on the edge of the board. The
voltage selector card and indicator pin should now be in one of
the positions shown on the following figure.
Housing
Voltage selector card
Indicator pin
Fuse block
Cover
Removal notch

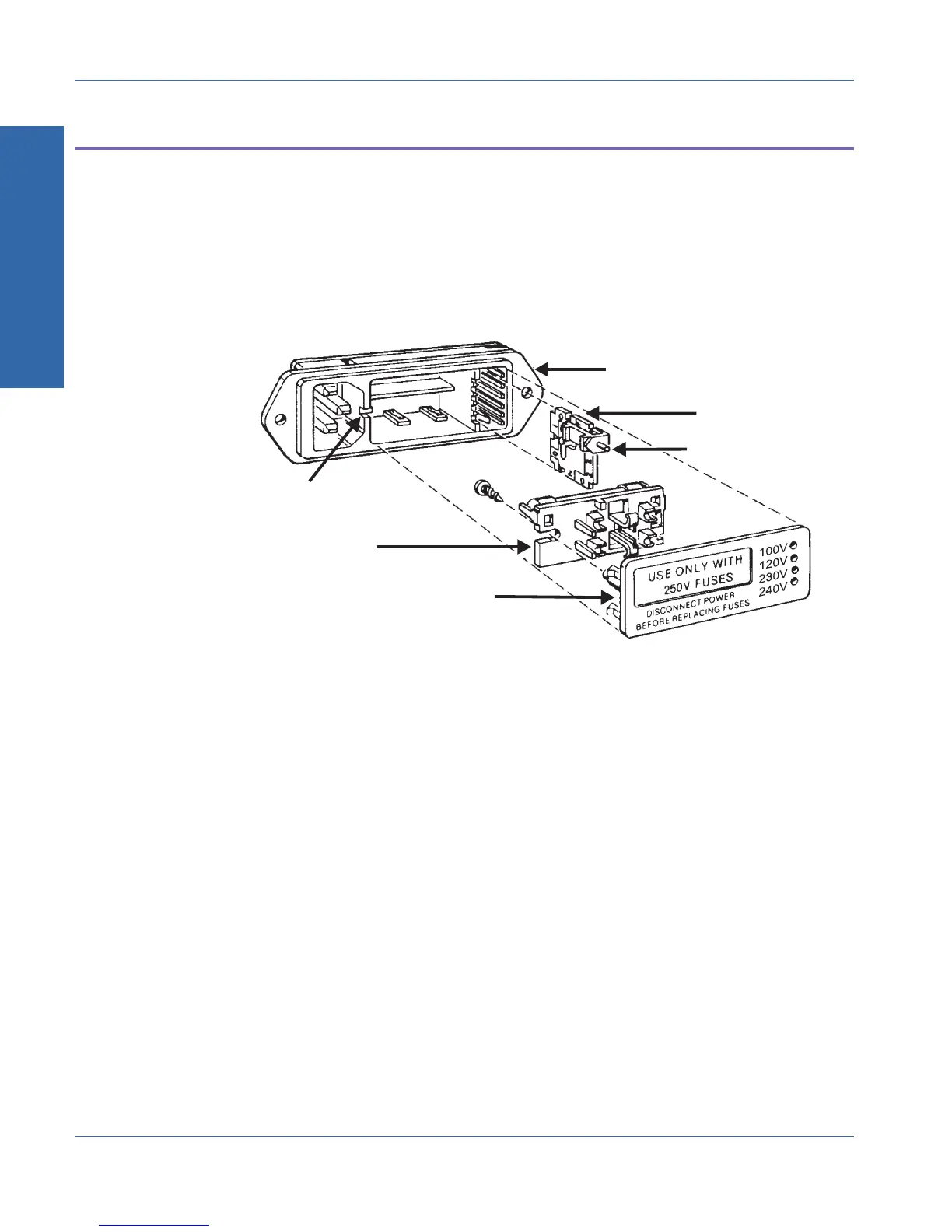

Figure A-2. Exploded Diagram of Power Entry Module
