Saving and Recalling Setups
The ATS-1 Access has the facility of storing thirty different test setups
in memory. Each of these setups stores all the settings necessary to
repeat a measurement exactly, so that a commonly-run test can be
stored and recalled with only a few keypresses. The current sweep
data is also stored, so that field test results can be taken home for
printing, or so that a sample set of data is on hand for a repeated test.
Each test setup can be given a name of up to 15 characters (letters,
numbers, or special symbols) and is automatically stamped with the
date and time it was saved.
The Recall and Save facilities are provided by the Recall/Save Panel.
To display this panel, press the button marked RECALL SAVE. The
following panel should appear:
This panel shows the names of five of the thirty stored test setups. The
central test setup is currently selected, and is highlighted in inverse
video. If you press RECALL or SAVE, this is where the setup will be
stored, or from where it will be recalled. You can use the upper right
and lower right soft keys (marked SCROLL UP and SCROLL DOWN)
to step through the setups to highlight the one to recall or store. The
lower center soft key (PAGE) will step through the test setups five at a
time.
To abandon the recall or save operation, press the upper center soft
key (CANCEL), and you will be returned to the Main Panel without
any changes to the instrument settings or test setup memories.
Pressing the dBr key while in the Recall/Save panel will change the
upper left and right soft key functions to support deleting and
write-protecting saved setups. Normally, the upper left soft key will
delete the setup and the upper right soft key will write-protect the
setup, which will prevent the setup from being changed. If the setup is
already write-protected, the upper right soft key will change to remove

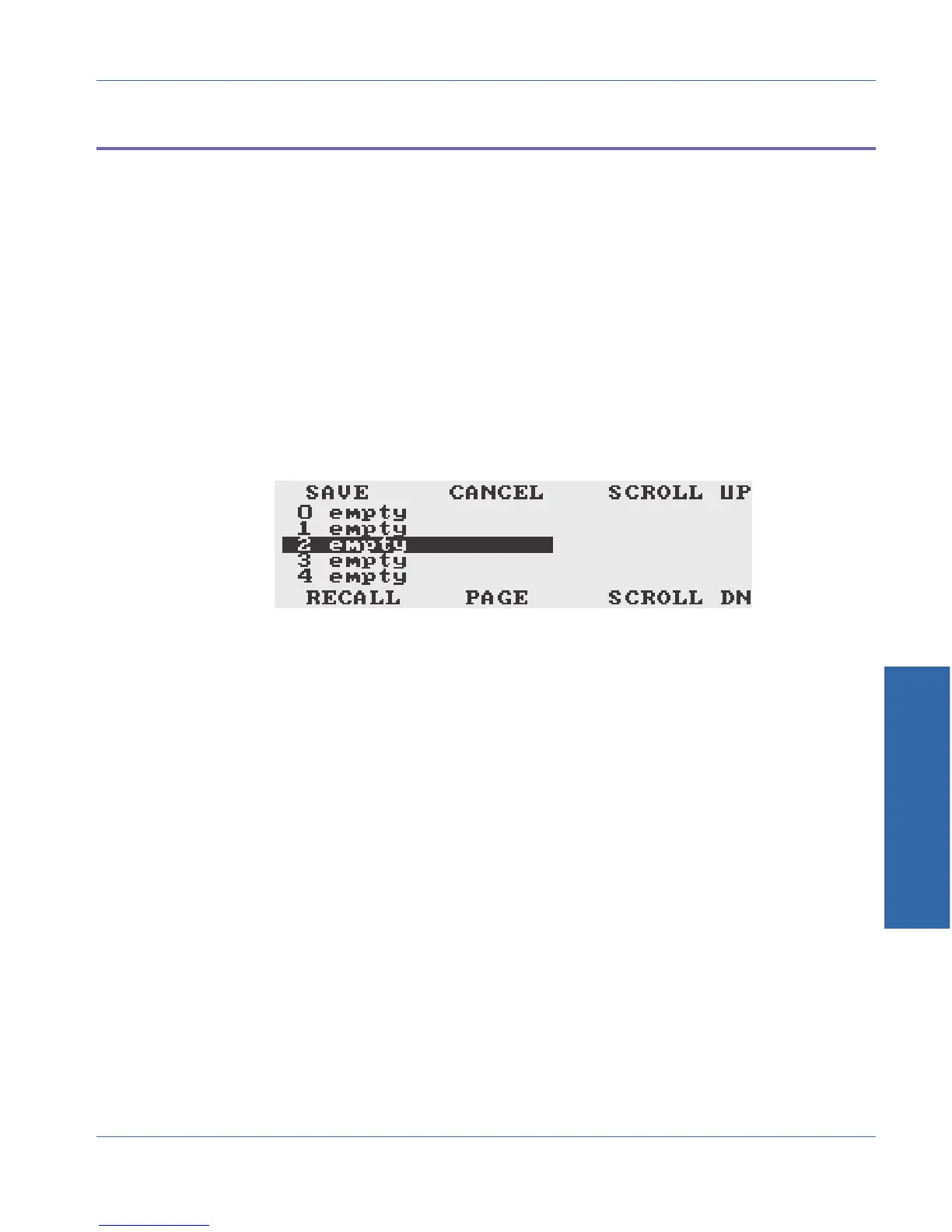

Figure 4-45. Recall/Save panel
4 Functions
Function Descriptions Saving and Recalling Setups
ATS-1Access User's Manual 4-51
