Unbalanced Connections with the XLR Connector Panel
Many devices use unbalanced connectors, such as the RCA (phono)
connector, the BNC, or the 1/4" Phone jack.
When connecting an unbalanced device with the XLR connector
panel, it is recommended that two-conductor shielded cable be used.
This offers higher immunity to noise and interference than
single-conductor cable. Figure 3-18 shows the preferred cable
connections. The generator should be set to an unbalanced
configuration by selecting 50 Unbal on the Generator panel.
1 2
3
XLR Male
or Female
RCA/Phono Plug
2 Conductor shielded cable
Shield not connected this end
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Shield not connected this end
Sleeve
Tip
1/4" Phone Plug
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Shield not connected this end
BNC Connector
Examples:
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Shield not connected this end
To Signal Conductor
To Ground

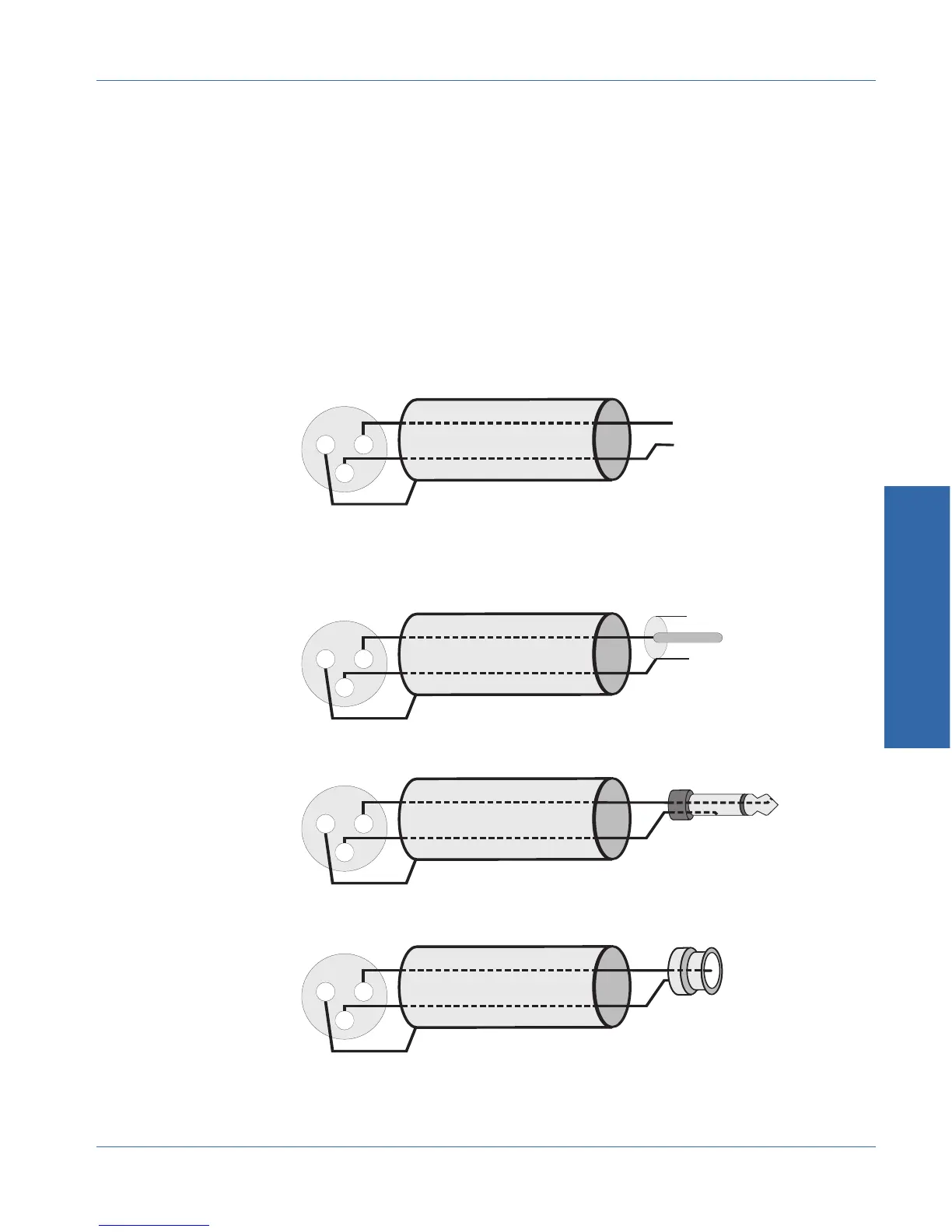

Figure 3-17. Preferred unbalanced cable connections
3 Operation
Operational Overview Input and Output Cables
ATS-1 Access User's Manual 3-33
