In some cases, it may be necessary to use single-conductor cable to
adapt to unbalanced devices. This may be because a single-conductor
cable is already molded to the desired unbalanced connector or
because single-conductor cable is already installed in the testing
environment.
These cables are considerably more susceptible to interference and
grounding problems than the two-conductor cables shown on the
previous page. The two-conductor arrangements should be used
whenever possible.
1 2
3
XLR Male
or Female
RCA/Phono Plug
Single Conductor shielded cable
1 2
3
XLR Male
or Female
Single Conductor shielded cable
Sleeve
Tip
1/4" Phone Plug
1 2
3
XLR Male
or Female
Single Conductor shielded cable
BNC Connector
1 2
3
XLR Male
or Female
Single Conductor shielded cable
To Signal Conductor
To Ground
Examples:

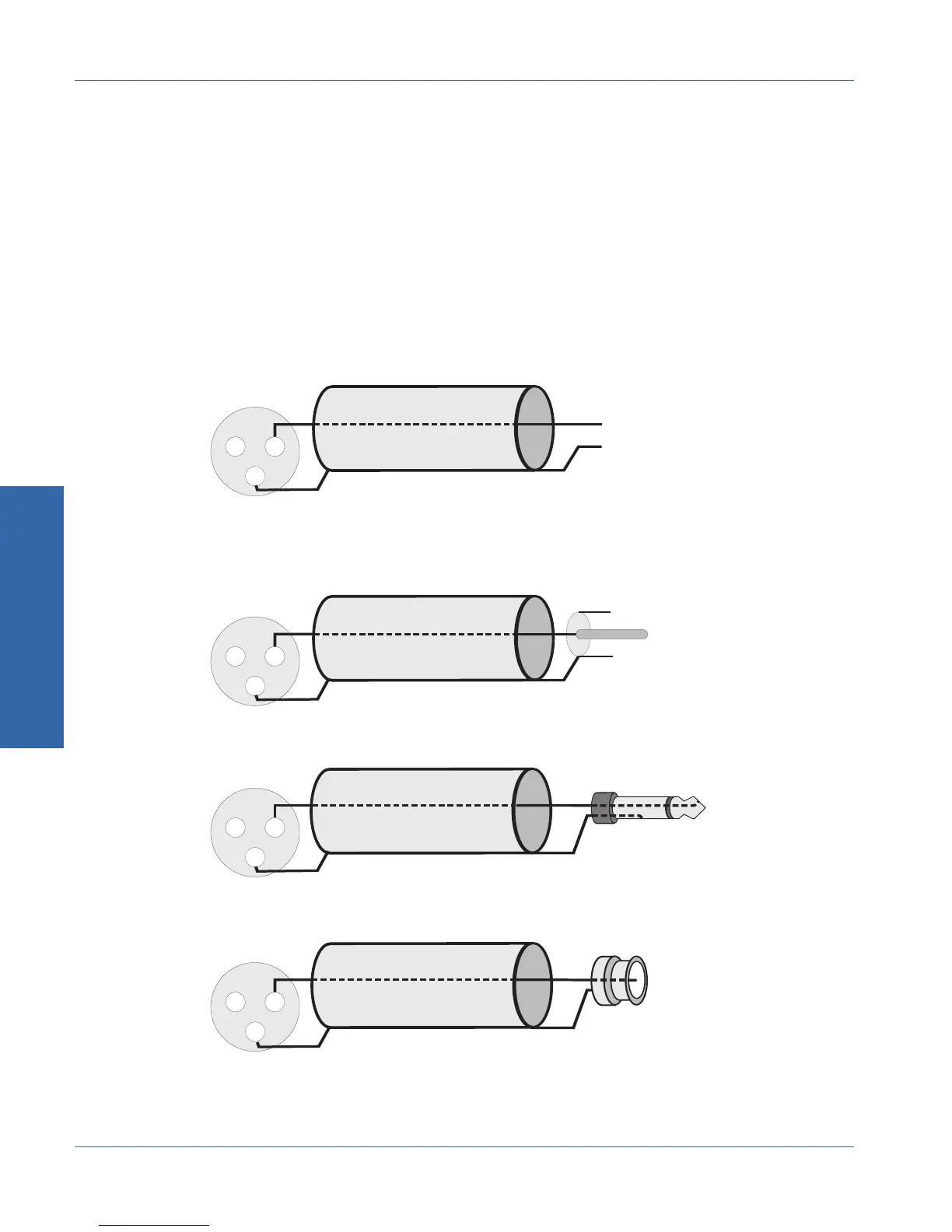

Figure 3-18. Unbalanced connections using single-conductor cable
3 Operation
Input and Output Cables Operational Overview
3-34 ATS-1 Access User's Manual
