Audio Precision ATS-1 Access User Manual

Self Test
The ATS-1 Access has the capability of performing a functional self
test. This can be run periodically to make certain that your instrument
is operating properly.
Before running the self test, let the instrument warm up for at least an
hour. The ATS-1 Access performs to specifications only after a
sufficient warm-up period, and some of the tests may fail if the
instrument is not fully warmed up.
To run the self test, you must first go to the Main Panel and select the
AC Mains function. To do this, perform the following steps:
Then press the lower left soft key. The following panel should appear:
1
2
Press the 'AC MAINS' button.
This will select the AC MAINS
measurement mode.
If you do not see this
screen, press 'PANELS'
until it appears.
ATS- Access Audio Test System
.
.
10
AMPLITUDE
DEC
+10dB
INC
-10dB
FREQUENCY
-10
INC
x
DEC
dBr ZERO
FUNCTION
LEVEL
AMPL
NOISE
THD+N
SINAD
PHASE
RATIO
XTALK
GEN
LOAD
IMD
W+F
AC MAINS
CHECK
GEN
AB
INPUT
INSTRUMENT MODE
OUTPUT
A
MUTE
B
PRINT
PANELS BARGRAPH SWEEP
MONITOR
CONTRAST
RECALL
SAVE
POWER
ADDR
REM
SRQ
CONNECT NEGATIVE TERMINAL
TO GND TERMINAL FOR
NON-FLOATING APPLICATIONS
GND
AB
AB
ANALYZER INTPUTS
GENERATOR OUTPUTS
CAT II
350Vpk MAX
!
GND
ATS-BNC
I
O

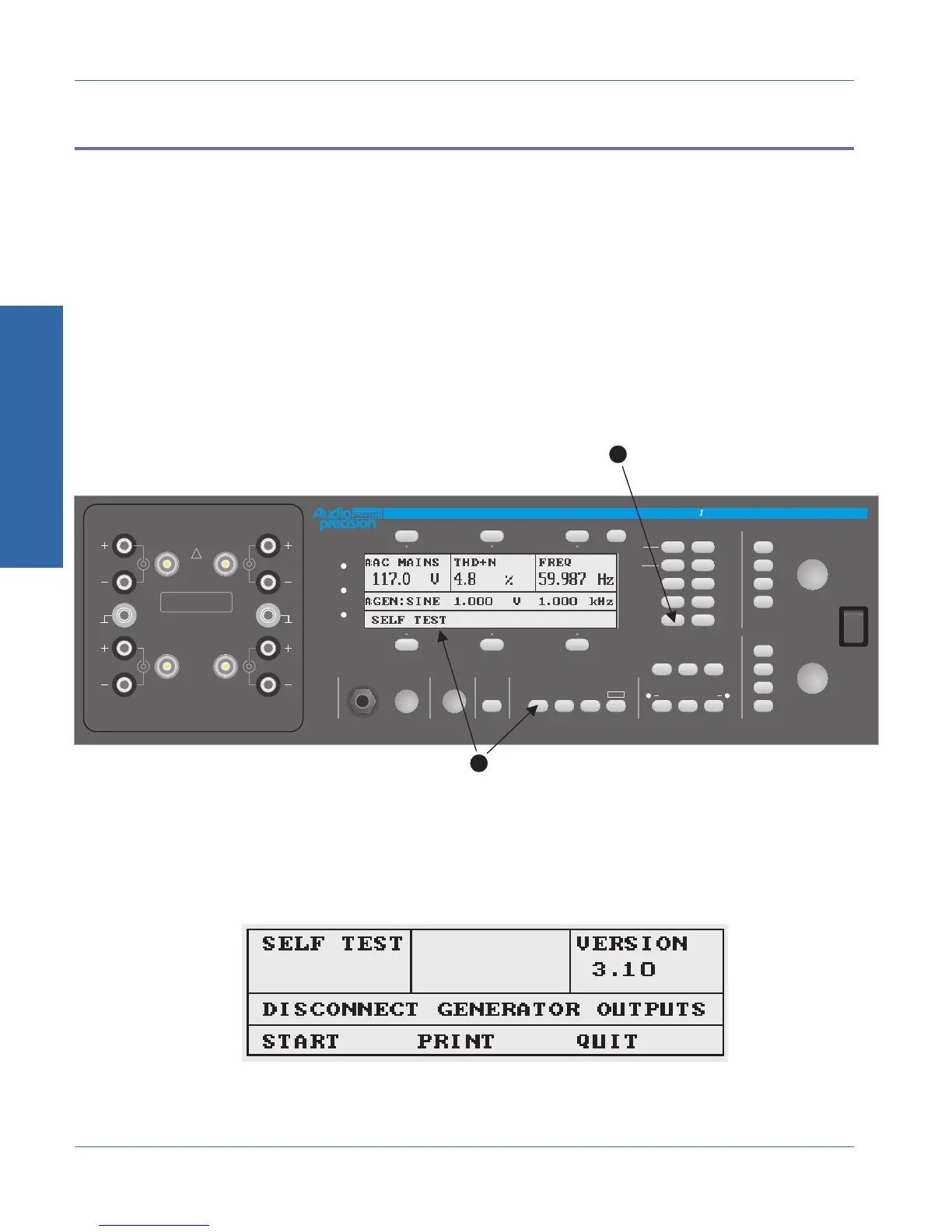

Figure 2-2. Steps to the main panel in AC Mains function
Figure 2-3. Self-test panel
2 Getting Started
Self Test Getting Started
2-4 ATS-1 Access User's Manual
