Input and Output Cables
Connecting the ATS-1 Access to a device under test may require
construction of special cables. This section describes proper wiring of
cable connections and gives examples of cables for common connector
applications. In some cases, adapters may be used to adapt one
connector type to another, but the electrical connections should follow
the examples shown in this section.
BNC Connector Panel
The generator can be configured to deliver a balanced or unbalanced
output to the connector panel. The BNC connector panel, the standard
configuration on the ATS-1 Access, has floating BNC connectors (see
diagrams below). The preferred configuration is a balanced output
with a two-conductor shielded cable as shown in Figure 3-15.
2 Conductor shielded cable
Shield not connected this end
BNC Connector
+
--
-
GND
GND
Typical BNC Panel (partial)
+

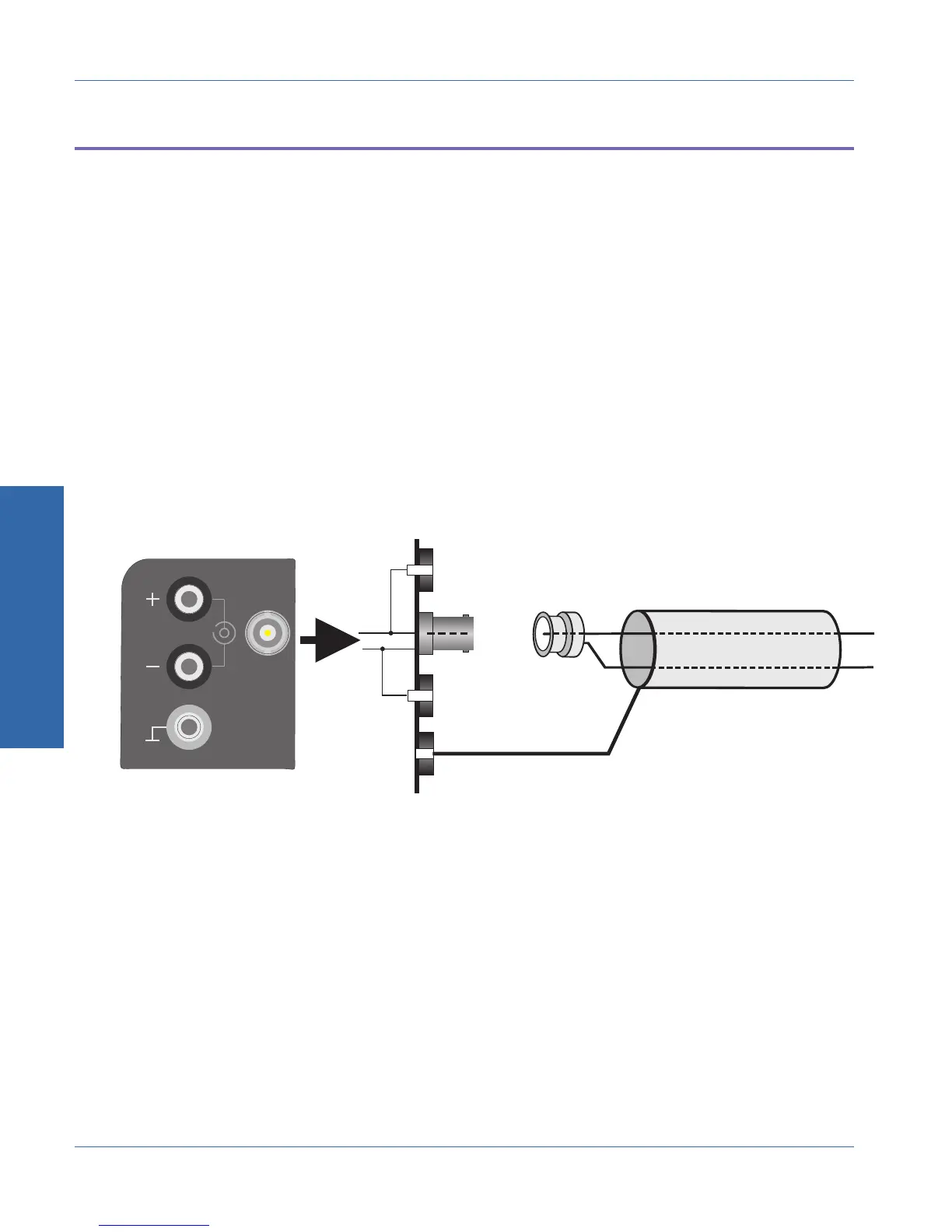

Figure 3-14. Preferred cable connections with BNC connector panel
3 Operation
Input and Output Cables Operational Overview
3-30 ATS-1 Access User's Manual
