Operational Overview
Front Panel Controls and Connectors
The ATS-1 Access front panel controls are grouped as shown in Figure
3-1. Each group is summarized in the following subsections.
FUNCTION Keys
The FUNCTION keys control the internal configuration of the
instrument. Each FUNCTION key corresponds to a particular
measurement function, such as Amplitude, THD+N, etc. A few of the
FUNCTION keys will invoke a second measurement function with a
second press of the key.
The FUNCTION keys and measurement functions are discussed in
detail in the section on controlling the Analyzer. See page 3-15.
AMPLITUDE
CONTROLS
ATS- Access Audio Test System
.
.
10
AMPLITUDE
DEC
+10dB
INC
-10dB
FREQUENCY
-10
INC
x
DEC
dBr ZERO
FUNCTION
LEVEL
AMPL
NOISE
THD+N
SINAD
PHASE
RATIO
XTALK
GEN
LOAD
IMD
W+F
AC MAINS
CHECK
GEN
AB
INPUT
INSTRUMENT MODE
OUTPUT
A
MUTE
B
PRINT
PANELS BARGRAPH SWEEP
MONITOR
CONTRAST
RECALL
SAVE
POWER
ADDR
REM
SRQ
CONNECT NEGATIVE TERMINAL
TO GND TERMINAL FOR
NON-FLOATING APPLICATIONS
GND
AB
AB
ANALYZER INTPUTS
GENERATOR OUTPUTS
CAT II
350Vpk MAX
!
GND
ATS-BNC
I
O
SOFT KEYS
FUNCTION
KEYS
GPIB STATUS
INDICATORS
LCD
DISPLAY
MONITOR
CONTROLS
CONTRAST
CONTROL
RECALL/SAVE
KEY
INSTRUMENT
MODE KEYS
OUTPUT
CONTROL
KEYS
INPUT
CONTROL
KEYS
FREQUENCY
CONTROLS
dBr ZERO
KEY
POWER
SWITCH

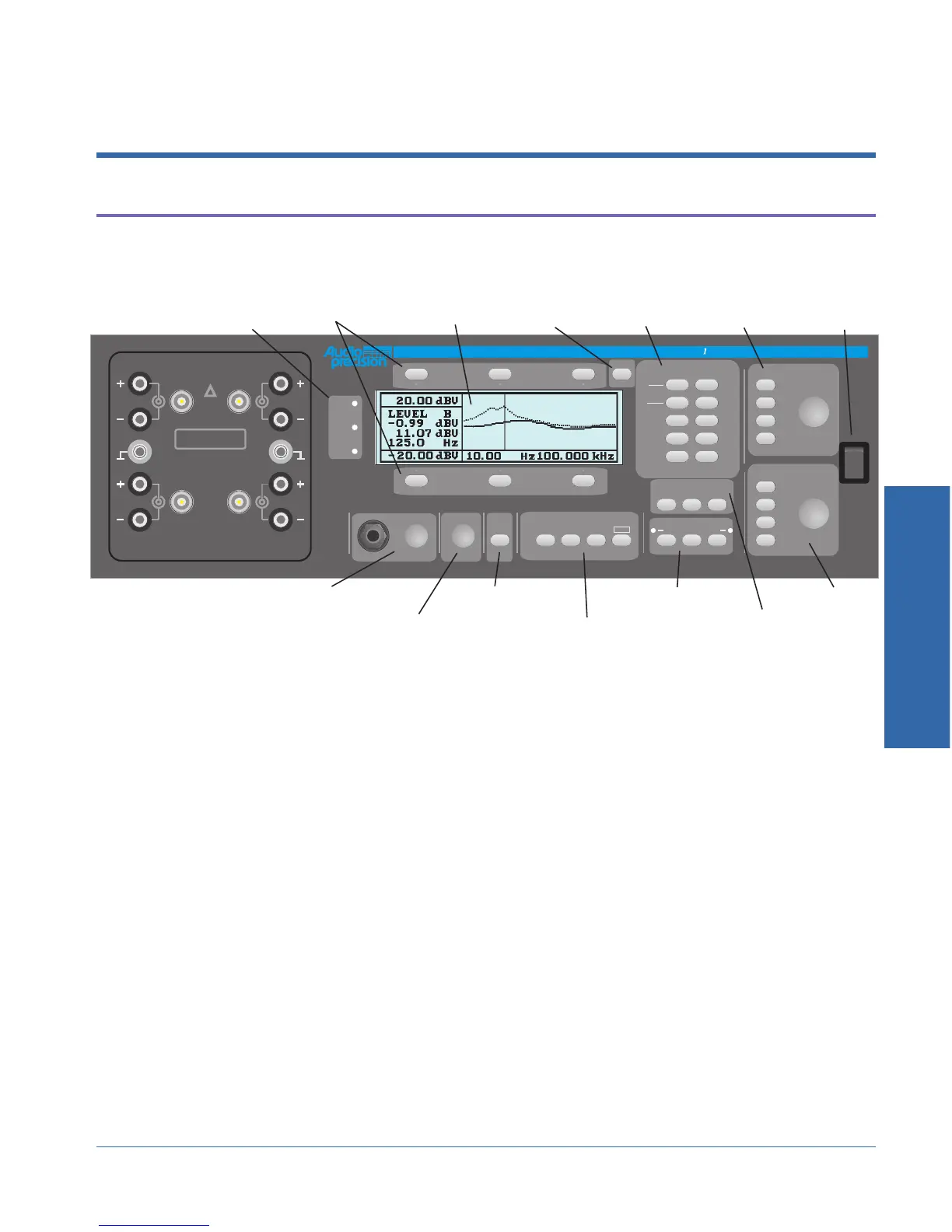

Figure 3-1. ATS-1 Access front panel key groups
3 Operation
ATS-1 Access User's Manual 3-1
